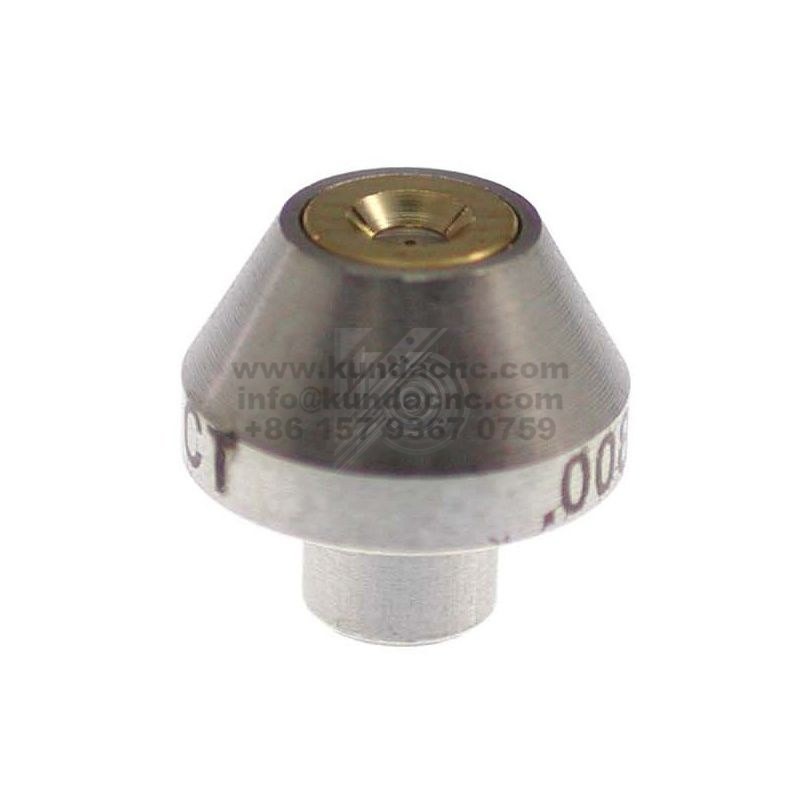

Short Diamond Orifice 20466590 New Waterjet Parts Supplier

The Short Diamond Orifice 20466590 is a premium-quality waterjet cutting nozzle engineered for precision, durability, and stability in ultra-high-pressure applications. As a key component of the Waterjet Cutting Head, it converts high-pressure water—up to 60,000 PSI (4,100 bar)—into a fine, focused jet stream capable of cutting metals, stone, glass, ceramics, and composites with exceptional accuracy.

Manufactured from synthetic industrial diamond, the 20466590 orifice offers extreme hardness, superior wear resistance, and excellent long-term stability. The short-body design ensures compact installation, reduced water path distance, and improved energy efficiency—making it ideal for systems that require rapid response and consistent jet performance.

This orifice is fully compatible with KMT, FLOW, OMAX, BFT, and WSI waterjet systems and is widely used for both OEM replacement and maintenance rebuilds. Its precision alignment guarantees a perfectly centered water stream, minimizing turbulence and ensuring a clean, smooth cut edge with minimal taper.

Key Features:
OEM-grade Short Diamond Orifice for waterjet cutting heads
Made from industrial synthetic diamond for maximum durability
Short design improves energy transfer and water jet focus
Handles up to 60K PSI (4,100 bar) working pressure
Compatible with KMT, FLOW, OMAX, BFT, and WSI systems
Resistant to heat, erosion, and vibration
Provides stable cutting performance and extended service life
