Sealing Cone CP020071/593 Good Price Water Jet Parts In Stock

Short Description:

Sealing Cone
5102203
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.01 kg
Working Pressure: 4137 bar
Material: Stainless Steel

INQUIRY

Details

Sealing Cone CP020071/593 Good Price Water Jet Parts In Stock

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

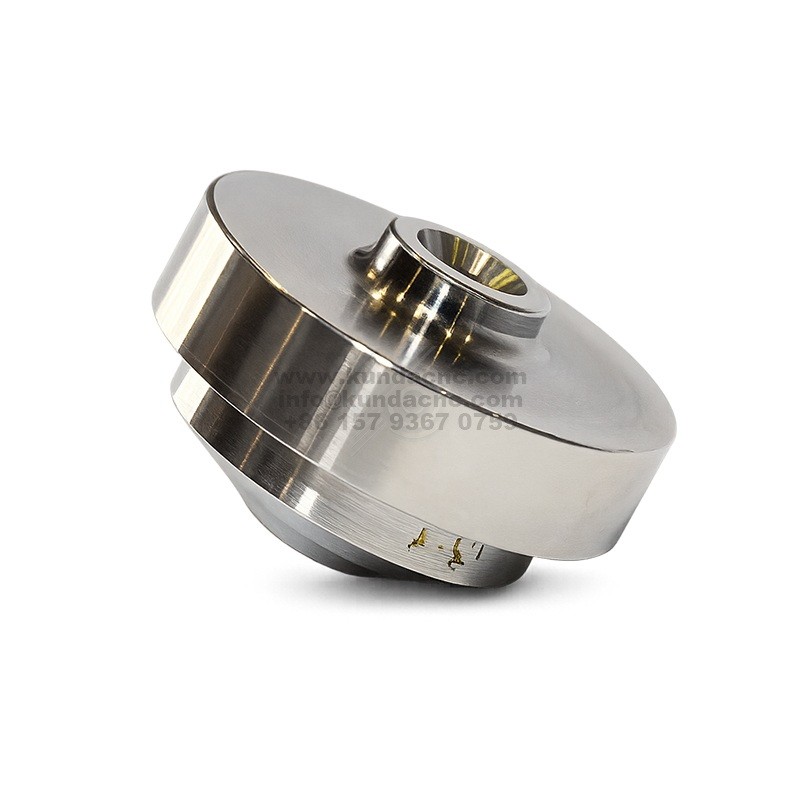

The Sealing Cone CP020071/593 is a critical sealing component in the high-pressure check valve of a waterjet intensifier. It closely mates with the valve ball and seat, achieving a precise seal under ultra-high pressure conditions through its conical structure, ensuring one-way water flow and preventing backflow. The wear resistance and sealing performance of this component directly impact the efficiency and service life of the check valve.

Function: It forms a conical sealing interface with the valve ball and seat, preventing the backflow of high-pressure water.
Applicable Location: Installed within the high-pressure check valve assembly of a waterjet intensifier.
Material: Made of high-strength tungsten carbide or wear-resistant alloy, it offers high-pressure and erosion resistance, and a long service life.
Replacement Period: This is a typical consumable part and should be replaced regularly based on operating time, water quality, and maintenance schedule to maintain a good seal.

A high-quality Sealing Cone CP020071/593 enhances the sealing stability of the high-pressure check valve and reduces the risk of leakage, making it a critical component for ensuring the long-term and efficient operation of a Water Jet Cutting Machine.
