Seal Head Gland Nut 05116777 Waterjet Parts

Short Description:

Parts:05116777
Seal Head,Gland Nut

Other references: 10087, 11319, 30018, 5000115
Article number: 10087
Net Weight: 181 g

INQUIRY

Details

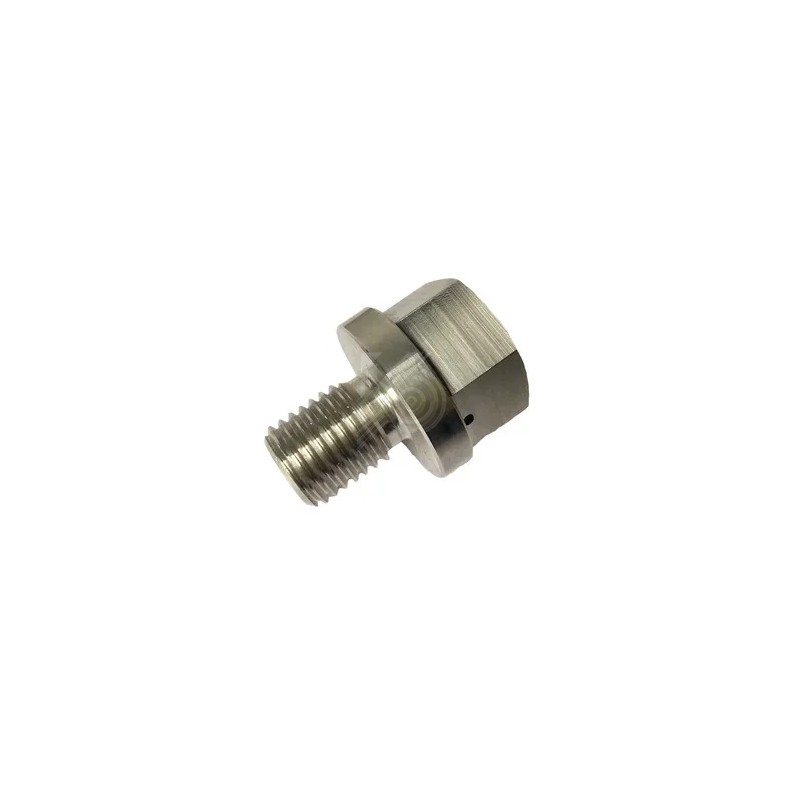

Seal Head Gland Nut 05116777 Waterjet Parts

KMT Waterjet's 05116777 3HAC022379-001-Axis-2-3-For-Robot-Water-Jet-Cutting-Machine-Parts-In-Stock-p.html target='_blank'>Sealing Head Gland Nut is a key component for high-pressure Waterjet Pumps with .875-inch plungers and 60,000 PSI working pressure. The gland is used to seal the connection between the plunger and the sealing head, ensuring the sealing and stability of the hydraulic system.

KMT part number: 05116777
Reference model: 10107910, 1-11319, 5000115
Applicable pump types: SL-IV, SL-V Classic, NEOline 40HP, SL-V 50HP, etc., with a power range of 15–60 horsepower
Working pressure: Up to 60,000 PSI (approximately 4,137 bar)
Plunger diameter: .875 inches (approximately 22.2 mm)
Material: Stainless steel
Function: Seal the connection between the plunger and the sealing head to prevent hydraulic oil leakage and ensure stable system operation

Installation and maintenance recommendations
Clean working environment: Before removing and installing the gland, ensure that the working area is clean to prevent foreign matter from entering the system.
Inspect seals: Before installing a new gland, check the wear of all related seals and replace them if necessary.
Use original parts: To ensure system performance and safety, it is recommended to use KMT original parts for repairs.
Regular maintenance: Regularly check the sealing performance of the sealing head gland and replace worn parts in time to extend the service life of the equipment.
