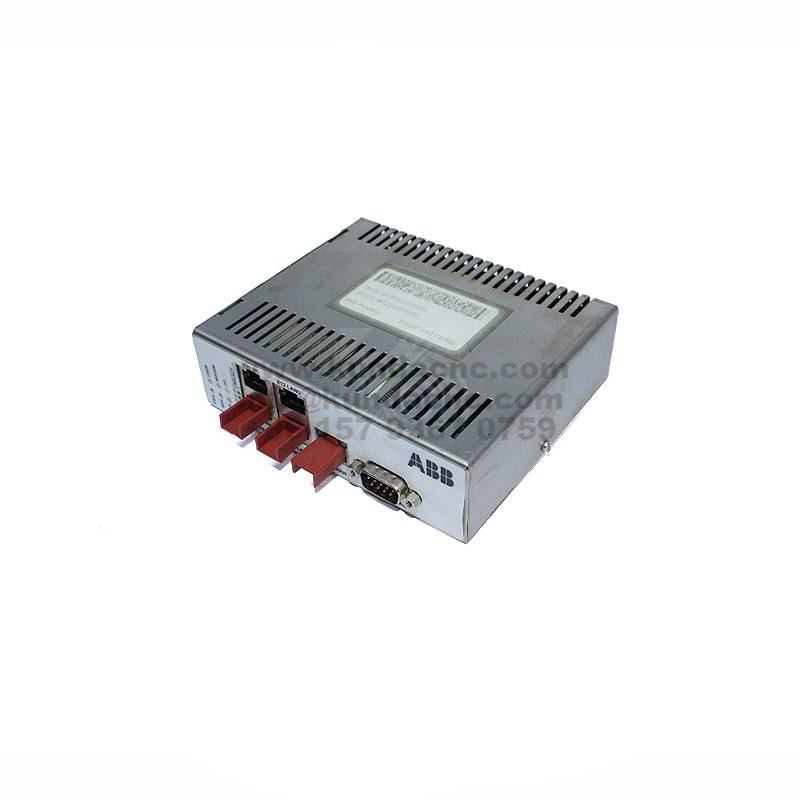

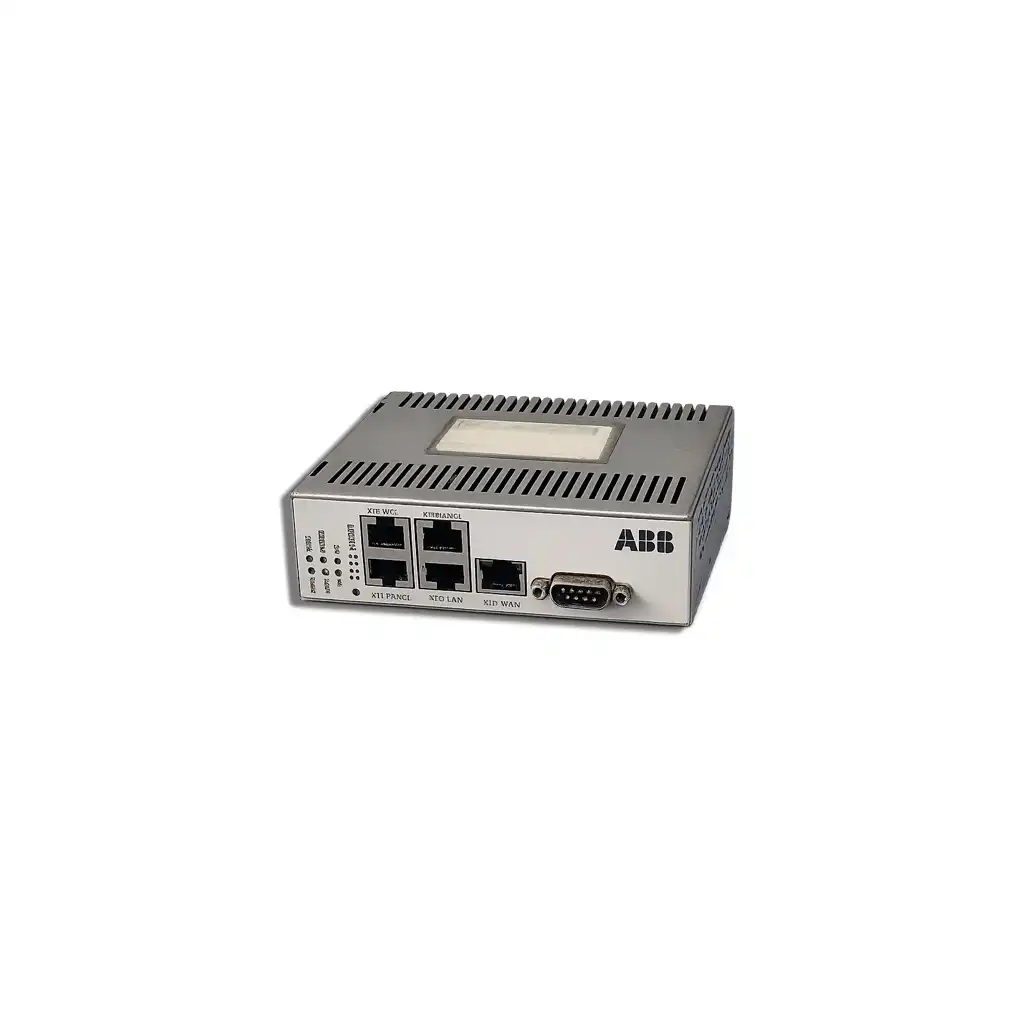

RS box DSQC 680 3HAC030439-001 New Robot Waterjet Parts

The RS Box DSQC 680 (3HAC030439-001) is a robust communication and signal interface module developed by ABB for its IRC5 industrial robot controllers. It serves as a key link between the controller’s internal computer systems and external devices — managing serial communication, signal routing, and safety interconnections with precision and reliability.

Designed for use in demanding automation environments, the DSQC 680 ensures stable data transmission, high electrical isolation, and interference-free communication between the robot controller, axis computer, and peripheral components such as sensors, actuators, and field devices. It’s an essential module for maintaining seamless coordination between motion control and process management within ABB robotic systems.

Key Features:
Model: DSQC 680 (3HAC030439-001)
Type: RS Box / Serial Communication Interface Module
Provides serial and digital communication channels for IRC5 controllers
Ensures stable signal routing between main and auxiliary modules
High immunity to electrical noise, voltage surges, and EMI interference
Built with industrial-grade electronic components for long-term reliability
Fully compatible with ABB IRC5 controller architecture
Easy installation within ABB control cabinets
Designed for continuous operation in harsh factory conditions

Applications:
ABB IRC5 industrial robots used in metal fabrication, waterjet cutting, CNC machining, and assembly
Communication interface between controller, I/O modules, servo drives, and external sensors
Integral component in robot controller rebuilds, upgrades, and replacements

Technical Specifications (typical):
Communication Ports: RS-series serial interfaces and digital I/O
Voltage Supply: 24V DC (standard control voltage)
Signal Isolation: Optical and galvanic protection for all communication lines
Cooling: Passive convection within controller housing
Mounting: ABB standard rack/cabinet installation
Operating Temperature: 0°C to +55°C
Certification: CE, RoHS compliant
