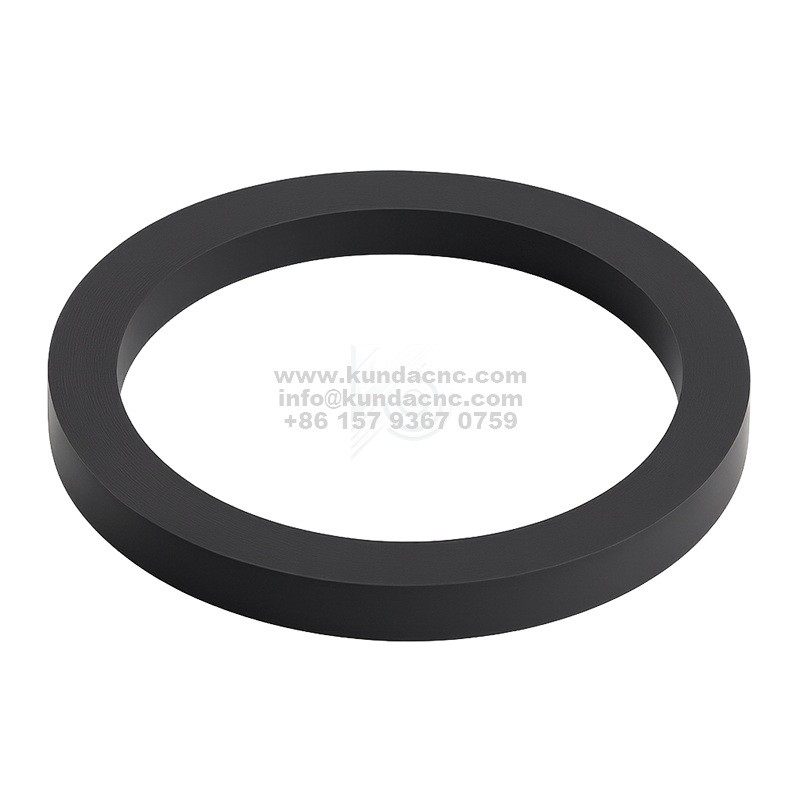

Quad Ring 9704521/220 Waterjet Cutting Machine Parts For Sale

Short Description:

Quad Ring
1-18269
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA

INQUIRY

Details

Quad Ring 9704521/220 Water Jet Cutting Machine Parts For Sale

Part Number	Alternative models	Description
1-16386	CP022015/527	Back Ring
1-18266	K016/660	Ball, Dia. 6
1-16390	CP022042/593	Lens
1-16395	CP022046/593	Valve Seat
1-16388	CP022010/527	Bearing Bush
1-18264	OR0043024/151	O-Ring, 4.3 x 2.4
1-18263	WJ070009/150	HP Gasket
1-18293	CP022100/220	HP Seal Kit
1-16393	CP022040/591	Valve Body
1-16389	CP022009/779	HP Cylinder
1-16391	XST17/220	Rod Sealing
1-18292		Center Section Rebuild Kit
1-18287	CP022066/220	Plunger Complete
1-18291	CP022109/844	Union Suction Side Complete
1-18289	CP022047/844	Union Pressure Side Complete
1-18280	CP022043/844	Union Suction Side
1-18281	CP022044/844	Union Pressure Side
1-18282	XF35/220	Rod Wear Ring
1-18269	9704521/220	Quad Ring
1-16387	CP022012/780	Back Ring

The Quad Ring 9704521/220 is a highly effective sealing component commonly used in waterjet intensifiers and high-pressure systems. Compared to traditional O-rings, its four-lip design provides a larger contact surface and superior sealing performance, maintaining stability and reliability under high-pressure and high-frequency reciprocating conditions, reducing the risk of leakage.

Function: Provides dynamic and static sealing for high-pressure systems, preventing high-pressure water leakage during operation.
Applicable Applications: Widely used in intensifier high-pressure cylinders, check valves, and high-pressure pipeline connections.
Material: Made of high-pressure and wear-resistant synthetic rubber or polymer with excellent compression set resistance.
Replacement Period: As a typical consumable part, it should be replaced regularly based on operating time and maintenance schedule to maintain system sealing reliability.

High-quality Quad Ring 9704521/220 significantly improves the operational stability of waterjet cutting machines in high-pressure environments, reduces maintenance costs, and is a critical component for ensuring safe and efficient system operation.
