Mixing Tube Industria Abrasive Waterjet Mixing Focusing Tube Manufacturer

Short Description:

Mixing Tube
ID:0.030"-0.76mm/0.040"-1.02mm/0.050"-1.27mm/0.060"-1.52mm/0.070"-1.78mm
OD:6.35mm/7.14mm/9.47mm
Length: 76mm（3 inch）/101.6mm（4 inch）/152.4mm（6 inch）
Material: Stainless Steel, Tungsten Carbide
Minimum Order Quantity: 1 pieces

INQUIRY

Details

Industrial Abrasive Waterjet Mixing Tube Manufacturer

Mixing Tube Industria Abrasive Waterjet Mixing <a href=https://www.kundacnc.com/Focusing-Nozzle-High-Efficiency-Waterjet-Nozzle-Mixing-Tube-Price-For-Cnc-Cutting-Machine-p.html target='_blank'>Focusing Tube</a> Manufacturer

Product Introduction

The mixing tube, also called a Waterjet Focusing Tube, is an important wear part in abrasive Waterjet Cutting Heads. It guides the high-pressure water and abrasive into a concentrated cutting jet. A precise mixing tube helps improve cutting speed, edge quality, abrasive efficiency, and cutting stability.

KUNDA supplies Waterjet Mixing Tubes in different sizes and part numbers. Custom specifications, OEM supply, private label service, and bulk orders are available for machine users, distributors, repair companies, and equipment manufacturers.

Standard Sizes

Outer Diameter	Inner Diameter	Length
6.35	0.76	76.2
6.35	1.02	76.2
6.35	1.02	101.6
7.14	0.76	76.2
7.14	1.02	76.2
7.14	0.76	101.6
7.14	1.02	101.6
9.47	0.76	76.2
9.47	0.76	101.6

Available Part Numbers

Part Number	Details
20457255	Mixing Tube 0.030"
20457256	Mixing Tube 0.040"
20457257	Mixing Tube 0.050"
20457258	Mixing Tube 0.060"
20457259	Mixing Tube 0.070"
100000-1	Mixing Tube 0.030"
100001-1	Mixing Tube 0.040"
100002-1	Mixing Tube 0.050"
100003-1	Mixing Tube 0.060"
303287	Mixing Tube 0.030"
303288	Mixing Tube 0.040"
303289	Mixing Tube 0.050"
303290	Mixing Tube 0.060"
4100601	Mixing Tube 0.030"
4100602	Mixing Tube 0.040"
4100603	Mixing Tube 0.050"
5200601	Mixing Tube
5200602	Mixing Tube
5200603	Mixing Tube

Why Mixing Tube Quality Matters

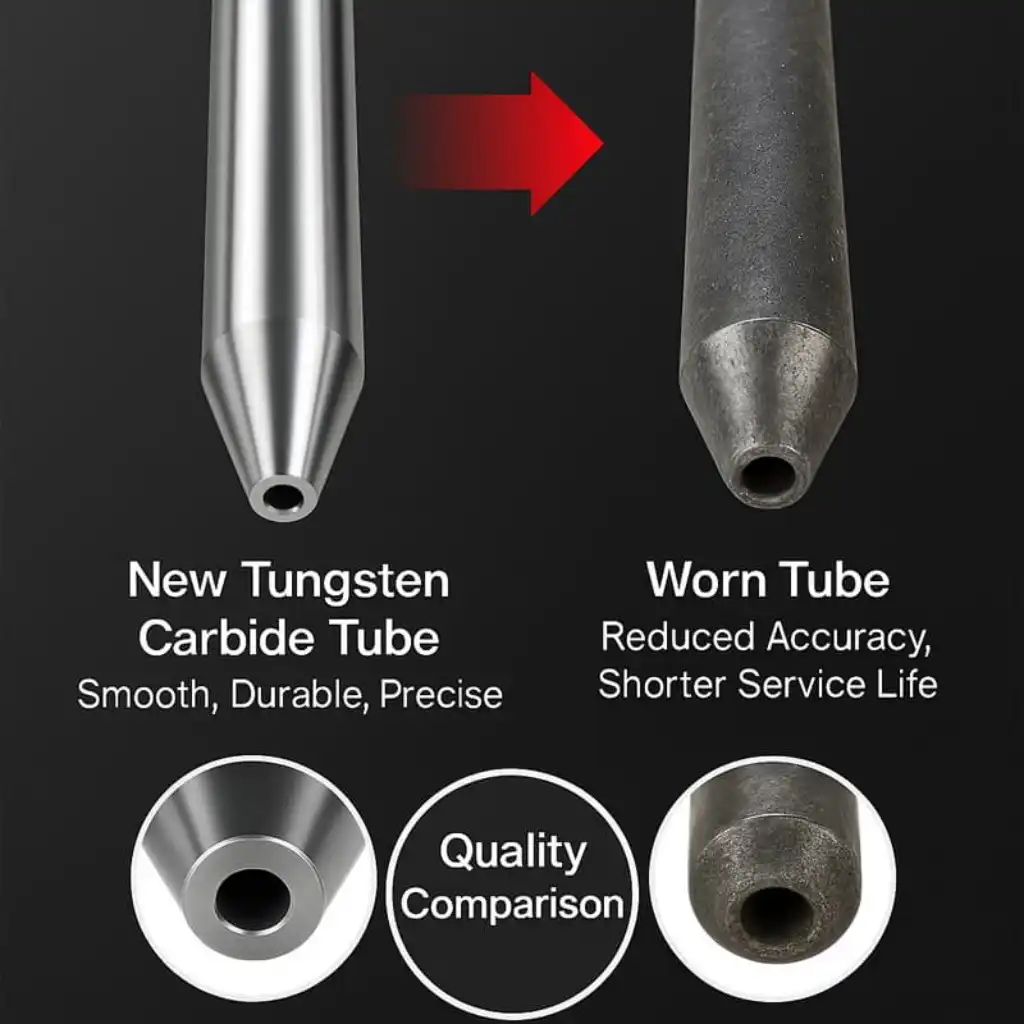

The mixing tube directly affects the final abrasive cutting jet. If the inner bore wears unevenly, the cutting stream may become scattered, causing rough edges, lower accuracy, slower cutting speed, and higher abrasive consumption.

Wear-Resistant Construction

During cutting, abrasive particles pass through the tube at high speed. A wear-resistant mixing tube helps maintain a stable bore shape for longer use, reducing replacement frequency and machine downtime.

For Abrasive Waterjet Cutting Systems

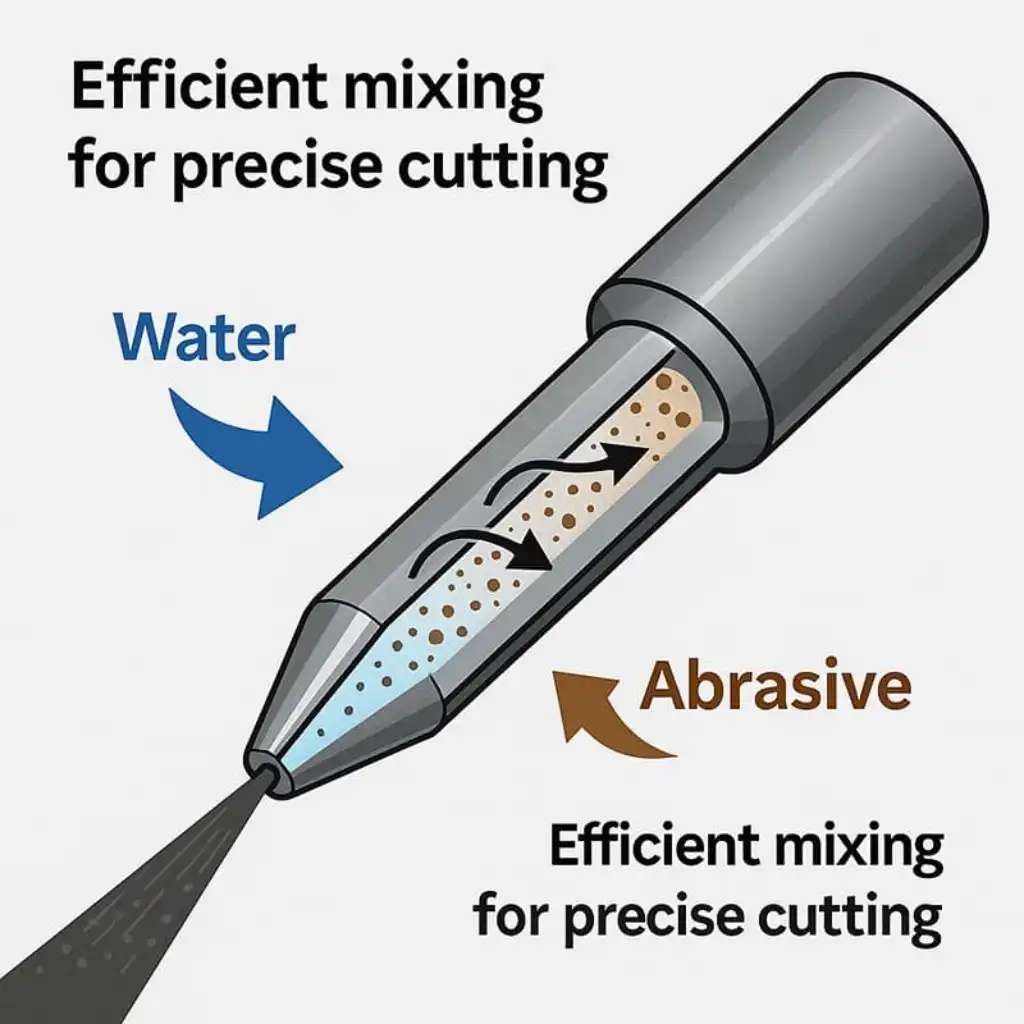

This mixing tube works with the orifice and mixing chamber to form a stable abrasive stream. It is suitable for CNC Waterjet Machines, abrasive waterjet cutting systems, robotic Waterjet Equipment, and daily replacement use.

Custom Mixing Tube Options

KUNDA can provide different lengths, outer diameters, inner diameters, bore sizes, and part number options according to customer requirements. OEM branding, custom packaging, private label service, and bulk supply are available.

Suitable Applications

These waterjet mixing tubes can be used for stainless steel, carbon steel, aluminum, titanium, glass, ceramic, marble, granite, composite materials, rubber, foam, and engineering plastics.

Mixing Tube Industria Abrasive Waterjet Mixing Focusing Tube Manufacturer

Why Choose KUNDA

KUNDA supplies Waterjet Cutting Machines, cutting head parts, pump parts, mixing tubes, focusing tubes, orifices, high-pressure tubing, accumulators, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce downtime, and keep waterjet systems running smoothly.
