Major Maintenance Kit 712101-2 Waterjet Parts
Major Maintenance Kit 712101-2 Waterjet Parts
|
Name |
Qty |
Description |
|
011051-1 |
3 |
SEAL;DYNAMIC;EAGLE;5/16 ID;HDS WHITE |
|
A-00621-33 |
3 |
SEAL;ROD;NA;DISOGRIN;7/16 ID;11/16 INCH OD;1/8 INCH |
|
011042-1 |
3 |
POPPET;INLET;CHECK VALVE;EAGLE;STAINLESS STEEL |
|
011040-1 |
3 |
GUIDE;NA;OUTLET POPPET;CHECK VALVE;EAGLE;NA |
|
011039-1 |
3 |
POPPET;OUTLET;CHECK VALVE;HYPLEX;STAINLESS STEEL |
|
011041-1 |
3 |

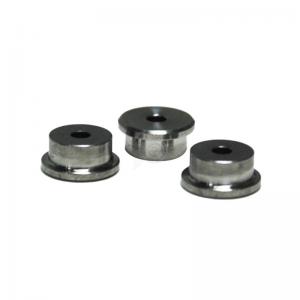

SEAT;OUTLET;POPPET;EAGLE;STAINLESS STEEL |
|
042145-1 |
1 |
POPPET/SEAT ASSEMBLY;PRESSURE CONTROL VALVE;HYPLEX HYBRID |
|
A-0275-033 |
3 |
O-RING;BUNA-N;70 (SHORE A);-033 |
|
A-0275-025 |
6 |
O-RING;BUNA-N;70 (SHORE A);-025 |
|
013933-1 |
3 |
SEAL CARRIER ASSEMBLY;NA;EAGLE;55 KSI |
|
011043-1 |
3 |
SEAL;STATIC;END CAP;1 ID;STAINLESS STEEL |
|
013932-1 |
3 |
CYLINDER;HIGH PRESSURE;NA;EAGLE;55 KSI |
|
013383-1 |
3 |
BODY;CHECK VALVE;EAGLE;NA;55 KSI;NA |
|
011350-1 |
3 |
SLEEVE;NA;FILLER TUBE;EAGLE |
|
A-00720-31 |
3 |
SEAL;ROD;NA;NITRILE;5/16 ID;9/16 OD;1/8 INCH |
|
A-9223 |
3 |
SPRING;COMPRESSION;STAINLESS STEEL;NONE;.27 ID;.322 OD;.40 INCH;4.0 LBS/IN;CLOSED & GROUND |
|
A-0290-010 |
3 |
O-RING;DISOGRIN;HIGH RESILIENCY;-010 |
|
A-0275-015 |
3 |
O-RING;BUNA-N;70 (SHORE A);-015 |
|
006760-1 |
3 |
BACK-UP RING;MANIFOLD;COUGAR;LSP BLUE |
|
014172-1 |
3 |
SPACER;RING;TIE ROD;HYPLEX;UHMW;NA |
|
A-4689 |
1 |
GREASE;FOOD GRADE;1/4 OUNCE TUBE |
|
SB-0170 |
1 |
SB;INSTALLING HYPLEX MAJOR MAINT. KIT |
|
A-20386-1 |
2 |
LUBRICANT;ANTI-SEIZE;NA;5 GRAMS |
|
012306-DWG |
1 |
HIGH PRESSURE ASSEMBLY;55 KSI HYPLEX;NA;NA |
|
A-12219 |
3 |
SPRING;COMPRESSION;STAINLESS STEEL;NONE;.352 ID;.42 OD;.81 INCH;3.7 LBS/IN;CLOSED & GROUND |
|
A-0265-062 |
3 |
RETAINING RING;INTERNAL;NA;NA;STAINLESS STEEL;NA;5/8 INCH |
|
A-0275-119 |
1 |
O-RING;BUNA-N;70 (SHORE A);-119 |
|
A-0275-120 |
1 |
O-RING;BUNA-N;70 (SHORE A);-120 |
|
011045-1 |
3 |

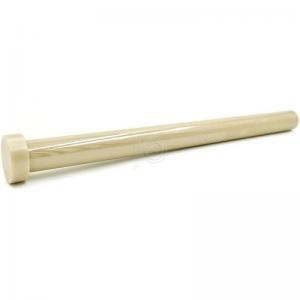

PLUNGER ASSEMBLY;UHP;CERAMIC;EAGLE |
|
A-12217 |
3 |
SPRING;COMPRESSION;STAINLESS STEEL;NONE;.362 ID;.48 OD;.75 INCH;64.8 LBS/IN;CLOSED & GROUND |
|
A-12218 |
3 |
SPRING;COMPRESSION;STAINLESS STEEL;NONE;.336 ID;.48 OD;.88 INCH;123.7 LBS/IN;CLOSED & GROUND |
The 712101-2 Major Maintenance Kit is a comprehensive solution designed to ensure optimal performance and longevity for your machinery. This high-quality kit is ideal for routine maintenance and repair, minimizing downtime and maximizing operational efficiency. It includes all essential components, such as seals, bearings, filters, gaskets, and other critical parts that are necessary for thorough maintenance of your equipment.
