Inlet Poppet Housing 1-11232 Flow Waterjet Parts Supplier
Inlet Poppet Housing 1-11232 Flow Waterjet Parts Supplier
| Part Number | Name |
|
014155-10 |
Orifice |
|
014201-9 |
ECL Ruby Orifice |
|
015849-5 |
60K Diamond Orifice |
|
014194-20-30 |
Mixing Tube |
|
1000003-15-40 |
Premium Mixing Tube |
|
014241-1 |
Mixing Tube Nut |
|
014197-1 |
ECL Mixing Chamber Assembly |
|
020694-1 |
Mixing Chamber Assembly |
|
014660-1 |
87K On/Off Valve Assembly |
|
014988-1 |
On/Off Valve Seal Kit |
|
019520-1 |
Cutting Head Clamp Assembly |
|
711933-1 |
Blast Disk |
|
012952-1 |
3/8 HP Insert（Double Cone） |
|
012252-1 |
100K Plug |
|
015093-1 |
1/4 Swivel Repair Kit |
|
049357-1 |
Swivel Body |
|
20452968 |
Cross |
|
20452971 |
Tee |
|
20453115 |
Elbow |
|
040015-1 |
Intensifier Seal Carrier |
|
020080-1 |
Low Pressure Piston |
|
018020-1 |
Ceramic Plunger Assembly |
|
001197-1 |
40K Seal Kit |
|
013383-1 |
Check Valve Body |
|
013051-1 |
Bleed Down Seat |
|
019309-1 |
Bleed Down Valve Assembly |
|
020323-1 |
Water Manifold |
|
1-11679-xxx |
O-ring |
|
1-11680-xxx |
Backup Ring |
|
B-5078-1 |
High Pressure Collar |
|
B-8428-1 |
Bleed Down Valve Piston |

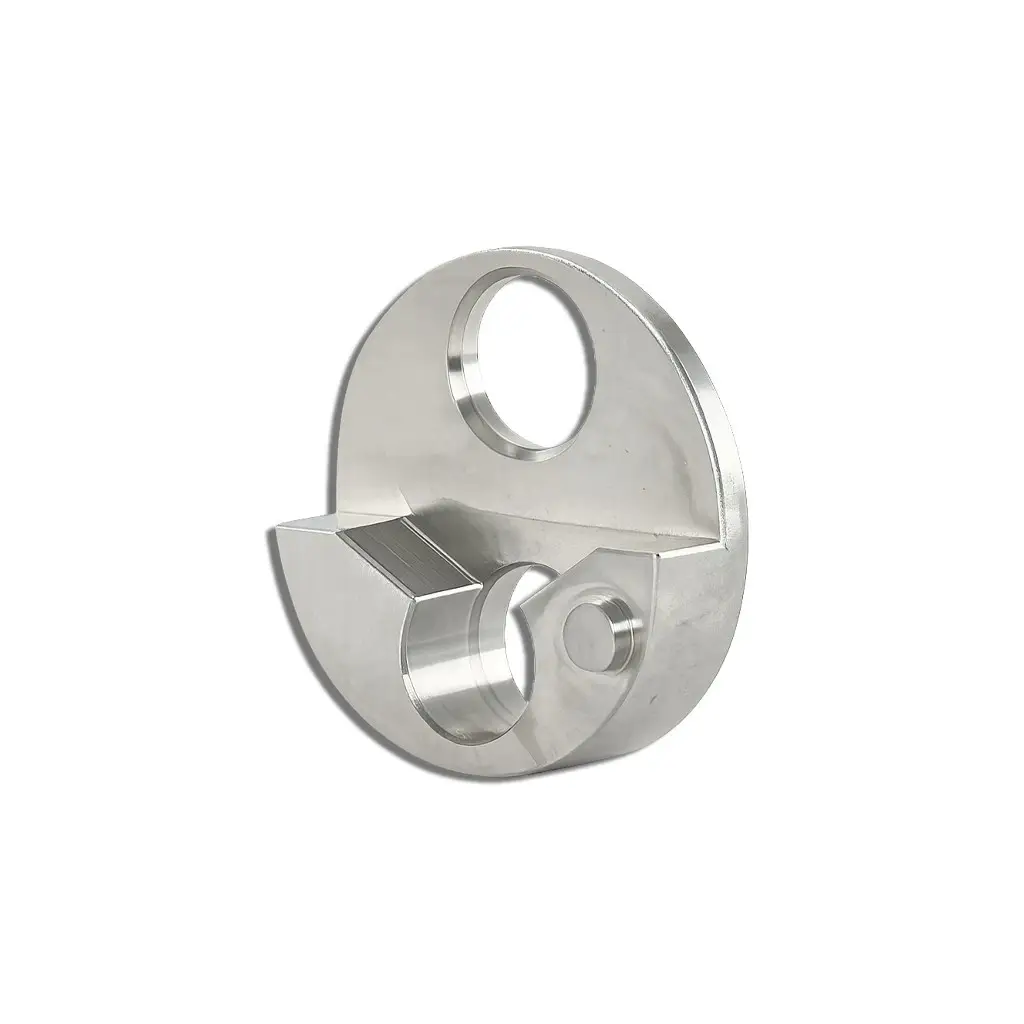

The inlet lift valve body 1-11232 is a critical structural component of the inlet check valve assembly in a Waterjet Booster Pump system. Its primary function is to securely mount and support the inlet lift valve (poppet), thereby ensuring that water flows steadily and unidirectionally into the high-pressure system.
This component helps maintain proper alignment of the poppet and associated sealing elements, thereby enhancing sealing performance and preventing pressure loss caused by backflow or unstable valve movement.
A durable and precision-machined inlet poppet valve body is critical to ensuring the reliability of the pump’s operation and the long-term stability of the system.
Is the Inlet Poppet Valve Body 1-11232 considered a wear part?
Yes—the Inlet Lift Valve Body 1-11232 is classified as a “semi-wear part.”Although it is more durable than seals or O-rings, it still operates under conditions of sustained high pressure, water flow impact, and repeated mechanical stress. Over time, this component may experience wear, internal surface damage, deformation, or corrosion, which can compromise valve performance and sealing efficiency.
It is recommended to inspect this component regularly during routine maintenance; if wear or damage is detected, it should be replaced promptly.
Please contact our sales team if you have any inquiries!
