Industrial Waterjet Cutting Machine for Small Abrasive Stone and CNC Cutting

Product Introduction

The Industrial Waterjet Cutting Machine is a compact and high-precision abrasive Stone Water Jet cutter designed for small and medium industrial processing applications. Using ultra-high pressure water combined with abrasive garnet materials, this machine efficiently cuts stone, metal, glass, ceramics, marble, granite, foam, rubber, plastics, and composite materials while maintaining smooth cutting edges and accurate cutting dimensions. The compact machine structure, stable CNC control system, and durable industrial components make this Small Water Jet cutting machine suitable for workshops, customized fabrication factories, architectural decoration industries, and industrial manufacturing environments requiring flexible cutting solutions and controlled investment costs.

Technical Specifications

Model	KD1015	KD2015	KD3015	KD3020	KD4020
Structure	Cantilever / Gantry / Fully Enclosed
Cutting Table Size	1200 × 1700mm	2200 × 1700mm	3200 × 1700mm	3200 × 2200mm	4200 × 2200mm
X Axis Stroke	1000mm	2000mm	3000mm	3000mm	4000mm
Y Axis Stroke	1500mm	1500mm	1500mm	2000mm	2000mm
Z Axis Stroke	130mm
Cutting Accuracy	±0.1mm
Repeatability	±0.05mm
Traverse Speed	6000 - 15000mm/min
Power Supply	220V / 380V / 415V, 50/60Hz

Compact Structure with High Precision Cutting

This Small Water Jet Cutting Machine adopts advanced CNC motion control technology and a stable high-pressure cutting system to achieve accurate and efficient cutting performance in limited working spaces. The compact structure allows customers to save factory space while maintaining professional industrial cutting capability.

Professional Stone and Marble Cutting Solution

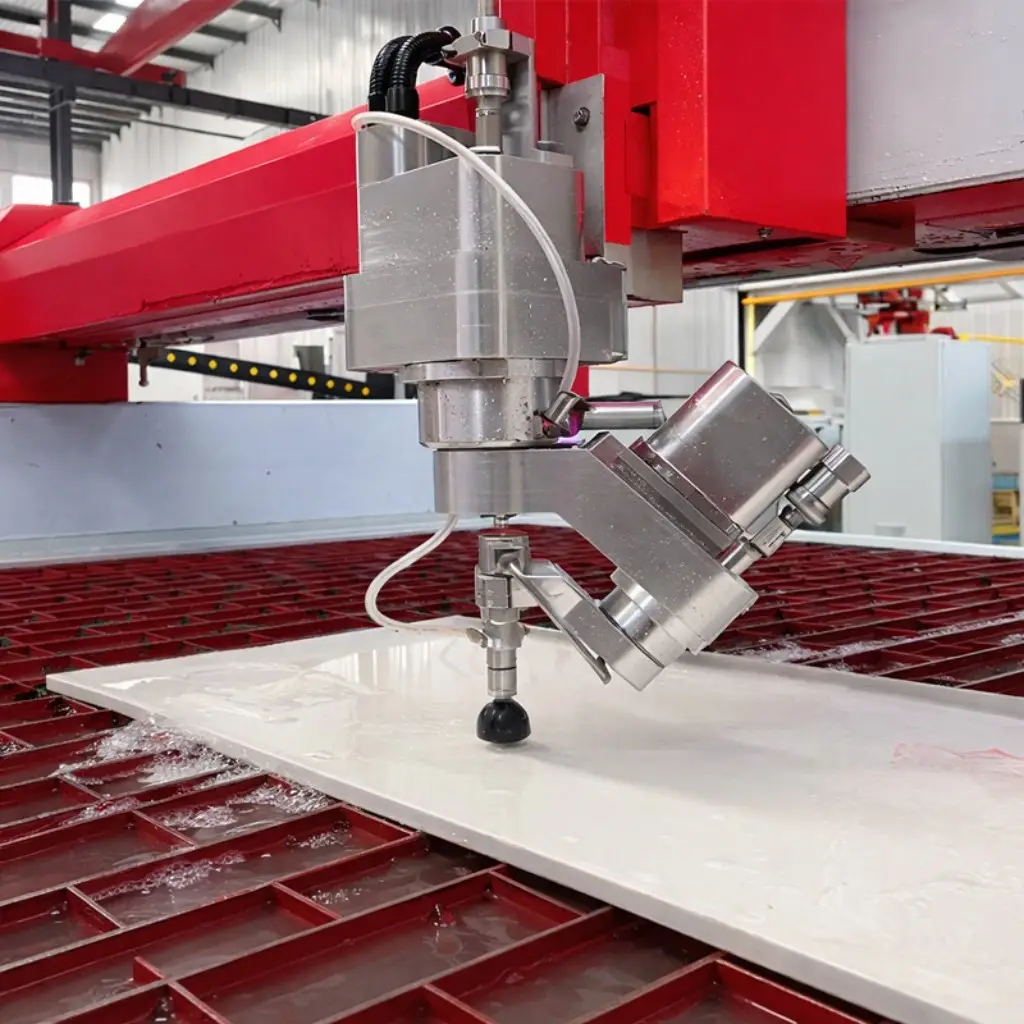

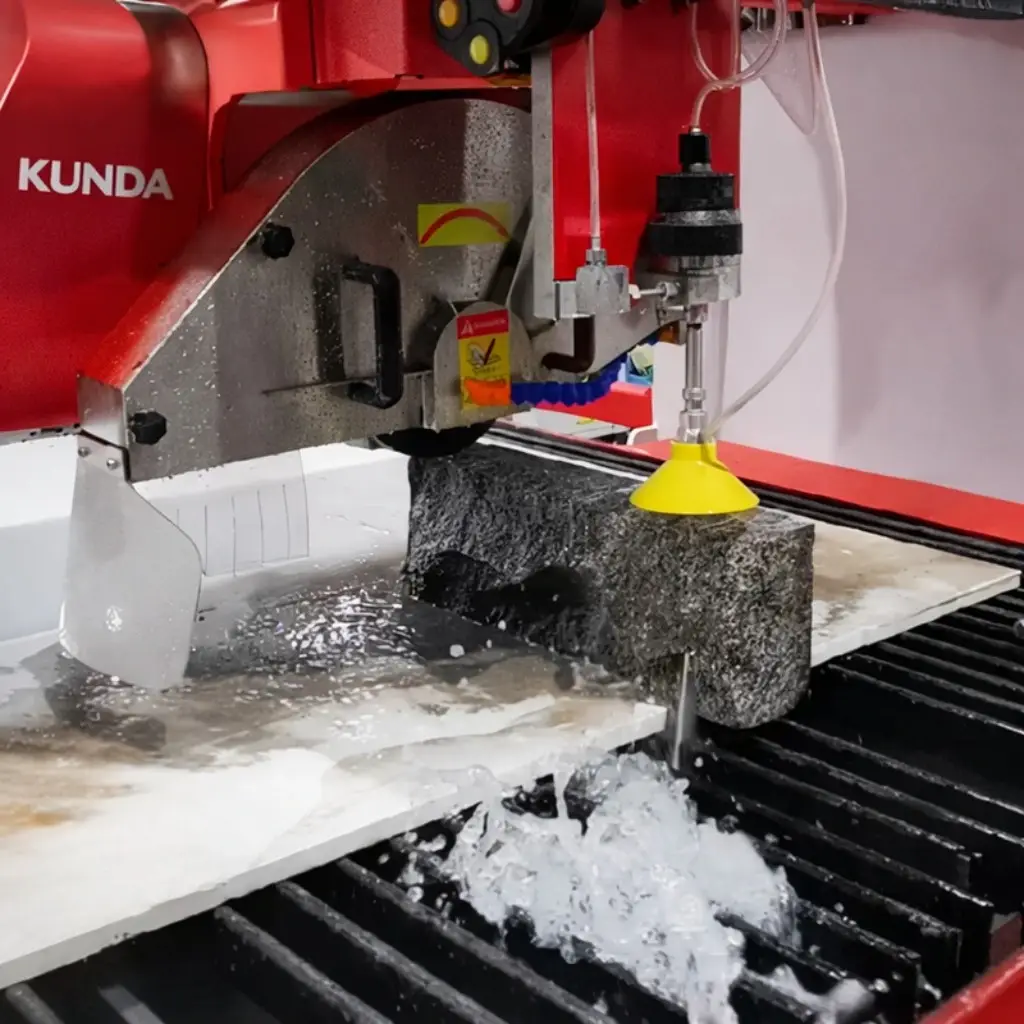

The abrasive stone water jet cutter is specially designed for processing granite, marble, quartz stone, ceramic tiles, and decorative stone materials. Waterjet cutting technology helps minimize edge chipping and material damage during processing while maintaining clean cutting edges and accurate dimensions.

Cutting Speed Reference

Material	Thickness	320MPa	380MPa	420MPa
Aluminum	6mm	400-520mm/min	460-590mm/min	500-680mm/min
Stainless Steel	13mm	80-120mm/min	100-150mm/min	125-180mm/min
Glass	10mm	600-700mm/min	700-800mm/min	820-900mm/min
Marble	20mm	400-500mm/min	600-700mm/min	750-850mm/min
Ceramic Tile	15mm	1200-1400mm/min	1400-1500mm/min	1600-1800mm/min

Stable Industrial Waterjet Cutting Performance

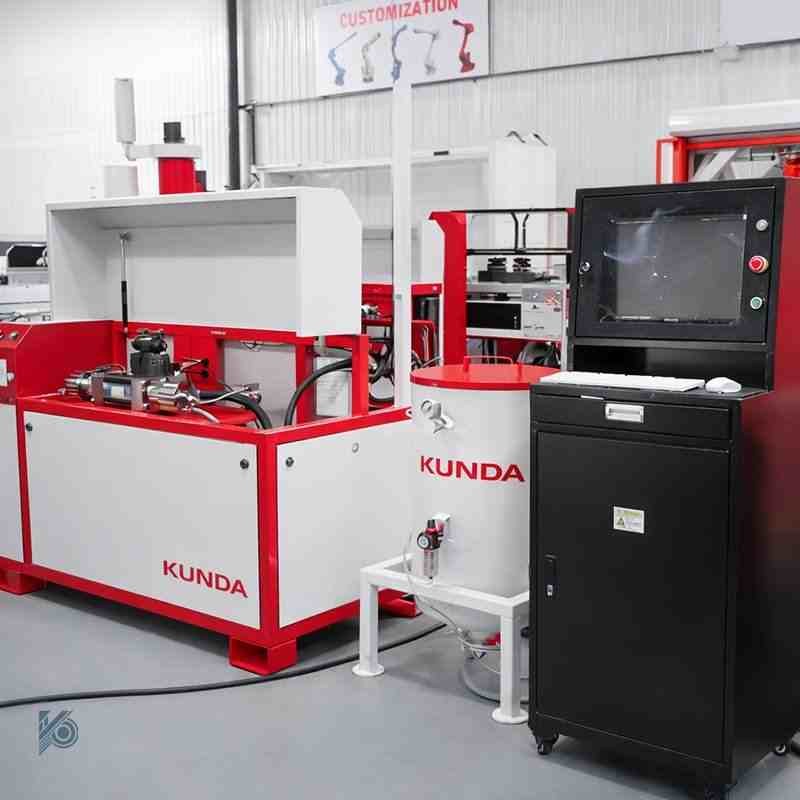

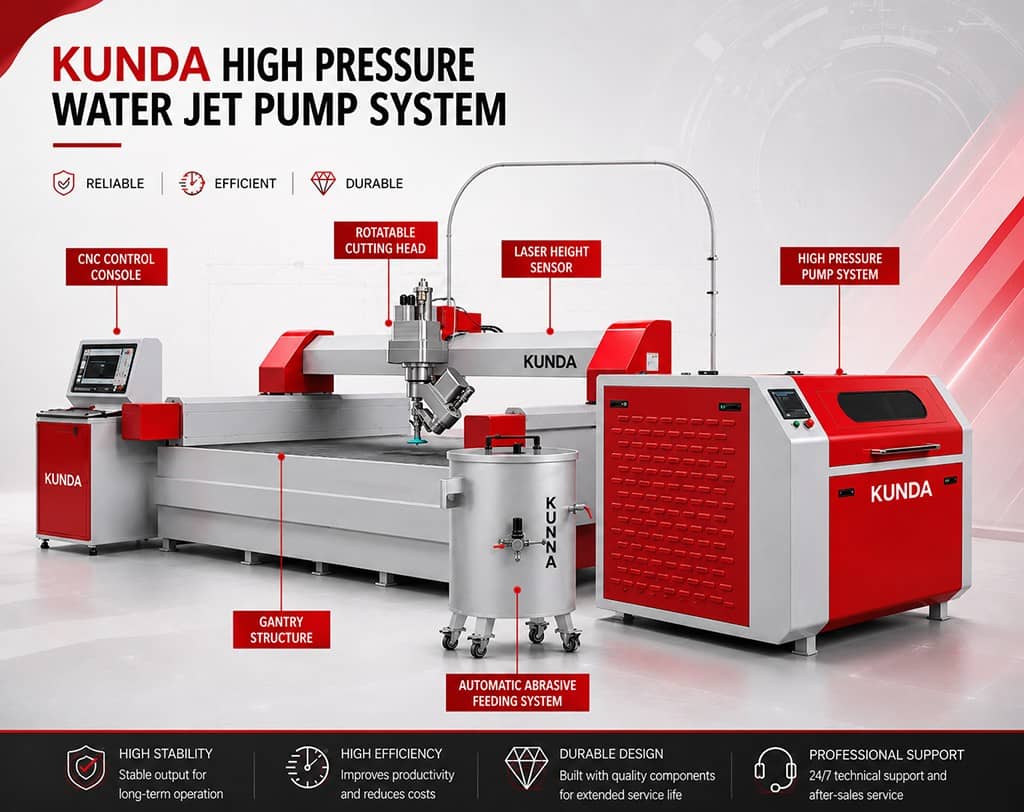

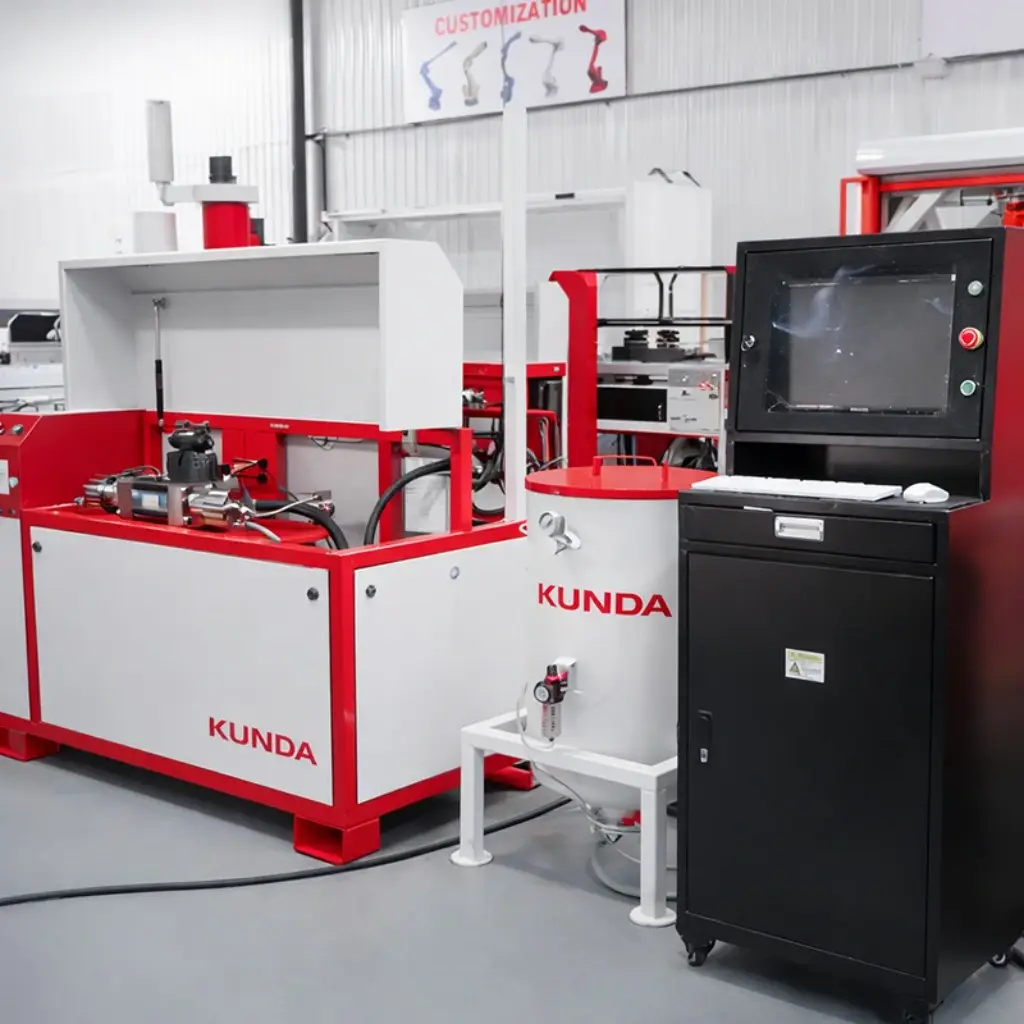

This industrial waterjet cutting machine is equipped with a reliable high-pressure intensifier system capable of generating stable ultra-high pressure water flow for continuous industrial operation. The optimized hydraulic structure helps maintain consistent pressure output during long working periods while improving cutting stability and production efficiency.

Durable Industrial Structure and Easy Maintenance

The Small Water Jet Cutter is manufactured with a heavy-duty industrial frame, precision guide rails, and reliable servo systems to ensure stable operation under industrial working conditions. The easy-maintenance design allows operators to quickly inspect and replace wear parts, helping reduce downtime and lower long-term maintenance costs.

Optional Automation and Intelligent Upgrade Solutions

KUNDA can provide optional laser height measurement systems, automatic loading systems, soft water treatment systems, customized CNC systems, and intelligent automation solutions according to different industrial applications. These upgrade systems help improve cutting precision, reduce labor costs, and increase production efficiency.

Wide Industrial Applications

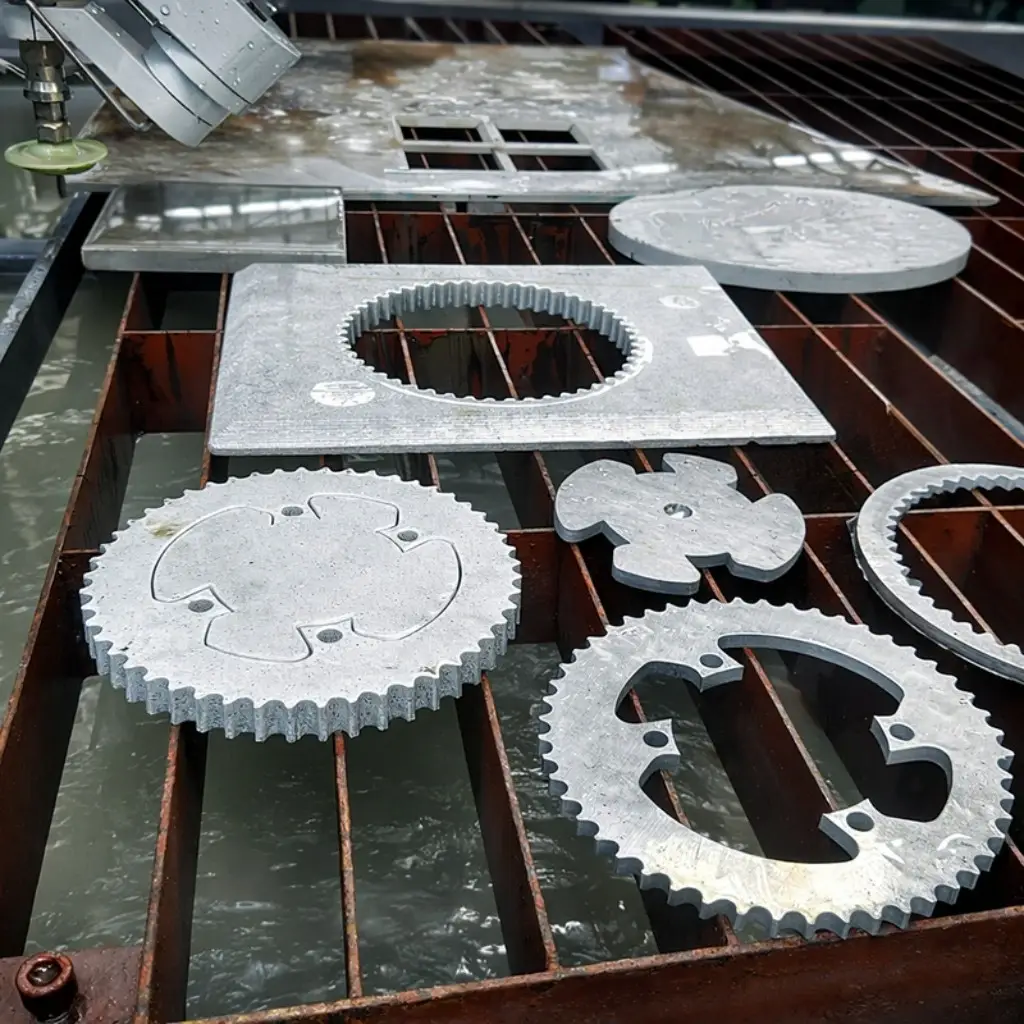

This industrial waterjet cutting machine is widely used in stone processing, marble fabrication, glass manufacturing, metal cutting, ceramic processing, architectural decoration, machinery manufacturing, customized workshops, and industrial fabrication industries.

Why Choose KUNDA Waterjet Cutting Machines

KUNDA provides professional Waterjet Cutting Solutions for global industrial customers. We can supply Abrasive Waterjet Cutting Machines, pure waterjet systems, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.

Contact Us

If you are looking for reliable industrial waterjet cutting machines, small abrasive stone water jet cutters, or customized CNC waterjet solutions, please feel free to contact KUNDA for more information and professional support.
