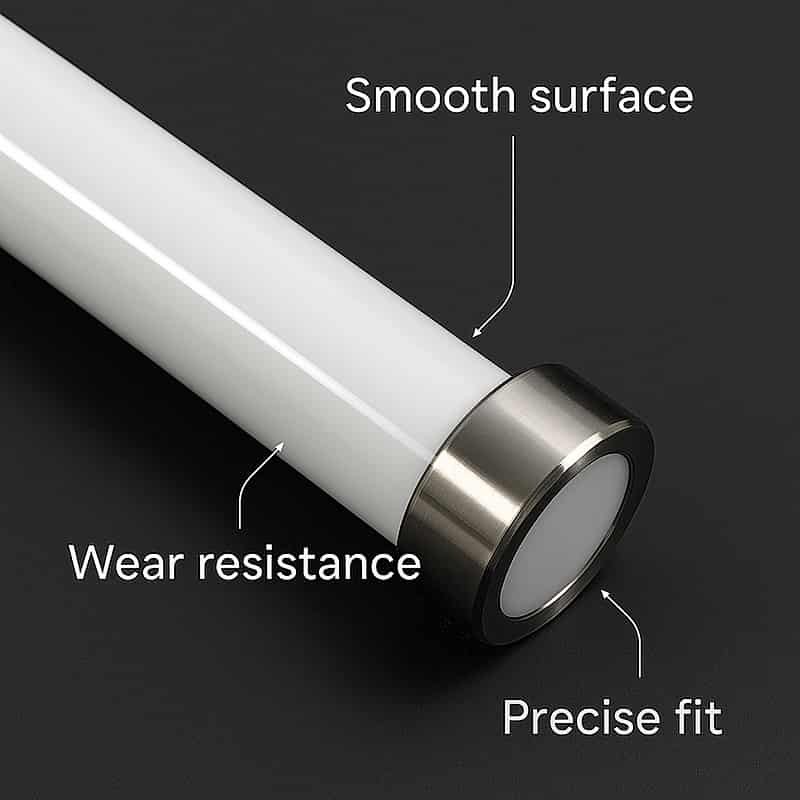

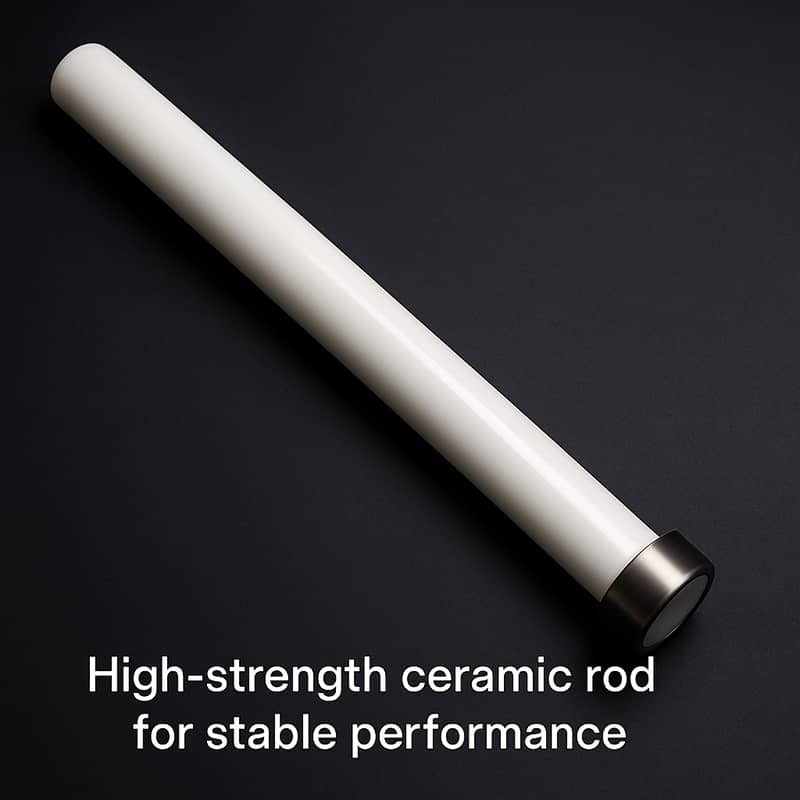

Industrial Ceramic Rod Long Service Life Waterjet Ceramic Plunger For Intensifier Pump
Industrial Ceramic Rod Long Service Life Waterjet Ceramic Plunger For Intensifier Pump
Product Introduction
The industrial ceramic rod, also called a waterjet ceramic plunger, is an important wear part used in intensifier pump systems. It helps support stable pressure generation, reduce seal wear, and maintain reliable pump performance during waterjet cutting.
KUNDA supplies industrial ceramic rods, ceramic plungers, ceramic piston rods, hydraulic cylinders, seal kits, and other intensifier pump replacement parts. Custom dimensions, OEM supply, private label service, and bulk orders are available.
Technical Parameters
| Parameter | Typical Range / Value | Description |
|---|---|---|
| Material | Al₂O₃, ZrO₂, Si₃N₄, SiC | Different ceramic materials are available |
| Density | 5.9–6.05 g/cm³ | Depends on material type |
| Hardness | 15–19 GPa / Mohs 8–9 | High wear resistance |
| Compressive Strength | 1500–4000 MPa | Suitable for high-pressure applications |
| Flexural Strength | About 1200 MPa for ZrO₂ | Helps resist mechanical stress |
| Fracture Toughness | About 10 MPa·m¹ᐟ² for ZrO₂ | Helps resist cracking |
| Thermal Expansion | 7–10.5 × 10⁻⁶/K | Good thermal stability |
| Surface Roughness | Ra 0.05–0.2 μm | Supports sealing performance |
| Dimensional Accuracy | Accuracy up to 0.001 mm; tolerance 0.01–0.002 mm | For matching with pump cylinders |

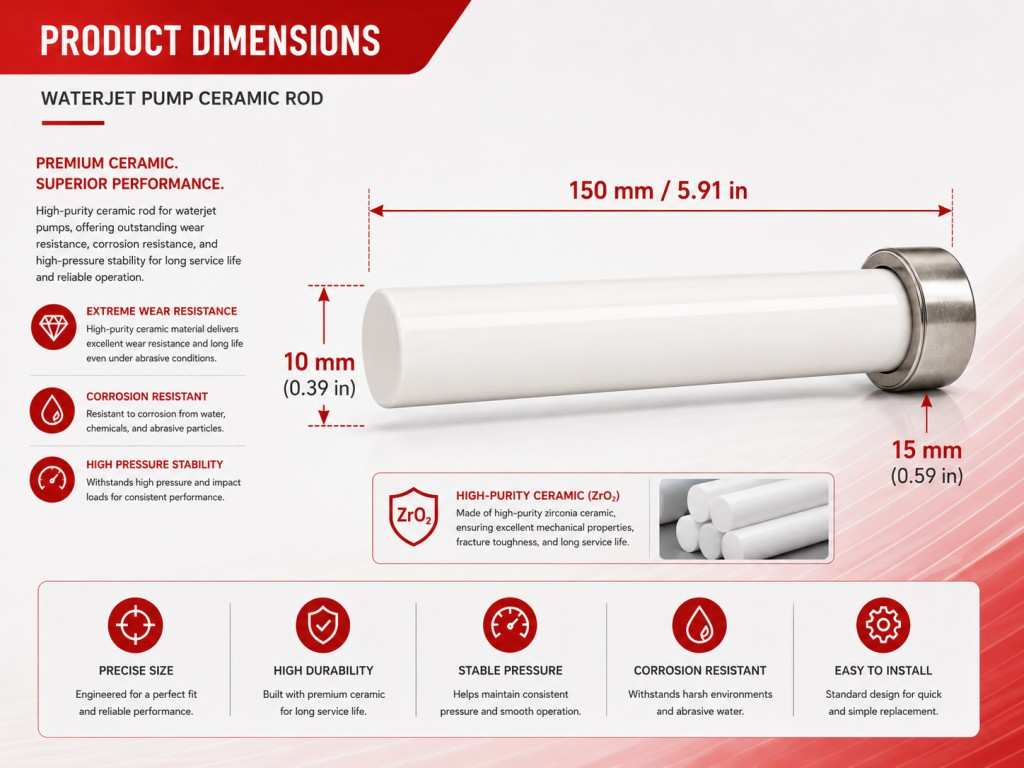

| Size Range | 6.35–312.5 mm diameter; 10–200 mm length | Custom sizes available |
| Working Pressure | 55,000–90,000 psi | Suitable for high-pressure Waterjet Pumps |
For Intensifier Pump Applications

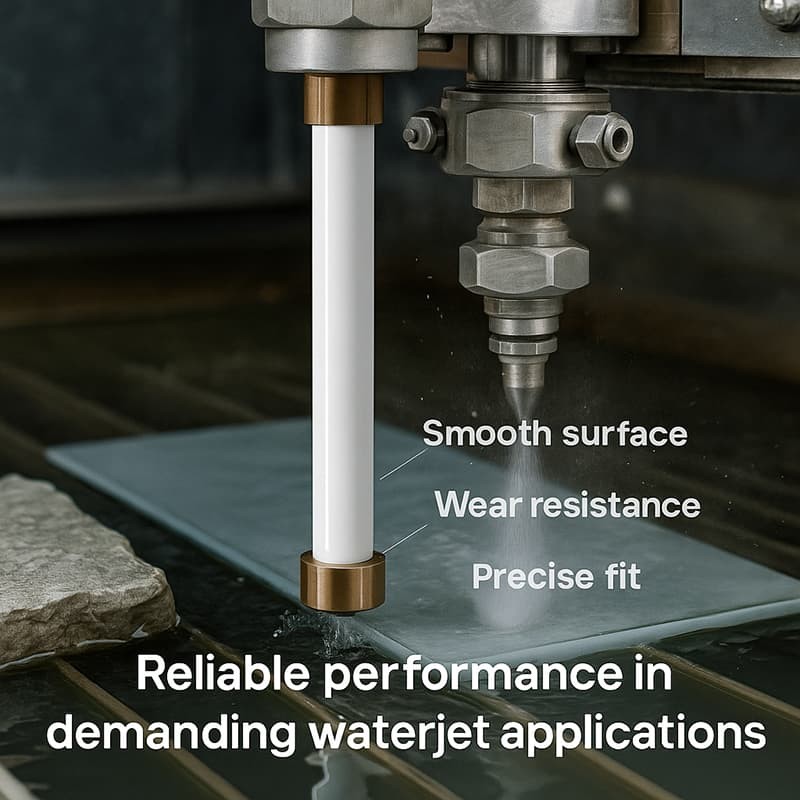

This ceramic rod is suitable for Waterjet Intensifier pump systems. Accurate dimensions and a smooth working surface help the ceramic rod match the pump cylinder and sealing assembly, supporting stable pressure output during continuous cutting work.
Long Service Life
Ceramic material offers strong hardness, wear resistance, and corrosion resistance. It helps reduce surface wear during repeated pump operation and can extend the replacement interval of related sealing parts.
Precision Ground Surface
A precision-ground ceramic surface helps reduce friction with sealing parts, lower leakage risk, and improve pump stability under high-pressure operation.
Replacement And Maintenance Use
These ceramic rods can be used for routine maintenance, pump rebuilding, emergency replacement, OEM production, and equipment repair. Customers can send machine model, pump type, current part number, sample, or drawing for replacement confirmation.
OEM And Custom Supply
KUNDA can provide different ceramic materials, dimensions, tolerances, surface finishes, and specifications according to customer requirements. Custom packaging, private label service, OEM manufacturing, and bulk supply are available.
Why Choose KUNDA
KUNDA supplies Waterjet Cutting Machines, intensifier pump parts, industrial ceramic rods, ceramic plungers, ceramic piston rods, hydraulic cylinders, seal kits, accumulators, cutting head parts, orifices, Mixing Tubes, Focusing Tubes, high-pressure tubing, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce downtime, and keep waterjet systems running smoothly.
Contact Us
If you need industrial ceramic rods, waterjet ceramic plungers, intensifier pump parts, or other waterjet spare parts, contact KUNDA for more details.
