Hydraulic Cartridge Seal Assembly 05009030 Water Jet Parts Supplier

Short Description:

Parts:05009030
Hydraulic Cartridge Seal Assembly,Water Jet Parts

Other references: 104954, 12107, 30098, 5000019
Article number: 10108
Net Weight: 97 g

INQUIRY

Details

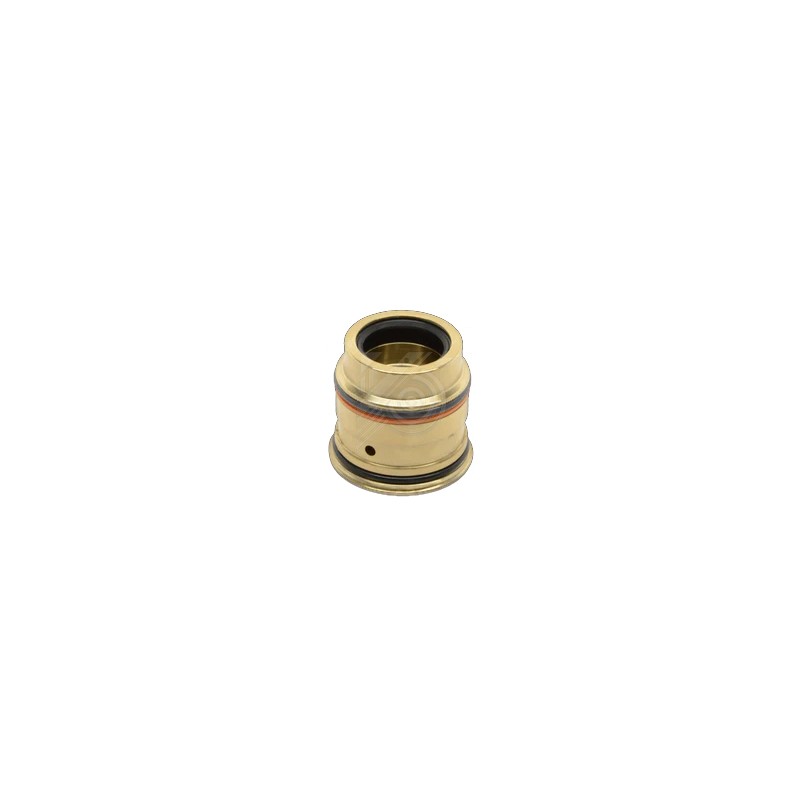

Hydraulic Cartridge Seal Assembly 05009030 Water Jet Parts Supplier

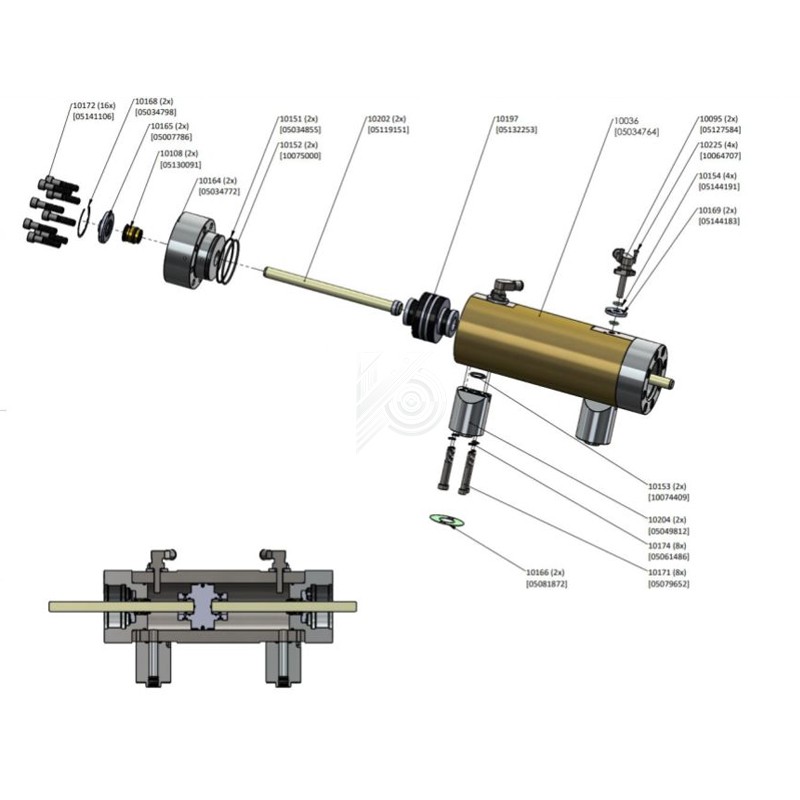

The Hydraulic Cartridge Seal Assembly (KMT Part #05009030) is a critical component for maintaining the high-pressure integrity of KMT waterjet Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier pumps. This assembly is designed for pumps operating at 60,000 to 90,000 psi and utilizing a 0.875" plunger.

Key Specifications
OEM Part Numbers: 05009030, 05130091, 1-12107, 5000019, 104954, 6104954

Compatible Models:
KMT PRO I, PRO II, PRO III
SL-IV (15hp–60hp & 100hp Dual Topworks)
SL-IV Plus (15hp–60hp & 100hp Dual Topworks)
SL-V (15hp–60hp)
SL-VI (15hp–60hp)
Late model HSEC Neoline pumps (15hp–60hp)
Weight: Approximately 0.185 lbs (84 grams)
Function: Seals the hydraulic cartridge to prevent high-pressure fluid leakage

Installation & Maintenance Tips
Preparation: Ensure all components are clean and free from debris before installation.
3HAC022379-001-Axis-2-3-For-Robot-Water-Jet-Cutting-Machine-Parts-In-Stock-p.html target='_blank'>Sealing: Apply threadlocker (e.g., Loctite 248) to threaded components to prevent loosening under high pressure.
Torque: Follow KMT's torque specifications for all fasteners to ensure proper sealing and prevent damage.
Inspection: Regularly inspect the sealing head assembly for signs of wear or damage, especially after extended use.
