Hp Seal Assembly Dual Core HT022070/220 Waterjet Pump Parts Supplier

Short Description:

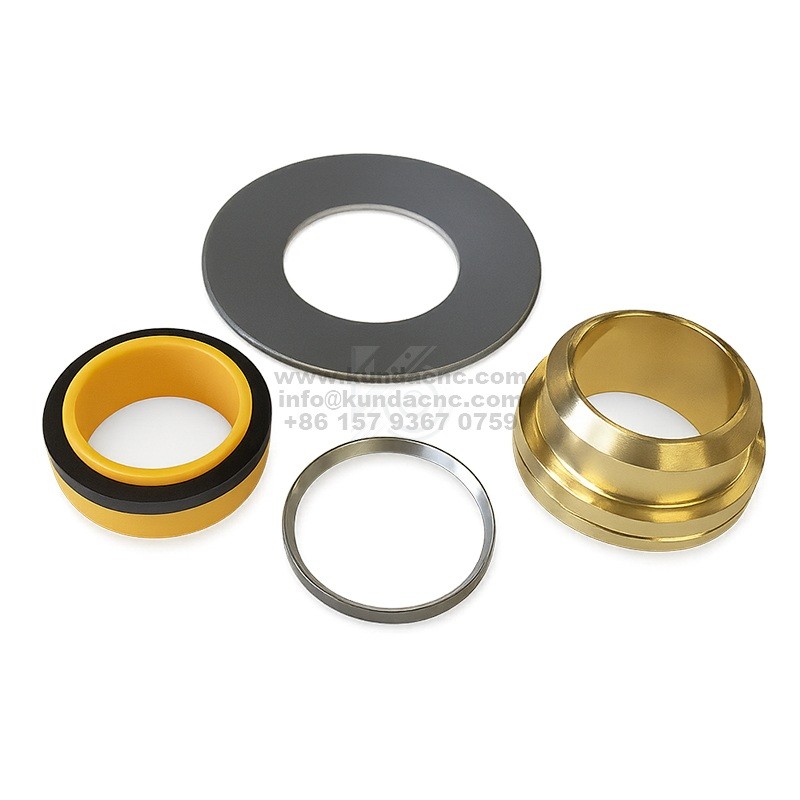

Hp Seal Assembly Dual Core
107138, MJ0040273
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.15 kg
Working pressure: 4137 bar
Material: Steel, rubber, plastic, brass
Brass bushing, part number HT022027/527, 1 pc.
Support ring, code CP022012/780, 1 pc.
O-ring, code CP022011/150, 1 pc.
Square ring, code 9704521/220, 1 pc.
Disc spring, code HT022026/255, 1 pc.

INQUIRY

Details

Hp Seal Assembly Dual Core HT022070/220 WaterJet Pump Parts Supplier

Part Number	Alternative models	Description
MJ0380264	EL130200	Sensor
4204812	F1000401-220	Spring
900630	HD210200	Seal Kit for Cutting Head
	HD230700	Protective Cap
4100108	HPU1329/220	Center Ring
106644	HT022004/473	Piston
	HT022006/563	Flange
106568	HT022008/172	Connection Flange
5100117	HT022009/172	Connection Flange

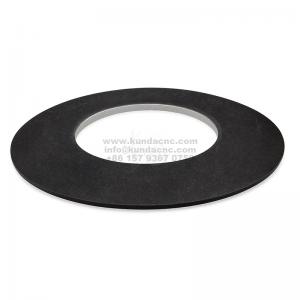

5300115	HT022026/255	Сup spring
5102235	HT022027/527	Bearing Bush
5102040	HT022032/527	Back Ring
5300123	HT022033/591	Valve Body Dual Core
MJ0040236	HT022040/779	Hp Cylinder
4100731	HT022044/103	Retaining Ring
	HT022051/461	Spacer Ring
5102078	HT022061/337	Mounting Tool Nut
107138	HT022070/220	Hp Seal Assembly Dual Core

The HP Seal Assembly Dual Core HT022070/220 is the core seal assembly for the high-pressure end of a waterjet intensifier. It features a dual-core design, providing a more stable and durable seal between the plunger and cylinder under ultra-high-pressure operating conditions. This assembly incorporates various sealing rings, support rings, and guides to ensure reliable sealing performance over extended periods of operation.

Function: Provides a dual seal between the plunger and cylinder under high-pressure conditions, preventing high-pressure water leakage.
Application: Installed in the high-pressure cylinder sealing system of a waterjet intensifier.
Design Features: The dual-core structure enhances seal strength and durability, effectively extending maintenance intervals.
Material Features: Constructed from high-performance polymers, composite materials, and wear-resistant components, it offers high-pressure, erosion, and fatigue resistance.
Replacement Period: As a typical consumable part, it should be replaced regularly based on equipment operating time and maintenance schedule to maintain optimal system performance.

The high-quality HP Seal Assembly Dual Core HT022070/220 significantly improves the seal reliability and service life of the intensifier, making it one of the key accessories to ensure the long-term stable operation of the Water Jet Cutting Machine.
