Hp Outlet Poppet Kit 500-20-0110 Waterjet Pump Parts In Stock

Short Description:

Parts:500-20-0110
Hp Outlet Poppet Kit,Waterjet Pump Parts
Article number: 12408
Specifications
Operating Parameters
Pressure Rating: Up to 60 000 psi (4 100 bar)
Application: Outlet (high-pressure) check-valve in intensifier pumps
Materials & Construction
Spring Material: Stainless steel alloy for corrosion resistance
Seat & Poppet Material: Hardened stainless steel for durability under ultra-high-pressure service

INQUIRY

Details

Hp Outlet Poppet Kit 500-20-0110 Waterjet Pump Parts In Stock

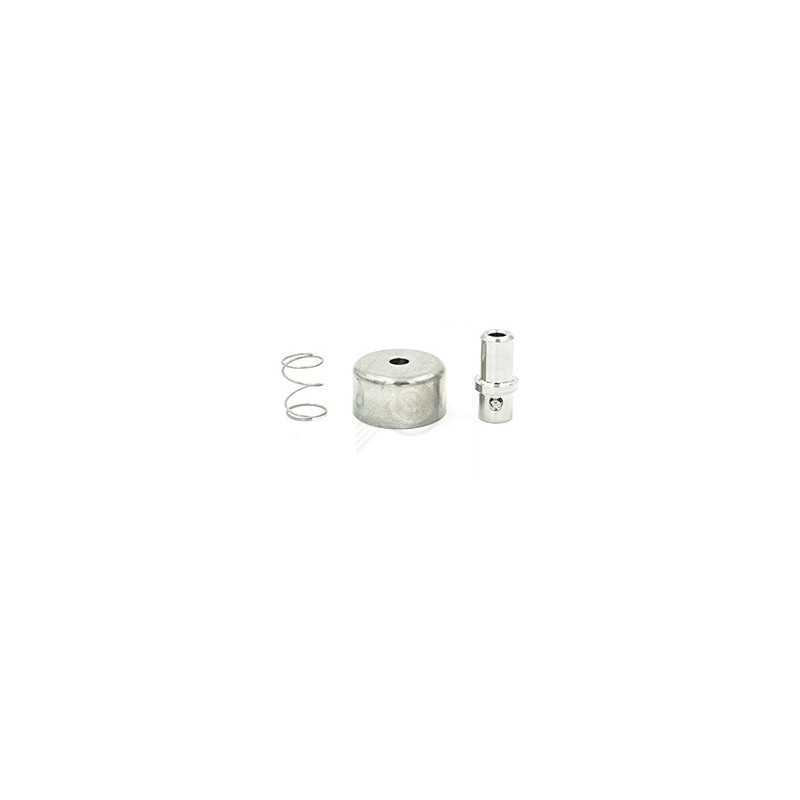

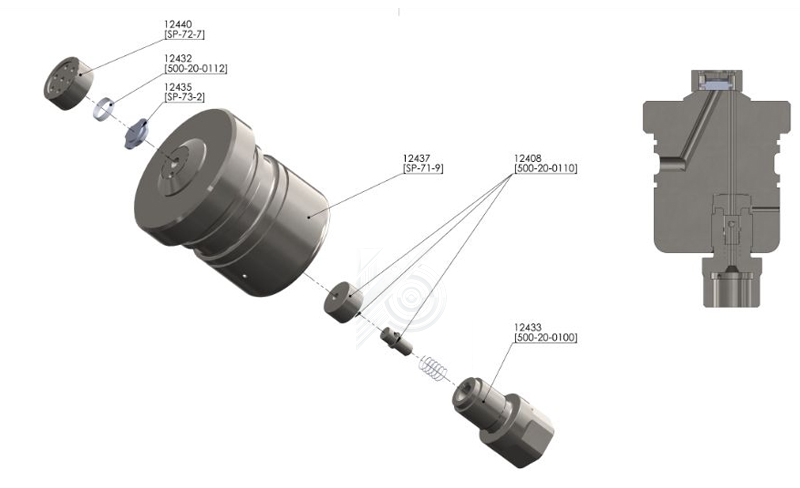

The part 500-20-0110 is a genuine OEM High-Pressure Outlet Poppet Repair Kit for the Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier pump in Waterjet cutting systems. It includes the HP Spring-F1000401-220-BFT-Abrasive-Water-Jet-Parts-In-Stock-p.html target='_blank'>Spring (500-20-0112), check-Valve Seat (500-20-0111), and outlet poppet (500-20-0113), allowing users to rebuild the outlet check-valve without replacing the entire Valve Body.

Specifications
Operating Parameters
Pressure Rating: Up to 60 000 psi (4 100 bar)
Application: Outlet (high-pressure) check-valve in Intensifier Pumps
Materials & Construction
Spring Material: Stainless sTeel alloy for corrosion resistance
Seat & Poppet Material: Hardened stainless steel for durability under ultra-high-pressure service
