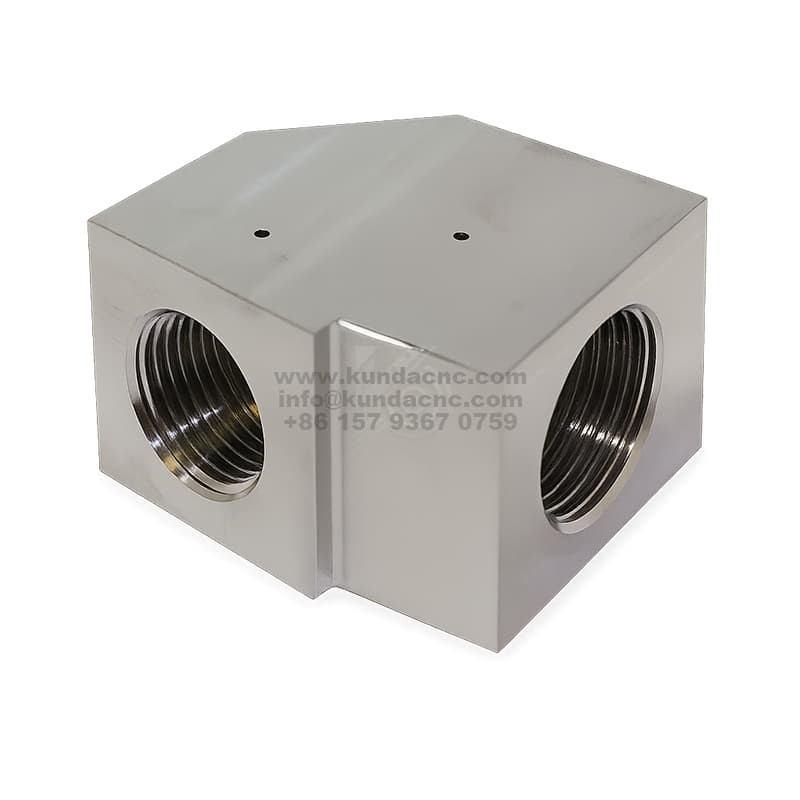

Head Swivel Angle Adapter MJ0010139 3/8 Waterjet Parts Supplier

Short Description:

Head Swivel Angle Adapter
3D 3/8"
Minimum Order Quantity: 1
Availability: Yes
Weight: 0.25 kg
Working Pressure: 4137 bar
Material: Stainless Steel

INQUIRY

Details

Head Swivel Angle Adapter MJ0010139 3/8" Waterjet Parts Supplier

Part Number	Alternative models	Description
HD001900	MJ0010139	Head Swivel Angle Adapter
MJ4980006	MJ0110020	Sapphire Nozzle
ZA110200	MJ0380291	Height Sensor Probe For 3D Head
ZA111000	MJ2260022	Collimation Tube I-Head And Jet 3D
PN200600	MJ2350006	Hose
HD300100	MJ9990002	Ajet 3D Head
4100442	OR0120030/151	Ring
4100920	OR0140020/151	O-Ring
4101560	OR0250040/151	O-Ring
5300048	OR0490030/151	O-Ring
4100704	OR0700020/151	O-Ring
4100705	OR0759017/151	O-Ring
	OR0885035/220	O-Ring
4101562	P7680325/220	Oil Filter Element
106810	S0356x2/426	Snap Ring
106779	S24B20/103	Retaining Ring
106334	TJ006016/133	Clamping Nut
107488	TJ006070/591	Abrasive head
106336	TJ006071/555	Bushing
107476	TJ006076/591	Basic body 6.35 mm

The Head Swivel Angle Adapter MJ0010139 is a key connection component in Waterjet Cutting Head systems, enabling flexible angle adjustment between the cutting head and the high-pressure pipeline. This adapter allows the cutting head to be rotated and adjusted according to the workpiece's requirements, achieving greater cutting flexibility and precision.

Function: Provides angle adjustment and rotation for the cutting head, enhancing cutting flexibility and adaptability.
Applicable Location: Installed at the connection between the cutting head and the high-pressure pipeline of a Water Jet Cutting Machine.
Material: Constructed of high-strength stainless steel or alloy steel, it offers high-pressure, corrosion, and fatigue resistance.
Replacement Period: While durable, it has a long lifespan. However, if performance deteriorates due to frequent adjustments or wear, it should be replaced promptly.

The high-quality Head Swivel Angle Adapter MJ0010139 significantly improves the flexibility and cutting efficiency of waterjet cutting heads, making it an essential component for cutting multi-angle and complex workpieces.
