HT Seal kit HT022070/220 BFT Waterjet Parts

Short Description:

Recommended for: BFT, BHDT, STM, Maximator
Alternative code (cross code): 107138, MJ0040273
Weight: 0.15 kg.
Working pressure: 4137 bar
Material: Steel, rubber, plastic, brass
Where is it located (in which unit, in which part of the equipment):
Element of the high-pressure pump intensifier.
What is the function (what is it for, what role):
Serves to seal the carbide plunger.

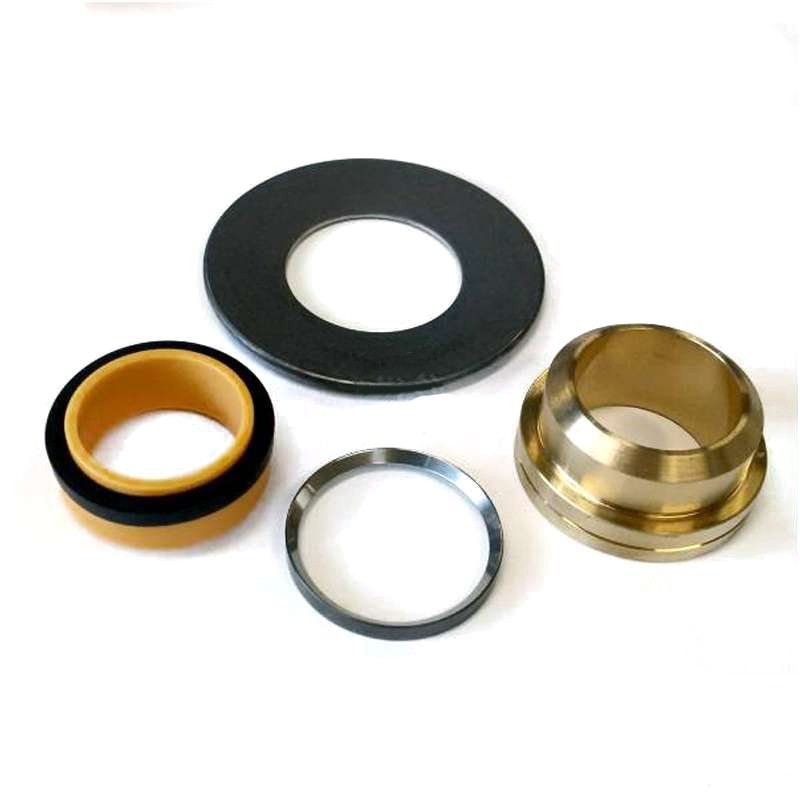

What is it or what does it consist of:
Brass bushing, code HT022027/527, 1 pc.
Backup ring, code CP022012/780,

INQUIRY

Details

HT Seal kit HT022070/220 BFT Waterjet Parts

The BFT HT Seal Kit HT022070/220 is a high-performance sealing solution designed for BFT waterjet systems, particularly those utilizing the dual-core intensifier technology. This kit ensures optimal sealing of the carbide plunger, maintaining high-pressure integrity and preventing fluid leakage within the hydraulic piston assembly.

Specifications
BFT Part Number: 1100045 (formerly HT022070/220)
Alternative Codes: 107138, MJ0040273
Material Composition: Steel, rubber, plastic, brass
Weight: Approximately 0.15 kg
Maximum Operating Pressure: 4137 bar
Function: Seals the carbide plunger to maintain pressure and prevent fluid leakage
Compatibility: Recommended for BFT systems
Location: Element of the high-pressure Pump intensifier
