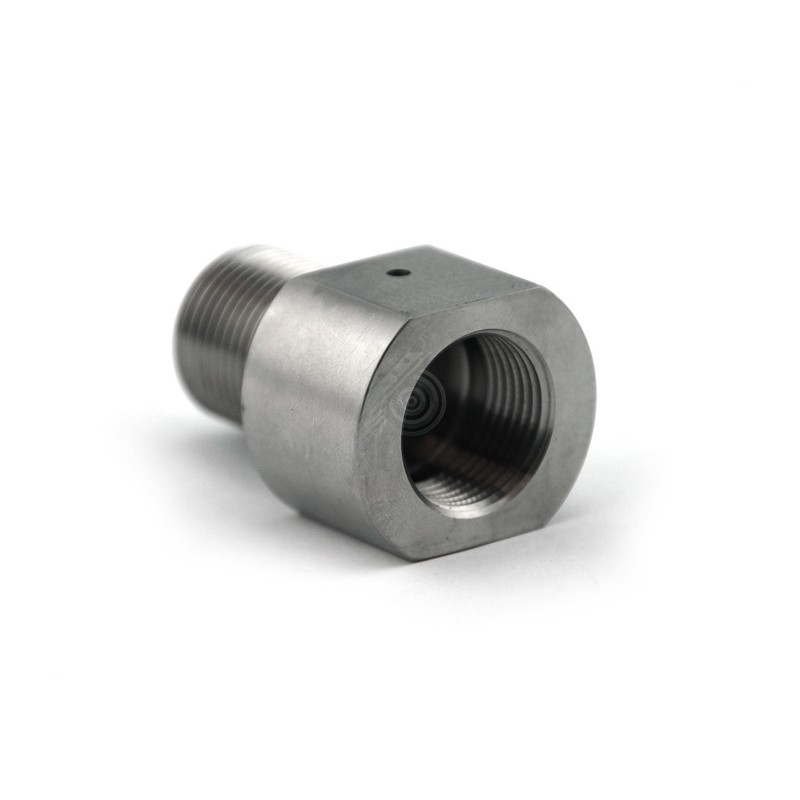

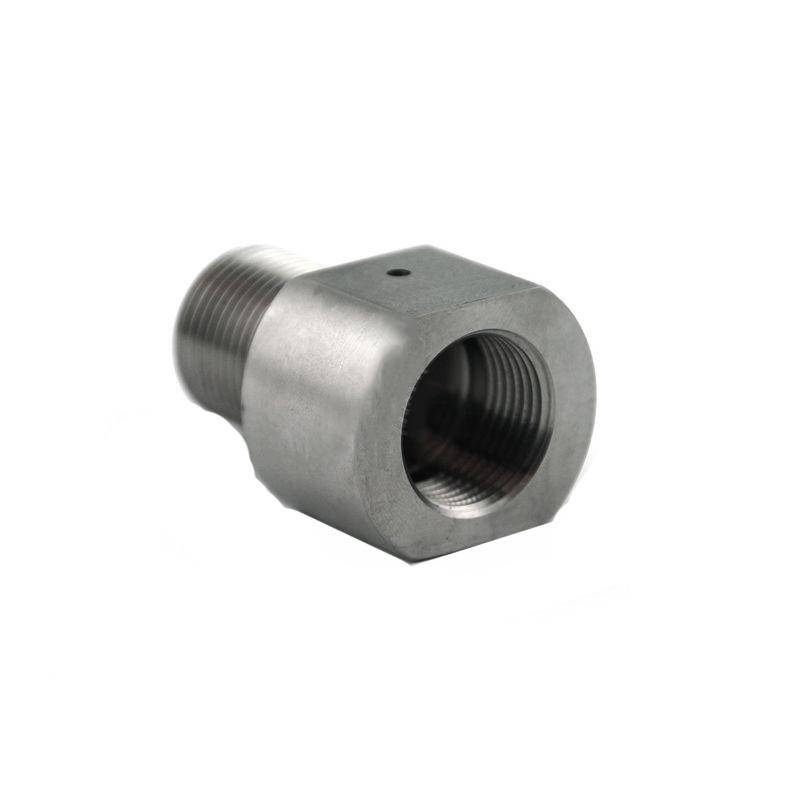

HP-Connection WJ100037/152 BFT Water Jet Cutter Parts

Short Description:

WJ100037/152
HP-Connection,BFT Water Jet Cutter Parts
Recommended for: BFT, BHDT, Maximator, STM
Alternative code (cross code): 5200004, 106807
Weight: 0.13 kg.
Working pressure: 4137 bar
Material: Stainless steel

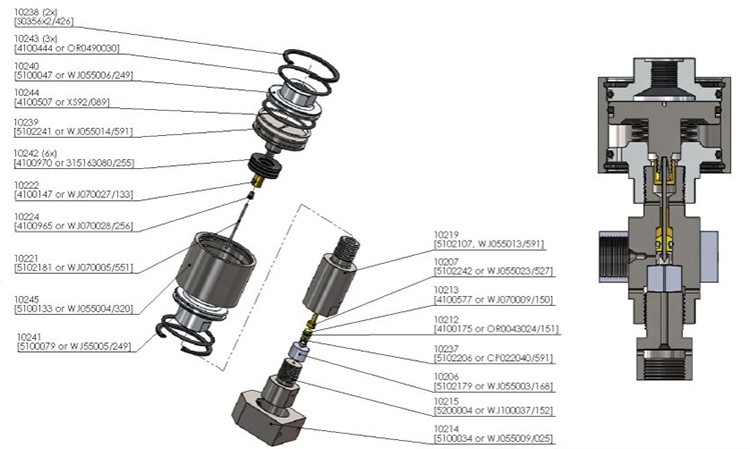

Technical documentation: Relief valve

Where is it located (in which unit, in which part of the equipment):
Element of the high-pressure pump relief valve.
What is the function (what is it for, what role):
Serves to fix the relief valve seat and the 3/8" outlet tube.

INQUIRY

Details

HP-Connection WJ100037/152 BFT Water Jet Cutter Parts

The BFT WJ100037/152 is a high-pressure (HP) connection adapter used in BFT waterjet cutting systems. This component is integral to the Bleed-down Valve Assembly, facilitating the secure connection of high-pressure tubing and ensuring the safe operation of the waterjet system.

Specifications
Part Number: WJ100037/152
Alternate Code: 5200004
Type: HP Connection Adapter
Material: Typically stainless sTeel or high-strength alloy
Function: Connects high-pressure tubing to the bleed-down valve assembly
Compatibility: Designed for BFT high-pressure waterjet systems
