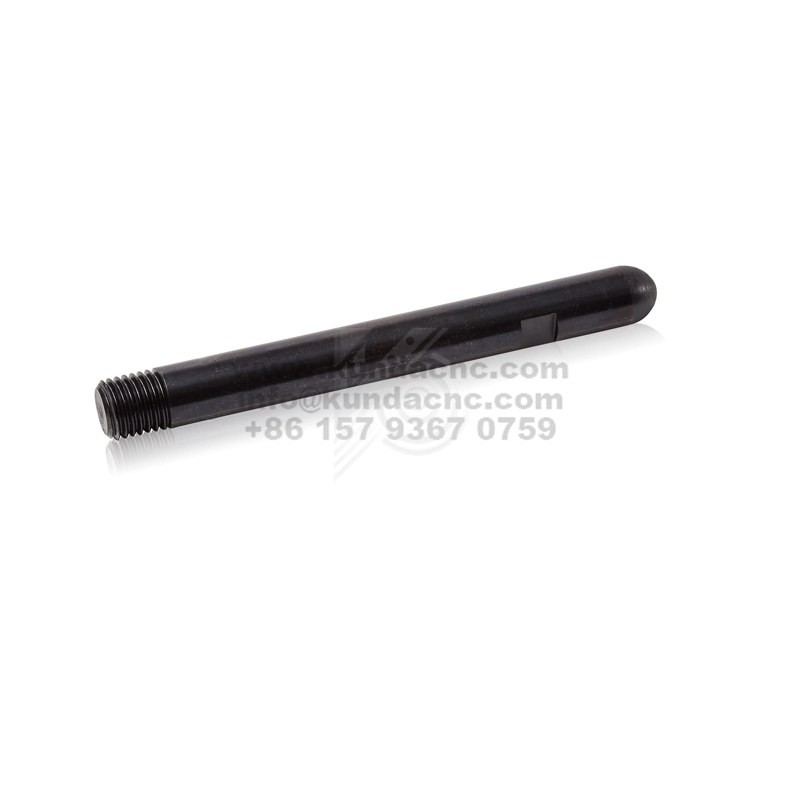

Guide Pins 3HAC13120-2 Used For Robot WaterJet Cutter Supplier

The Guide Pins 3HAC13120-2 are high-precision mechanical alignment components used in ABB industrial robot systems to ensure accurate positioning, secure assembly, and long-term mechanical stability of robot joints, motor units, and structural interfaces. These guide pins play a crucial role in maintaining the correct alignment between connected components, reducing mechanical stress, and enhancing the overall precision and durability of the robotic system.

Manufactured from hardened stainless steel, the 3HAC13120-2 guide pins provide exceptional wear resistance, corrosion protection, and dimensional accuracy. Each pin is precisely ground to ABB’s tight tolerances, ensuring smooth insertion, reliable positioning, and consistent performance in demanding industrial environments. Whether used during robot assembly, motor mounting, or arm calibration, these pins guarantee the precision and stability ABB systems are known for.

Key Features:
Model: 3HAC13120-2
Type: Precision Guide Pins / Alignment Pins
Ensures accurate alignment and positioning of robot components
Made from hardened stainless steel for superior strength and corrosion resistance
Precision-ground surface for exact fitting and easy installation
Reduces vibration, misalignment, and mechanical wear over time
Compatible with ABB S4C, S4C+, and IRC5 robot systems
Ideal for motor mounting, gearbox alignment, and joint calibration

Applications:
Used in ABB industrial robots for accurate assembly and alignment of motors, arms, and structural components
Suitable for waterjet cutting robots, welding cells, CNC automation, and material handling systems
Commonly applied in robot rebuilds, maintenance, and precision upgrades
