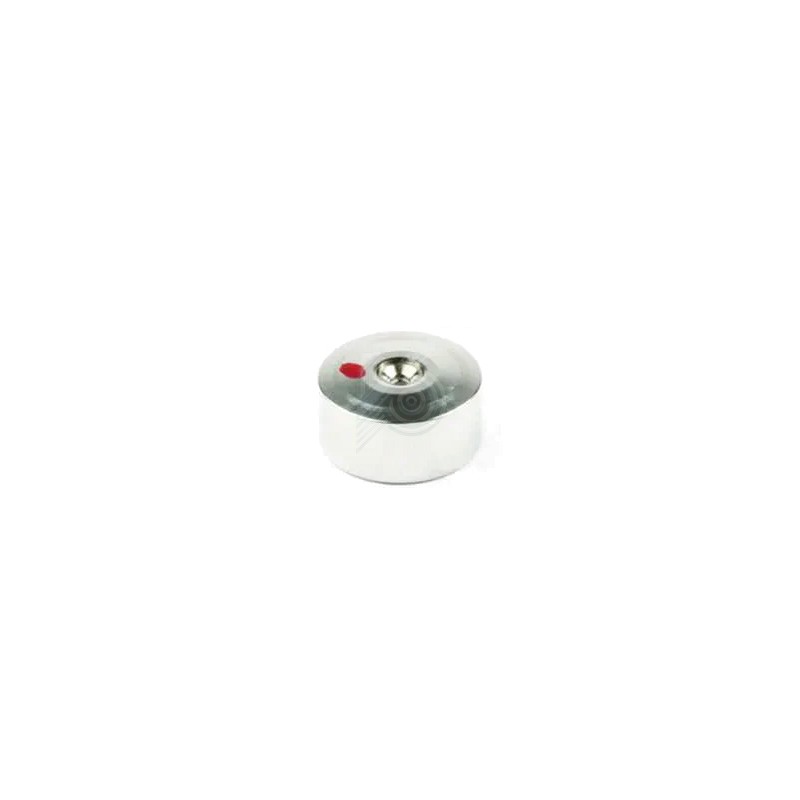

Diamond 12749-009 Waterjet Pump Parts In Stock
Diamond 12749-009 Waterjet Pump Parts In Stock
Part Identification
Part Number:12749-009
Orifice Size:0.009 in. (0.228 mm)
Style:diamond orifice
Thread/Seat:Standard cutting-head mounting
Filter Requirement:Must use thimble filter (part 1-12401) or warranty void
Installation & Maintenance
Filter Installation: Always install a thimble filter (e.g., part 1-12401) upstream to capture debris >0.0055″, protecting the diamond orifice
Orifice Replacement:
Depressurize the waterjet system.
Remove the cutting head and extract the old orifice with a collet or retaining nut tool.
Clean the orifice seat and inspect for damage.
Press in the new 12749-009 orifice until fully seated.
Reinstall the head and slowly repressurize, checking for leaks.
Operational Tips: Use high-purity garnet abrasive and maintain filter media to maximize orifice life and cut quality.
Part Number
Size
1-12749-003
0.003 inch
1-12749-004
0.004 inch
1-12749-005
0.005 inch
1-12749-006
0.006 inch
1-12749-007
0.007 inch
1-12749-008
0.008 inch
1-12749-009
0.009 inch
1-12749-010
0.010 inch
1-12749-011
0.011 inch
1-12749-012
0.012 inch
1-12749-013
0.013 inch
1-12749-014
0.014 inch
1-12749-015
0.015 inch
1-12749-016
0.016 inch
1-12749-017
0.017 inch
1-12749-018
0.018 inch
1-12749-019
0.019 inch
1-12749-020
0.020 inch
Part Number:12749-009
Orifice Size:0.009 in. (0.228 mm)
Style:diamond orifice
Thread/Seat:Standard cutting-head mounting
Filter Requirement:Must use thimble filter (part 1-12401) or warranty void
Installation & Maintenance
Filter Installation: Always install a thimble filter (e.g., part 1-12401) upstream to capture debris >0.0055″, protecting the diamond orifice
Orifice Replacement:
Depressurize the waterjet system.
Remove the cutting head and extract the old orifice with a collet or retaining nut tool.
Clean the orifice seat and inspect for damage.
Press in the new 12749-009 orifice until fully seated.
Reinstall the head and slowly repressurize, checking for leaks.
Operational Tips: Use high-purity garnet abrasive and maintain filter media to maximize orifice life and cut quality.
