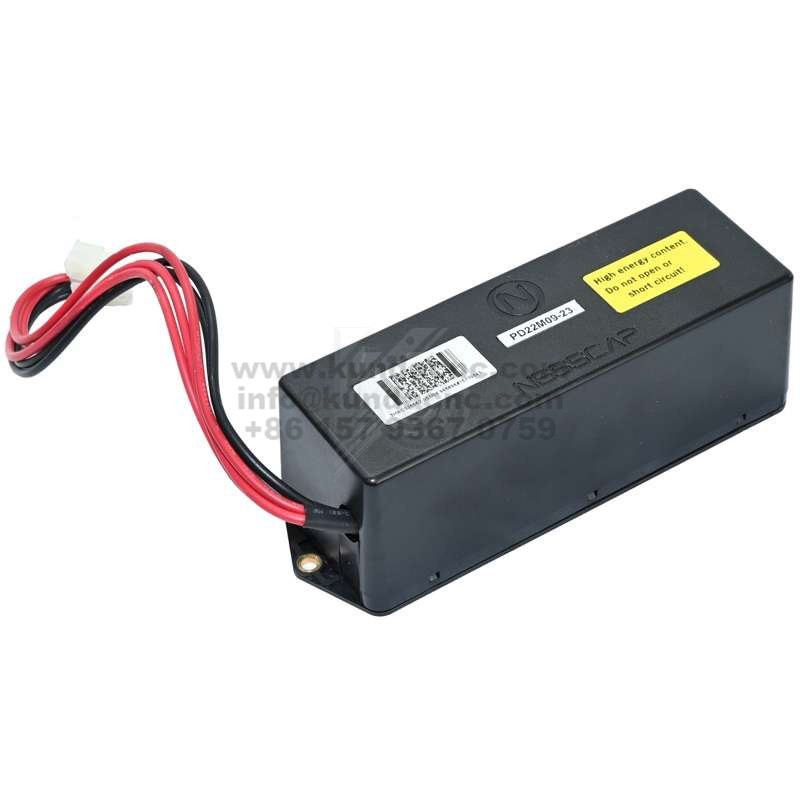

DSQC 655 Capacitor Unit 3HAC025562-001 Good Price Robot Parts

The DSQC 655 Capacitor Unit (3HAC025562-001) is a precision-engineered energy storage and stabilization module designed for ABB industrial robot controllers and drive systems. It functions as a high-capacity DC-link capacitor, absorbing and releasing electrical energy to stabilize voltage, reduce power fluctuations, and enhance the efficiency of servo drive operations in ABB robots.

Built to meet ABB’s strict electrical and safety standards, the DSQC 655 ensures stable DC bus voltage, protects sensitive electronics from voltage spikes, and improves dynamic power response during rapid acceleration and deceleration of robotic axes. Its high-reliability capacitors and robust enclosure make it ideal for continuous 24/7 operation in demanding environments such as metal fabrication, waterjet cutting, assembly, and material handling automation.

Key Features:
Model: DSQC 655 (3HAC025562-001)
Type: Capacitor Unit / DC-Link Energy Storage Module
Stabilizes DC voltage for ABB servo drives and robot controllers
Provides energy buffering during dynamic load changes
Protects against voltage surges and transients in the drive system
Improves system efficiency and motor response
Compact, industrial-grade design with built-in protection circuitry
Fully compatible with ABB IRC5, S4C, and S4C+ robot systems
Designed for long service life and continuous operation

Applications:
Used in ABB industrial robots for stabilizing power within servo drive circuits
Ideal for high-performance applications like waterjet cutting, CNC automation, welding, and packaging
Replacement or upgrade component for ABB drive cabinets and power modules

Technical Specifications (typical):
Rated Voltage: DC (per ABB system standard)
Function: Energy storage and voltage stabilization for DC bus circuits
Cooling: Natural convection
Protection: Overvoltage and thermal protection integrated
Mounting: ABB-standard control cabinet rack or module slot
Construction: Industrial-grade capacitor bank with reinforced housing
