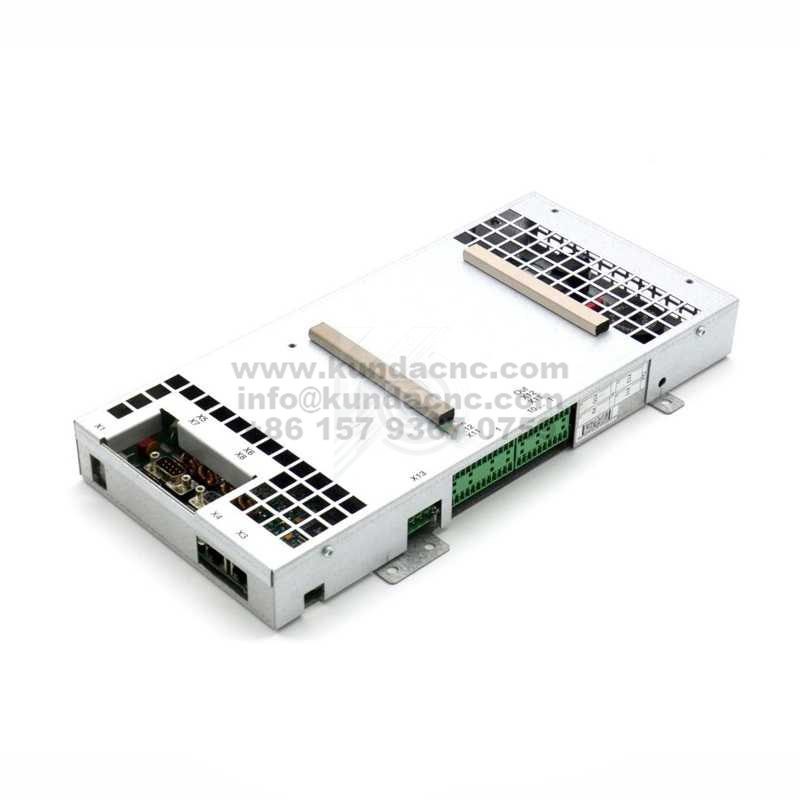

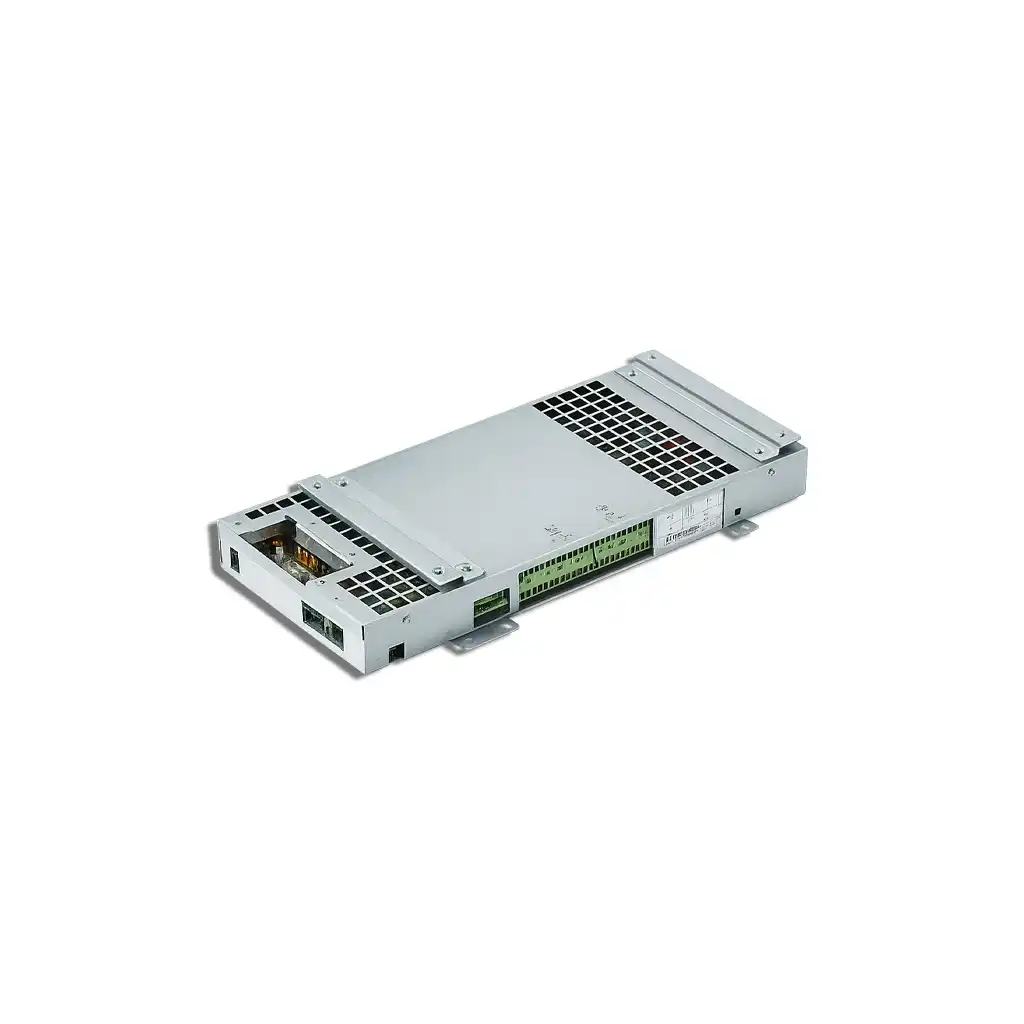

DSQC 647 SafeMove Unit 3HAC026272-001 New Waterjet Robot Parts

The DSQC 647 SafeMove Unit (3HAC026272-001) is a high-precision safety monitoring and control module developed by ABB to enhance safety, flexibility, and efficiency in industrial robotic operations. This advanced unit works within the IRC5 robot controller to continuously monitor the robot’s position, speed, and movement parameters, ensuring compliance with defined safety zones and operational limits.

By integrating SafeMove technology, the DSQC 647 allows safe human–robot collaboration, reducing the need for physical safety barriers while maintaining full performance capability. It is ideal for modern manufacturing environments that demand high productivity with strict safety standards — such as automotive assembly, waterjet cutting, palletizing, packaging, and precision machining.

Key Features:
Model: DSQC 647 (3HAC026272-001)
Type: SafeMove Safety Control Unit
Provides real-time monitoring of robot position, speed, and orientation
Enables configuration of safe zones, restricted workspaces, and safety speed limits
Supports SafeMove and SafeMove Pro functionalities depending on configuration
Designed for full integration with ABB IRC5 robot controllers
Offers advanced diagnostics, event logging, and networked safety control
Compatible with safety PLCs, light curtains, and proximity sensors
Certified to meet international safety standards (ISO 10218, IEC 61508, SIL3, PL e)

Applications:
ABB industrial robots in automotive production, metal processing, waterjet and laser cutting, packaging, and collaborative automation
Systems requiring functional safety monitoring and human–robot collaboration
Retrofit or upgrade module for existing ABB IRC5 systems to achieve SafeMove compliance

Technical Specifications (typical):
Interface: Safe I/O and Ethernet-based safety communication
Voltage: 24V DC (standard control voltage)
Processor: Embedded safety controller with real-time monitoring capability
Mounting: Internal IRC5 cabinet module slot
Certifications: CE, TUV, SIL3, PL e safety certifications
Environment: Industrial operating range (0°C to 55°C)
