Connection Flange CP022017/172 Abrasive Water Jet Parts For BFT

Short Description:

CP022017/172,CONNECTION FLANGE, Abrasive Water Jet Parts For BFT
Recommended for: BFT,STM, Maximator
Weight: 13.2 kg.
Working pressure: 4137 bar
Material: Stainless steel
Element of the high-pressure pump intensifier.
What is the function (what is it used for, what role):
Serves to fix the hydraulic cylinder.

INQUIRY

Details

172 Abrasive Water Jet Parts For BFT

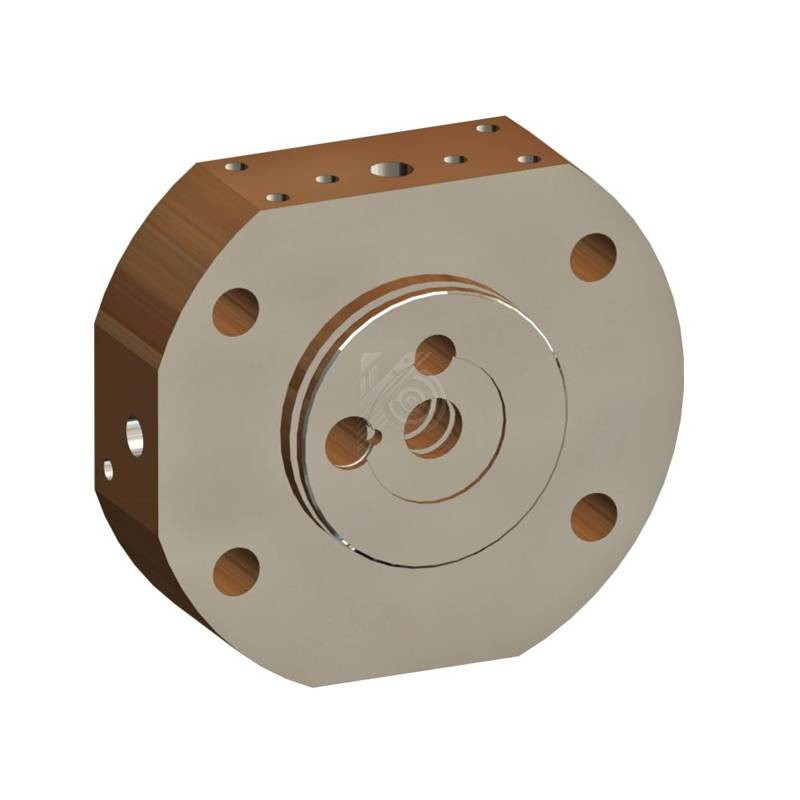

The BFT Connection Flange CP022017/172 is a precision-machined interface component used in BFT series Waterjet Pump cylinder assemblies to join the high-pressure cylinder to the Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier head, ensuring leak-free operation under cyclic loads.

Technical Specifications
Part Number: CP022017/172
OEM Reference: OR 5100145
Article Number: 10312

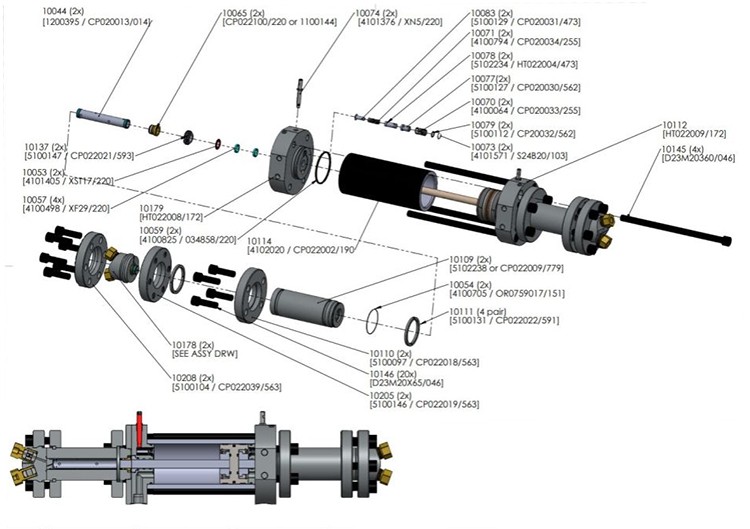

System Role: Interface flange between high-pressure cylinder and intensifier module in BFT pumps
