Collimation Tube MJ2260022 I-Head New Good Price Abrasive Water Jet Parts

Part Number	Alternative models	Description
HD001900	MJ0010139	Head Swivel Angle Adapter
MJ4980006	MJ0110020	Sapphire Nozzle
ZA110200	MJ0380291	Height Sensor Probe For 3D Head
ZA111000	MJ2260022	Collimation Tube I-Head And Jet 3D
PN200600	MJ2350006	Hose
HD300100	MJ9990002	Ajet 3D Head
4100442	OR0120030/151	Ring
4100920	OR0140020/151	O-Ring
4101560	OR0250040/151	O-Ring
5300048	OR0490030/151	O-Ring
4100704	OR0700020/151	O-Ring
4100705	OR0759017/151	O-Ring
	OR0885035/220	O-Ring
4101562	P7680325/220	Oil Filter Element
106810	S0356x2/426	Snap Ring
106779	S24B20/103	Retaining Ring
106334	TJ006016/133	Clamping Nut
107488	TJ006070/591	Abrasive head
106336	TJ006071/555	Bushing
107476	TJ006076/591	Basic body 6.35 mm

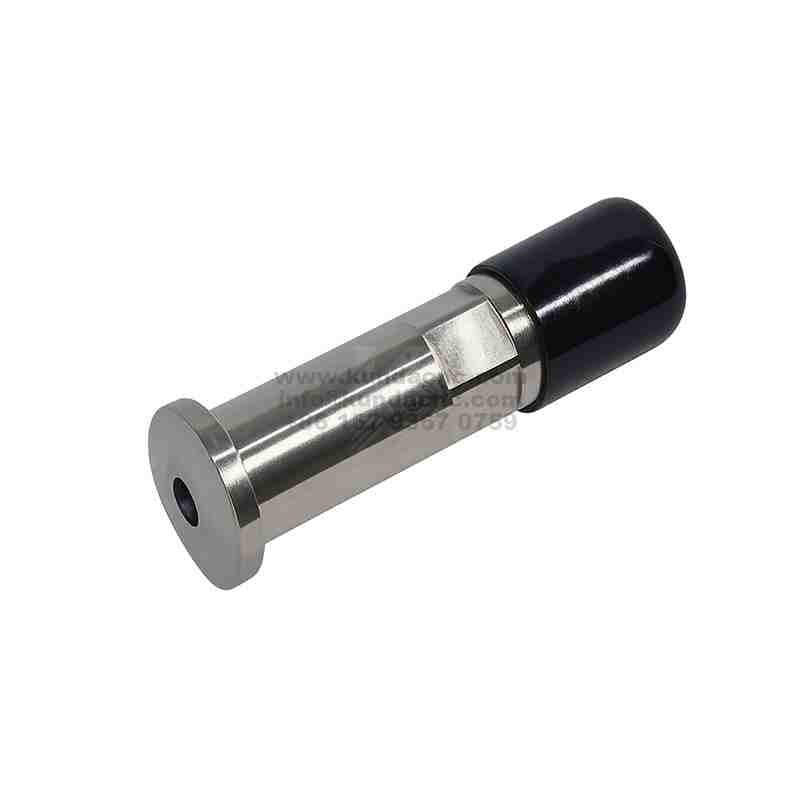

The MJ2260022 Collimation Tube is a key component in Waterjet Cutting Heads. It further straightens and stabilizes the high-pressure water jet after it is ejected from the jewel nozzle, ensuring a more focused and straight stream entering the mixing chamber. This process allows the abrasive to more efficiently combine with the high-pressure water, forming a high-energy jet, thereby improving cutting accuracy and efficiency.

1. Function: Straightens and aligns the high-pressure water jet, enhancing jet straightness and cutting stability.
2. Applicable Location: Installed between the jewel nozzle and the mixing chamber of the waterjet cutting head.
3. Material: Typically made of high-hardness tungsten carbide or composite materials, it offers excellent wear and erosion resistance.
4. Replacement Period: This is a consumable part and should be replaced regularly based on cutting time and precision requirements to maintain jet quality.

The high-quality MJ2260022 Collimation Tube significantly improves waterjet focus and cutting quality, making it an essential precision component in waterjet cutting heads.
