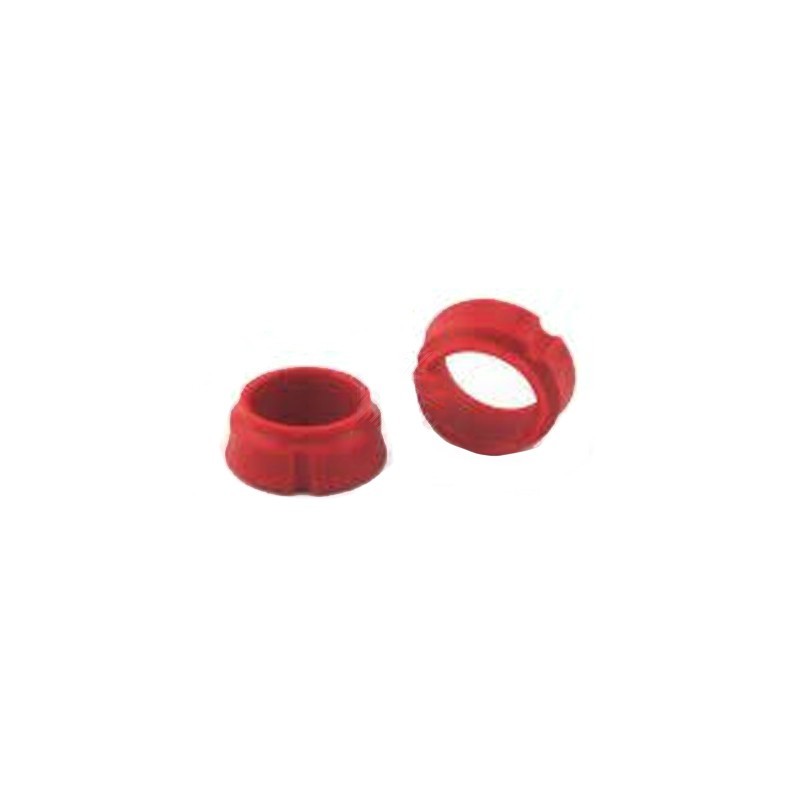

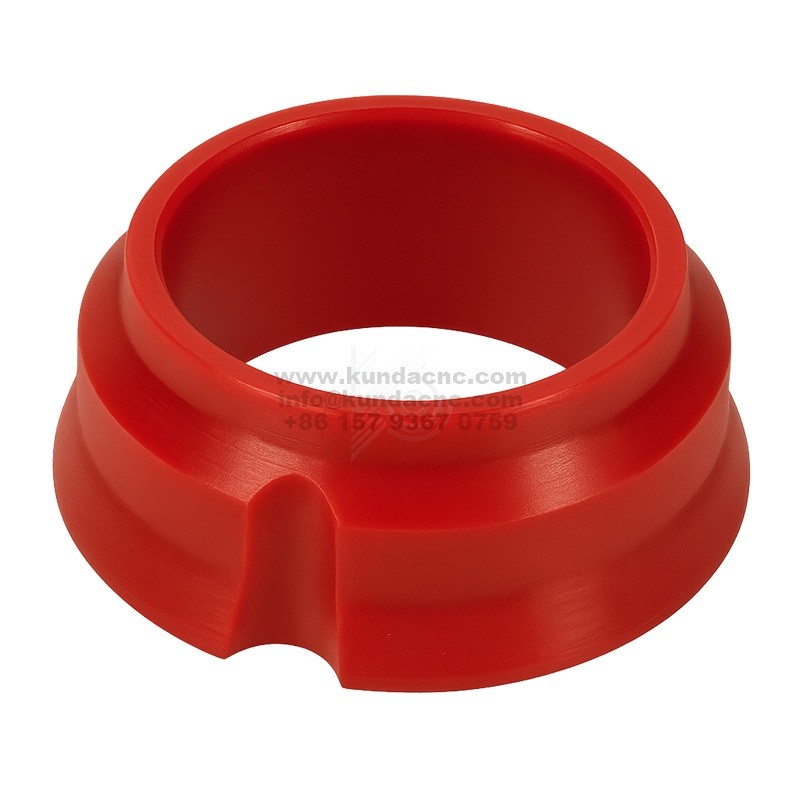

Center Ring HPU1329/220 New Good Quality Water Jet Parts

Short Description:

Center Ring
4100108
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.001 kg
Working Pressure: 4137 bar
Material: Plastic

INQUIRY

Details

Center Ring HPU1329/220 New Good Quality Water Jet Parts

Part Number	Alternative models	Description
MJ0380264	EL130200	Sensor
4204812	F1000401-220	Spring
900630	HD210200	Seal Kit for Cutting Head
	HD230700	Protective Cap
4100108	HPU1329/220	Center Ring
106644	HT022004/473	Piston
	HT022006/563	Flange
106568	HT022008/172	Connection Flange
5100117	HT022009/172	Connection Flange
5300115	HT022026/255	Сup spring
5102235	HT022027/527	Bearing Bush
5102040	HT022032/527	Back Ring
5300123	HT022033/591	Valve Body Dual Core
MJ0040236	HT022040/779	Hp Cylinder
4100731	HT022044/103	Retaining Ring
	HT022051/461	Spacer Ring
5102078	HT022061/337	Mounting Tool Nut
107138	HT022070/220	Hp Seal Assembly Dual Core

The HPU1329/220 Center Ring is a critical support component in the high-pressure seal assembly of a waterjet intensifier, ensuring the correct position and stability of each sealing element within the sealing system. This component withstands the impact of water flow in ultra-high-pressure environments, preventing seal displacement or deformation, thereby improving overall sealing performance and system reliability.

Function: Provides support and positioning for the seal assembly, ensuring stability during operation.
Applicable Location: Installed within the high-pressure seal assembly of a waterjet intensifier.
Material: Typically made of high-strength alloy steel or engineered polymer, it offers high-pressure, wear, and fatigue resistance.
Replacement Interval: As a pressure-resistant support component, it has a long lifespan. However, it should be replaced promptly if subjected to prolonged high-pressure operation or if wear or deformation is observed.

The high-quality HPU1329/220 Center Ring effectively enhances the stability and durability of the intensifier sealing system and is a crucial component for the safe and efficient operation of Waterjet Cutting Equipment.
