Abrasive Waterjet Mixing Tube Custom Extended Life Waterjet Mixing Tube Supplier

Short Description:

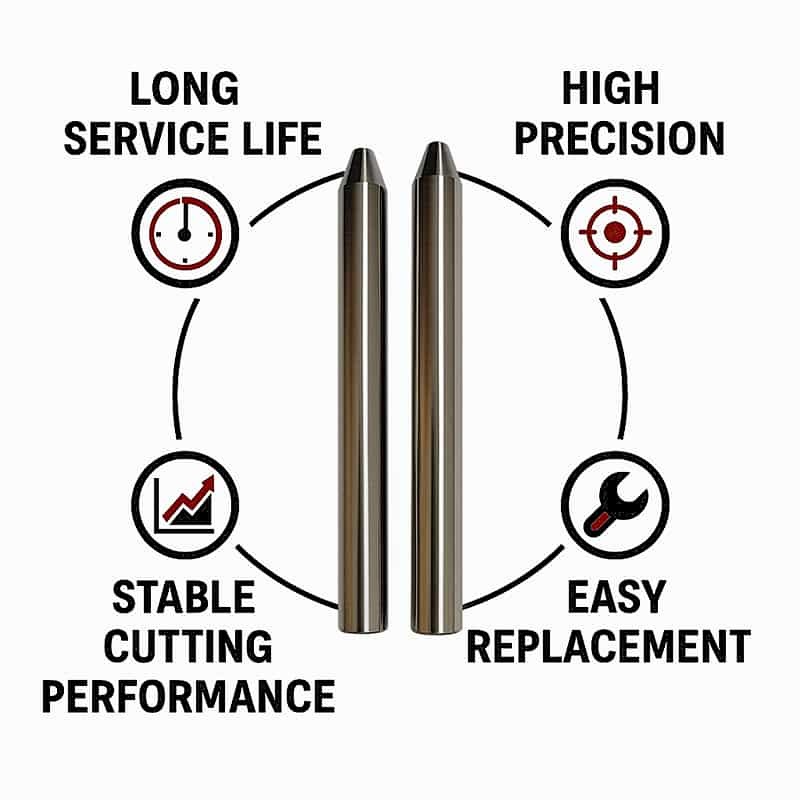

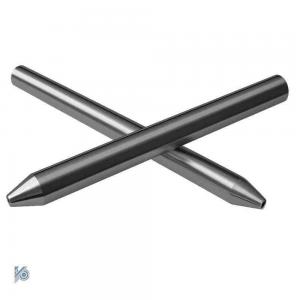

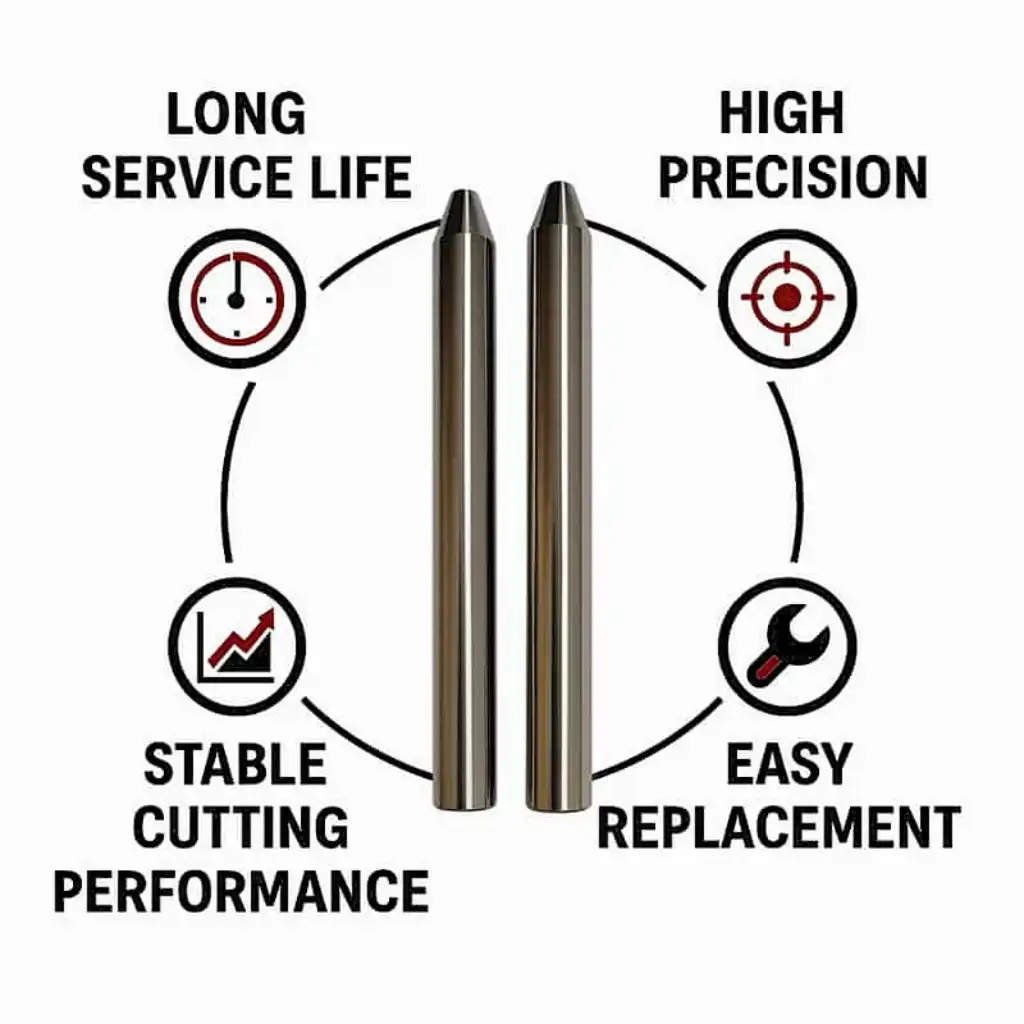

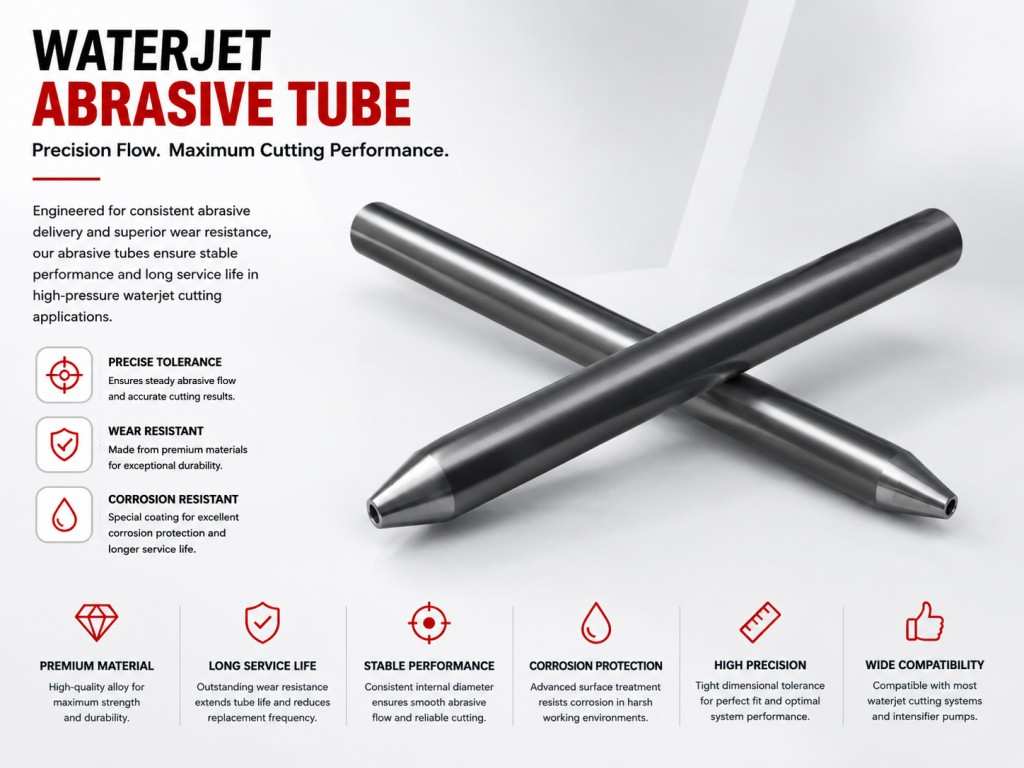

Abrasive Waterjet Mixing Tube
ID:0.030"-0.76mm/0.040"-1.02mm/0.050"-1.27mm/0.060"-1.52mm/0.070"-1.78mm
OD:6.35mm/7.14mm/9.47mm
Length: 76mm（3 inch）/101.6mm（4 inch）/152.4mm（6 inch）
Material: Stainless Steel, Tungsten Carbide
Minimum Order Quantity: 1 pieces

INQUIRY

Details

Abrasive Waterjet Mixing Tube Extended Life Replacement Supplier

Abrasive <a href=https://www.kundacnc.com/Waterjet-Mixing-Tube-Ultra-Wear-Resistant-Carbide-Focusing-Replacement-Mixing-Tube-p.html target='_blank'>Waterjet Mixing Tube</a> Custom <a href=https://www.kundacnc.com/Abrasive-Waterjet-Mixing-Tube-Custom-Extended-Life-Waterjet-Mixing-Tube-Supplier-p.html target='_blank'>Extended Life Waterjet Mixing Tube</a> Supplier

Product Introduction

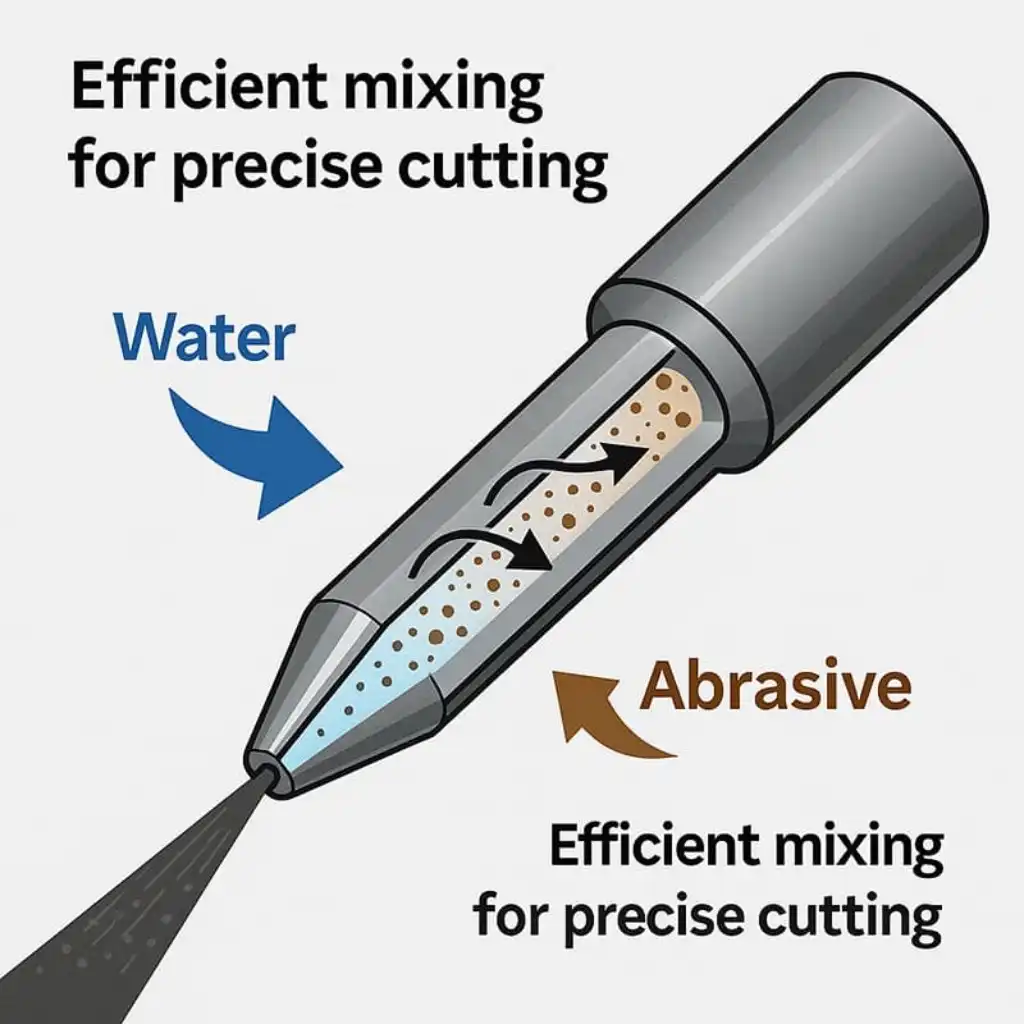

The abrasive waterjet mixing tube is a key wear part used in the Waterjet Cutting Head. It guides the high-pressure water and abrasive particles into a focused cutting jet. A good mixing tube helps improve cutting speed, edge quality, abrasive efficiency, and overall cutting stability.

KUNDA supplies waterjet mixing tubes in different outer diameters, inner diameters, lengths, and part numbers. Custom sizes, OEM supply, private label service, and bulk orders are available for Waterjet Machine users, distributors, repair companies, and equipment manufacturers.

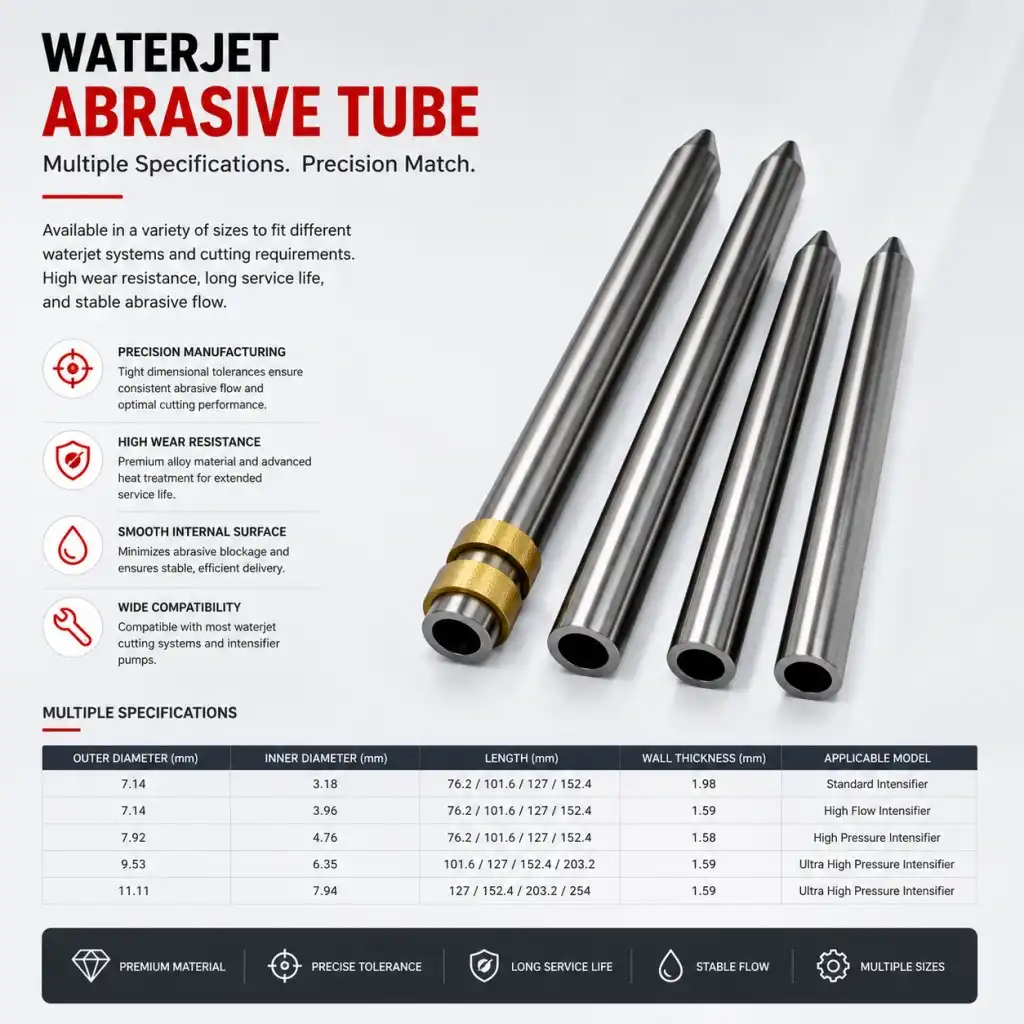

Standard Sizes

Outer Diameter	Inner Diameter	Length
6.35	0.76	76.2
6.35	1.02	76.2
6.35	1.02	101.6
7.14	0.76	76.2
7.14	1.02	76.2
7.14	0.76	101.6
7.14	1.02	101.6
9.47	0.76	76.2
9.47	0.76	101.6

Available Part Numbers

Part Number	Details
20457255	Mixing Tube 0.030"
20457256	Mixing Tube 0.040"
20457257	Mixing Tube 0.050"
20457258	Mixing Tube 0.060"
20457259	Mixing Tube 0.070"
100000-1	Mixing Tube 0.030"
100001-1	Mixing Tube 0.040"
100002-1	Mixing Tube 0.050"
100003-1	Mixing Tube 0.060"
303287	Mixing Tube 0.030"
303288	Mixing Tube 0.040"
303289	Mixing Tube 0.050"
303290	Mixing Tube 0.060"
4100601	Mixing Tube 0.030"
4100602	Mixing Tube 0.040"
4100603	Mixing Tube 0.050"
5200601	Mixing Tube
5200602	Mixing Tube
5200603	Mixing Tube

Why Mixing Tube Quality Matters

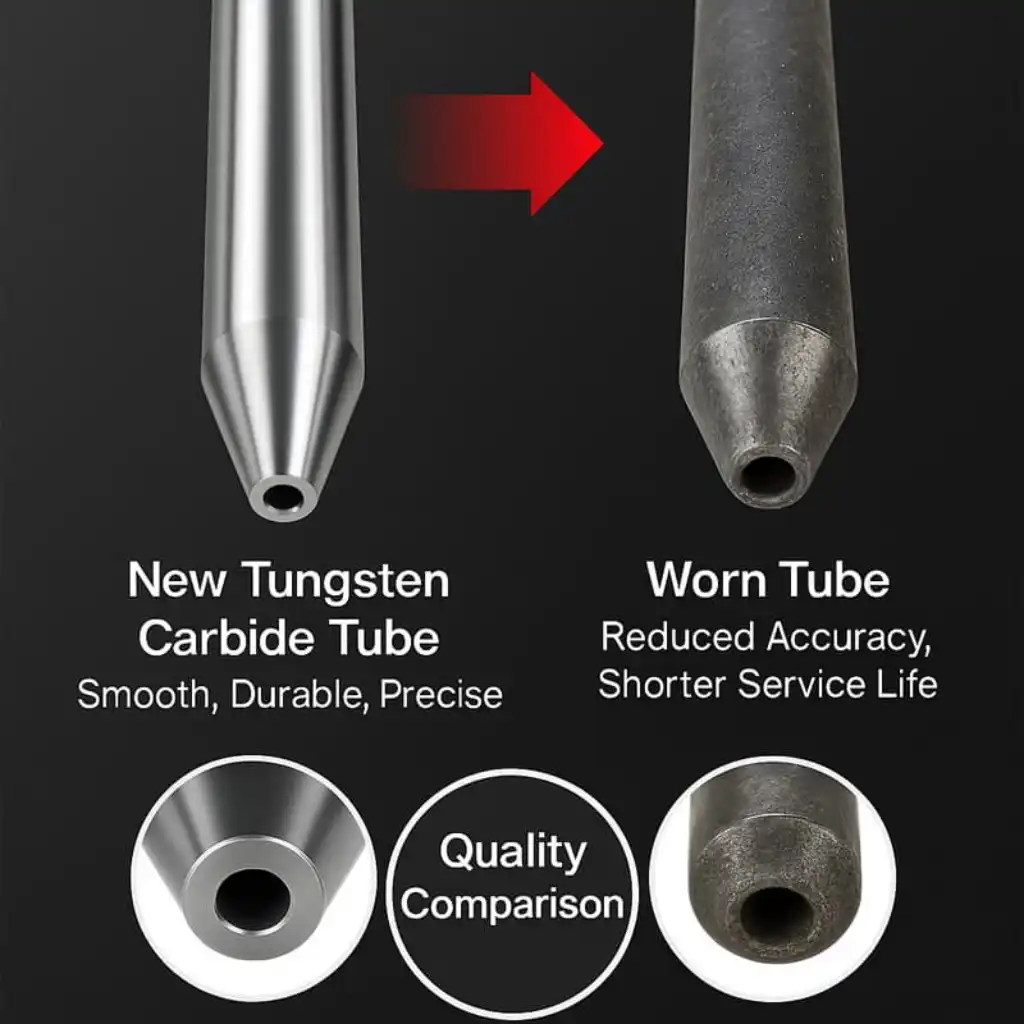

The mixing tube directly affects the final cutting jet. If the inner bore wears unevenly, the abrasive stream can become unstable, which may cause rough cutting edges, lower cutting accuracy, and higher abrasive consumption. A precise mixing tube helps keep the cutting jet concentrated and stable.

Extended Service Life

Waterjet mixing tubes work under strong abrasive impact for long periods. Wear-resistant material and accurate inner bore processing can help extend service life, reduce replacement frequency, and lower downtime during production.

Custom Mixing Tube Options

KUNDA can provide different lengths, outer diameters, inner diameters, and part number options according to customer requirements. Custom packaging, OEM branding, private label supply, and bulk orders are also available.

Suitable Applications

These abrasive waterjet mixing tubes can be used for cutting stainless steel, carbon steel, aluminum, titanium, glass, ceramic, marble, granite, composite materials, rubber, foam, and engineering plastics. They are suitable for Cnc Waterjet Machines, Abrasive Waterjet Systems, and Robotic Waterjet cutting equipment.

Abrasive Waterjet Mixing Tube Custom Extended Life <a href=https://www.kundacnc.com/Focusing-Nozzle-High-Efficiency-Waterjet-Nozzle-Mixing-Tube-Price-For-Cnc-Cutting-Machine-p.html target='_blank'>Waterjet Mixing Tube Supplier</a>

Why Choose KUNDA

KUNDA supplies Waterjet Cutting Machines, cutting head parts, pump parts, mixing tubes, Focusing Tubes, orifices, high-pressure tubing, accumulators, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce machine downtime, and keep waterjet systems running smoothly.
