60K Hoop 1-11077 for Waterjet Pump High Pressure Support
60K Hoop 1-11077 for WaterJet Pump High Pressure Support
| Part Number | Name |
|
014155-10 |
Orifice |
|
014201-9 |
ECL Ruby Orifice |
|
015849-5 |
60K Diamond Orifice |
|
014194-20-30 |
Mixing Tube |
|
1000003-15-40 |
Premium Mixing Tube |
|
014241-1 |
Mixing Tube Nut |
|
014197-1 |
ECL Mixing Chamber Assembly |
|
020694-1 |
Mixing Chamber Assembly |
|
014660-1 |
87K On/Off Valve Assembly |
|
014988-1 |
On/Off Valve Seal Kit |
|
019520-1 |
Cutting Head Clamp Assembly |
|
711933-1 |
Blast Disk |
|
012952-1 |
3/8 HP Insert（Double Cone） |
|
012252-1 |
100K Plug |
|
015093-1 |
1/4 Swivel Repair Kit |
|
049357-1 |
Swivel Body |
|
20452968 |
Cross |
|
20452971 |
Tee |
|
20453115 |
Elbow |
|
040015-1 |
Intensifier Seal Carrier |
|
020080-1 |
Low Pressure Piston |
|
018020-1 |
Ceramic Plunger Assembly |
|
001197-1 |
40K Seal Kit |
|
013383-1 |
Check Valve Body |
|
013051-1 |
Bleed Down Seat |
|
019309-1 |
Bleed Down Valve Assembly |
|
020323-1 |
Water Manifold |
|
1-11679-xxx |
O-ring |
|
1-11680-xxx |
Backup Ring |
|
B-5078-1 |
High Pressure Collar |
|
B-8428-1 |
Bleed Down Valve Piston |

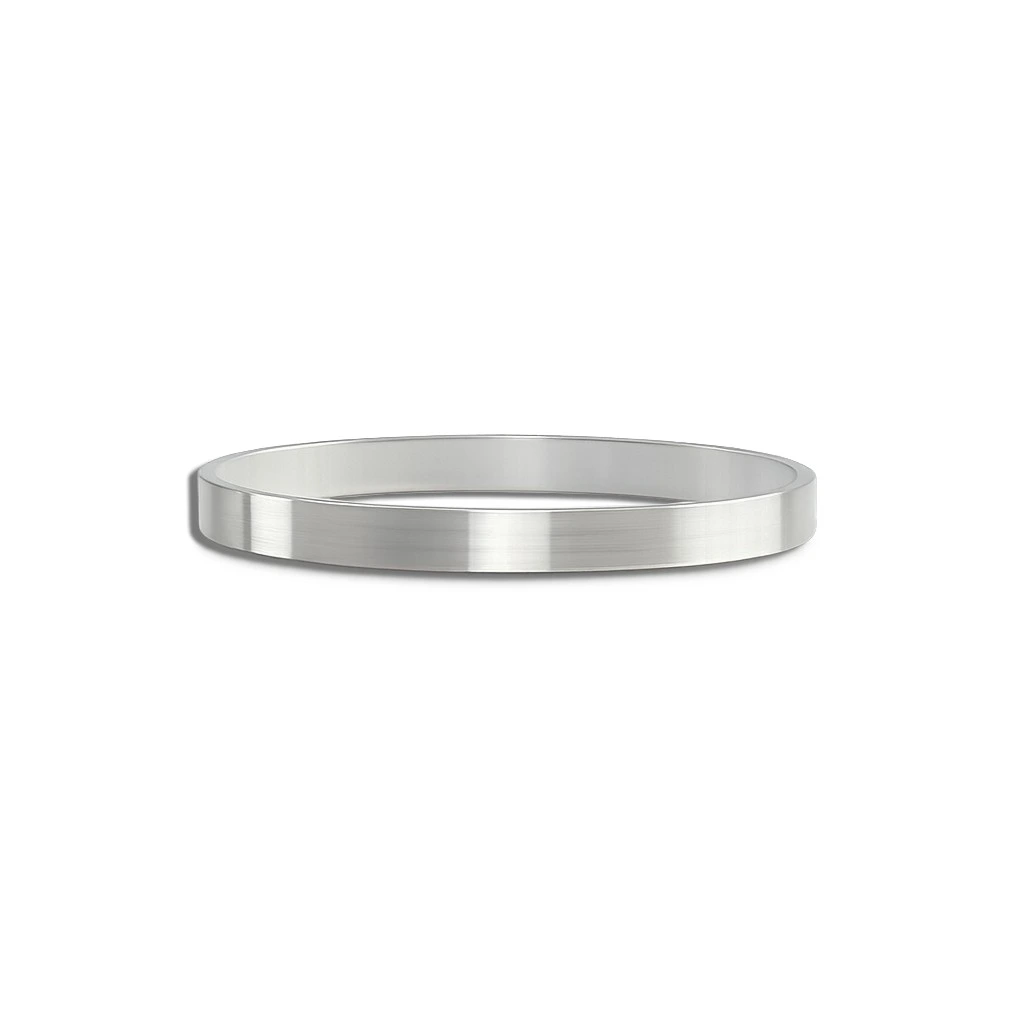

The 60K Retaining Ring (Part No. 1-11077) is a critical fastening and support component utilized within 60K high-pressure WaterJet Pump Systems. It is primarily installed inside the intensifier assembly, where it serves to secure internal sealing elements and maintain the structural integrity of the high-pressure cylinder during equipment operation.
This component helps ensure that seals and related assemblies remain precisely in position under conditions of extreme pressure, thereby safeguarding the reliability of the pump's performance and effectively mitigating the risk of leaks or component failure.
Despite its seemingly simple structure, this retaining ring plays a pivotal role in maintaining the overall safety and operational efficiency of the entire waterjet system.
Is the 60K Retaining Ring (Part No. 1-11077) a consumable part?
Yes—the 60K Retaining Ring (Part No. 1-11077) is classified as a "semi-consumable part."Although it does not wear out as rapidly as seals or O-rings, this component may still undergo deformation, abrasion, or a loss of its original clamping force over time due to prolonged high-pressure operation, repeated installation and removal, vibration, and mechanical stress.
It is recommended that this component be inspected regularly during routine maintenance procedures; should any signs of damage or deformation be detected, it must be replaced immediately to prevent subsequent failure of associated sealing assemblies.
Please contact our sales team if you have any inquiries!
