60K High Pressure Cylinder 1-11117 for Waterjet Pump Intensifier System
60K High Pressure Cylinder 1-11117 for Waterjet Pump Intensifier System
| Part Number | Name |
|
014155-10 |
Orifice |
|
014201-9 |
ECL Ruby Orifice |
|
015849-5 |
60K Diamond Orifice |
|
014194-20-30 |
Mixing Tube |
|
1000003-15-40 |
Premium Mixing Tube |
|
014241-1 |
Mixing Tube Nut |
|
014197-1 |
ECL Mixing Chamber Assembly |
|
020694-1 |
Mixing Chamber Assembly |
|
014660-1 |
87K On/Off Valve Assembly |
|
014988-1 |
On/Off Valve Seal Kit |
|
019520-1 |
Cutting Head Clamp Assembly |
|
711933-1 |
Blast Disk |
|
012952-1 |
3/8 HP Insert（Double Cone） |
|
012252-1 |
100K Plug |
|
015093-1 |
1/4 Swivel Repair Kit |
|
049357-1 |
Swivel Body |
|
20452968 |
Cross |
|
20452971 |
Tee |
|
20453115 |
Elbow |
|
040015-1 |
Intensifier Seal Carrier |
|
020080-1 |
Low Pressure Piston |
|
018020-1 |
Ceramic Plunger Assembly |
|
001197-1 |
40K Seal Kit |
|
013383-1 |
Check Valve Body |
|
013051-1 |
Bleed Down Seat |
|
019309-1 |
Bleed Down Valve Assembly |
|
020323-1 |
Water Manifold |
|
1-11679-xxx |
O-ring |
|
1-11680-xxx |
Backup Ring |
|
B-5078-1 |
High Pressure Collar |
|
B-8428-1 |
Bleed Down Valve Piston |

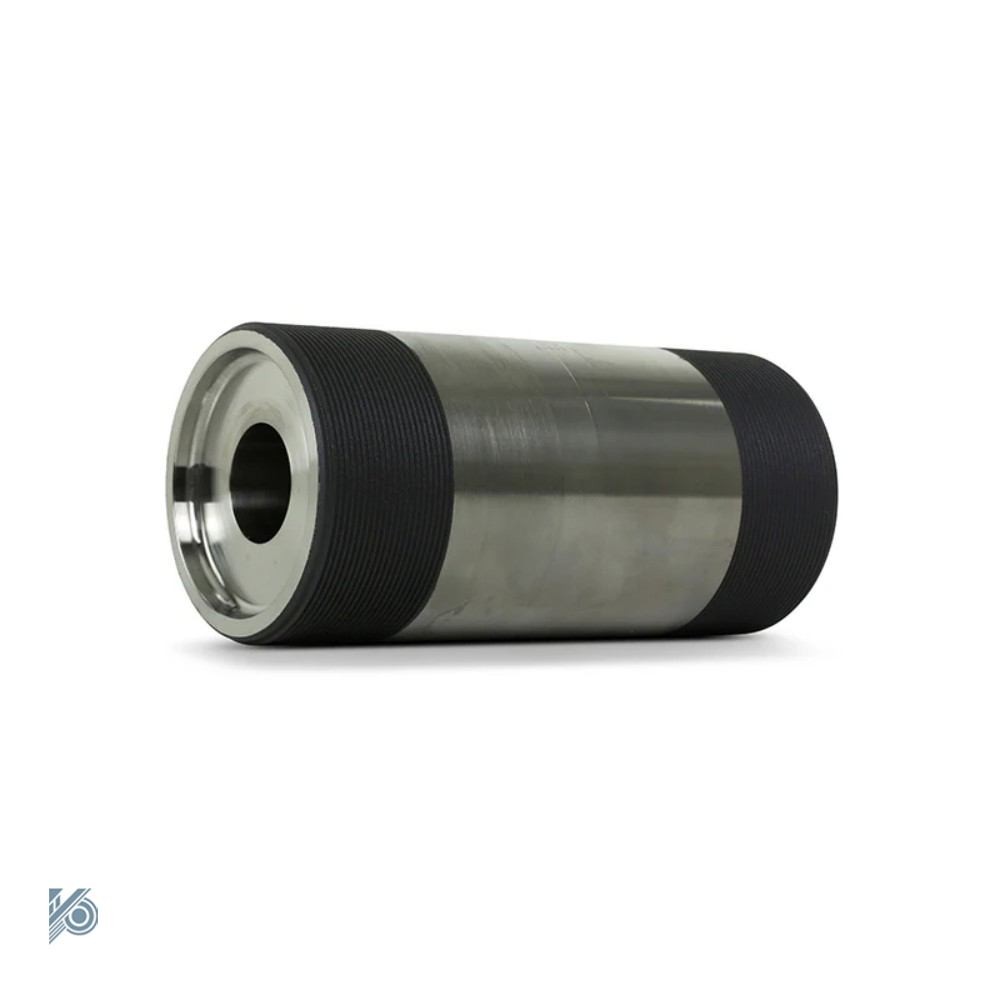

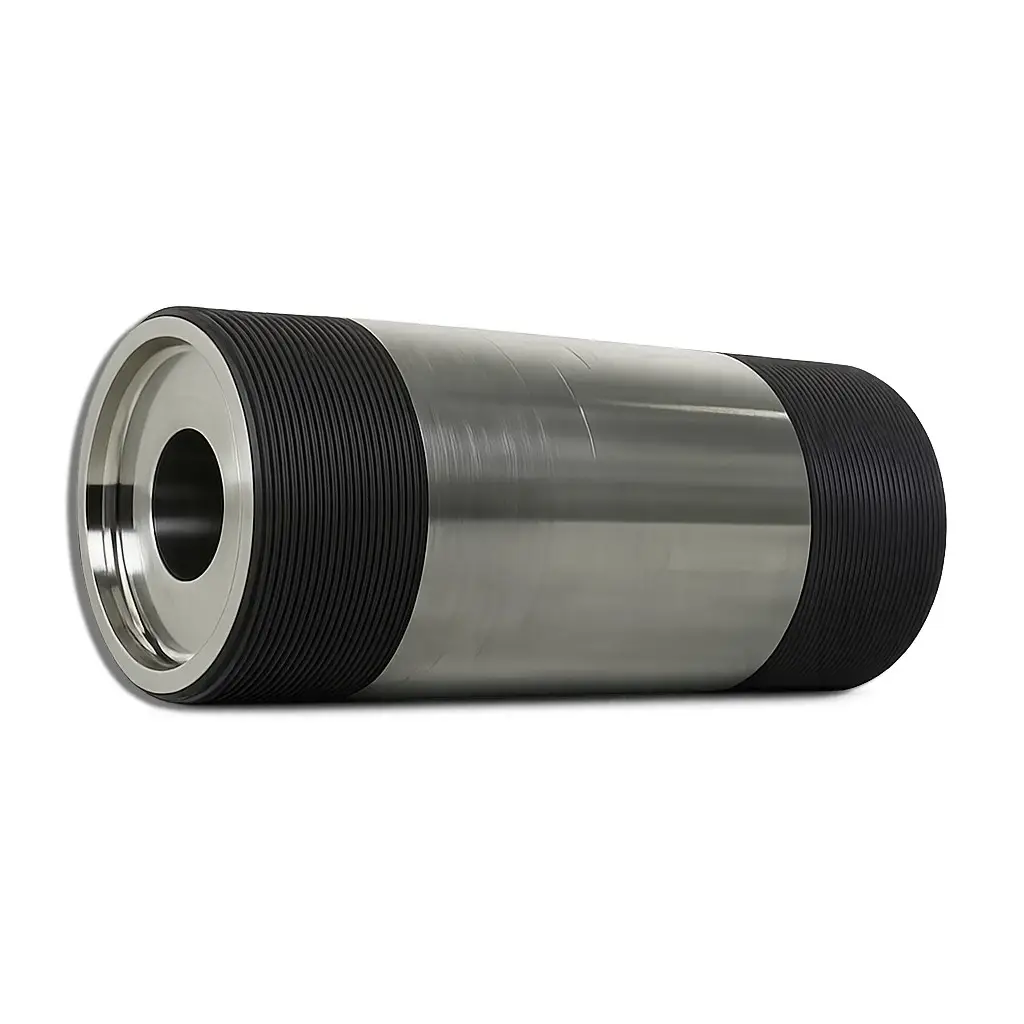

The 60K High-Pressure Cylinder 1-11117 is one of the core components in the 60K Waterjet Booster Pump system. It is primarily responsible for converting hydraulic energy into ultra-high-pressure water flow, thereby providing stable pressure support for efficient waterjet cutting operations.
This high-pressure cylinder operates under extremely high-pressure conditions, and its performance directly affects cutting results, pumping efficiency, and the reliability of the entire system. Selecting a high-quality high-pressure cylinder ensures smooth equipment operation, effectively reduces downtime, and extends the service life of the booster pump.
This component is widely used in the repair, maintenance, and replacement of Waterjet Pump parts.
Is the 60K High-Pressure Cylinder 1-11117 a wear-and-tear part?
Yes—the 60K High-Pressure Cylinder 1-11117 is considered a major wear-and-tear part.Since this component must operate continuously under ultra-high pressure, high friction, and repeated piston reciprocating motion, the inner walls of the cylinder will gradually wear over time. Failure to replace it promptly may lead to seal failure, pressure loss, leaks, and other malfunctions, potentially causing severe damage to the entire pressure-boosting system.
Therefore, regular inspection and timely replacement of this component are crucial for maintaining the stable operational performance of the Waterjet Cutting System.
Please contact our sales team if you have any inquiries!
