5 Axis Waterjet Cutting Machine Abrasive Garnet Waterjet Cutting Machine Supplier

Short Description:

Name:5 Axis Waterjet Cutting Machine
Brand:KUNDA
Cutting Size:6000*4000mm/3000*1500mm/4000*2000/3000*2000mm
Pump:Jet50
Cutting materials: marble, tiles, glass, steel, etc.
Accuracy:Cutting:±0.1mm/Repeatability:±0.05mm
Traverse Speed:6000-15000mm/min
Structure:Cantilever/Gantry/Fully Enclosed
Delivery time: 25 days
Warranty period: 1 year

INQUIRY

Details

5 Axis Abrasive Waterjet Cutting Machine for Precision Industrial Cutting

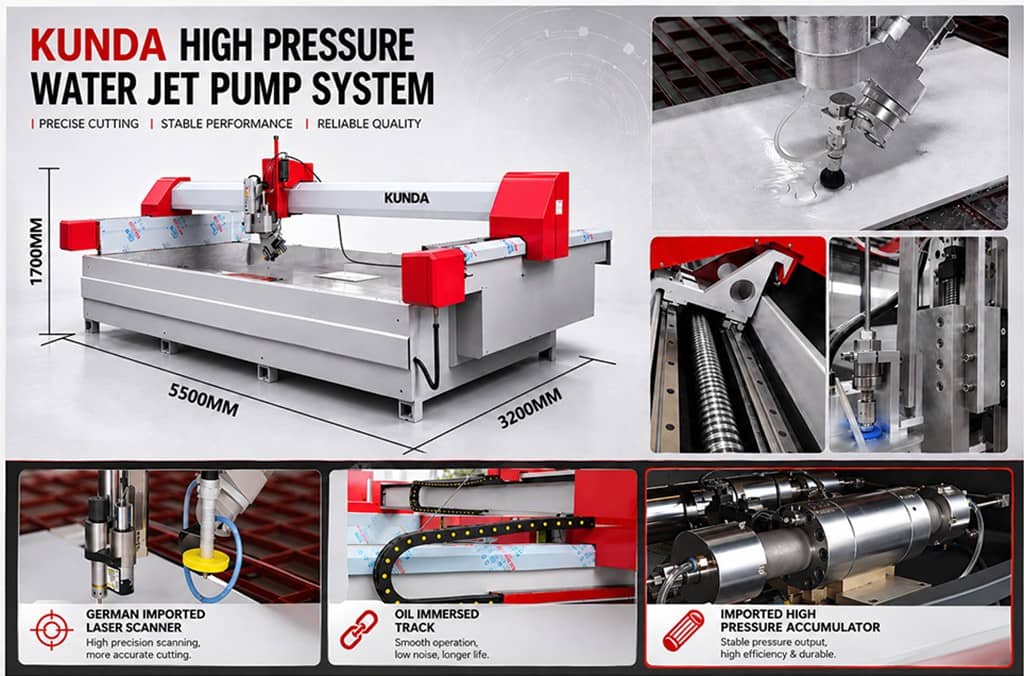

5 Axis Waterjet Cutting Machine Abrasive Garnet <a href=https://www.kundacnc.com/Waterjet-Cutting-Equipment-China-Supplier-Water-Jet-Marble-Cutting-Machine-Price-p.html target='_blank'>Waterjet Cutting Machine Supplier</a>

Product Introduction

The 5 Axis Waterjet Cutting Machine is a high-precision abrasive garnet Waterjet Cutting Solution designed for complex industrial cutting applications. Equipped with advanced 5-axis CNC control technology and a high-pressure Abrasive Waterjet System, this machine performs precise multi-angle cutting, bevel cutting, and complex contour processing on metal, stone, glass, ceramics, composites, and plastics. Using garnet abrasive combined with ultra-high pressure water flow, the machine provides strong cutting capability while maintaining smooth cutting edges and excellent dimensional accuracy.

Technical Specifications

Model	KD1015	KD2015	KD3015	KD3020	KD4020
Structure	Cantilever / Gantry / Fully Enclosed
Cutting Table Size	1200 × 1700mm	2200 × 1700mm	3200 × 1700mm	3200 × 2200mm	4200 × 2200mm
X Axis Stroke	1000mm	2000mm	3000mm	3000mm	4000mm
Y Axis Stroke	1500mm	1500mm	1500mm	2000mm	2000mm
Z Axis Stroke	130mm
Cutting Accuracy	±0.1mm
Repeatability	±0.05mm
Traverse Speed	6000 - 15000mm/min
Power Supply	220V / 380V / 415V, 50/60Hz

Advanced 5 Axis Cutting Technology

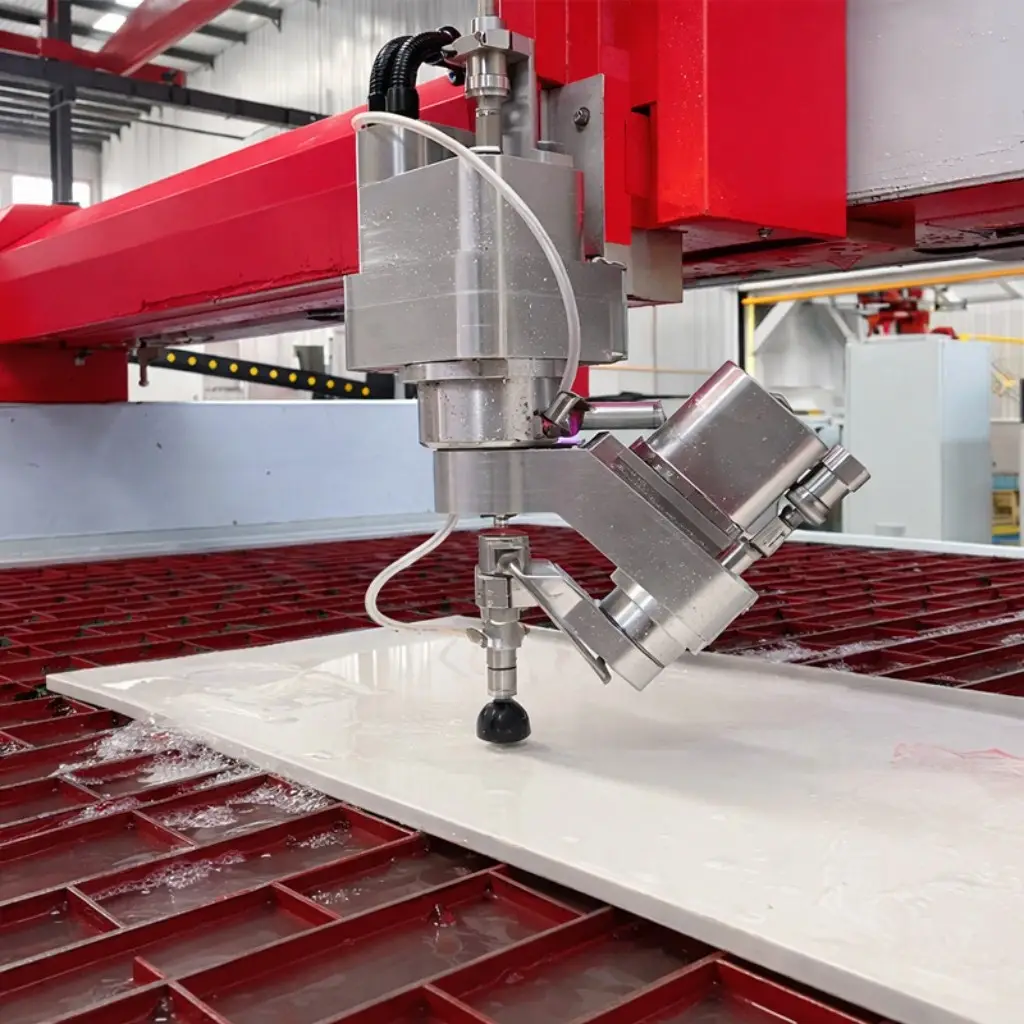

This 5 axis waterjet cutting machine adopts advanced multi-axis CNC motion control technology to achieve precise angle cutting and complex three-dimensional cutting operations. Compared with traditional 3-axis waterjet systems, the 5-axis structure allows the cutting head to automatically adjust cutting angles during processing, helping reduce taper, improve edge quality, and achieve more accurate cutting results on thick materials and complex shapes.

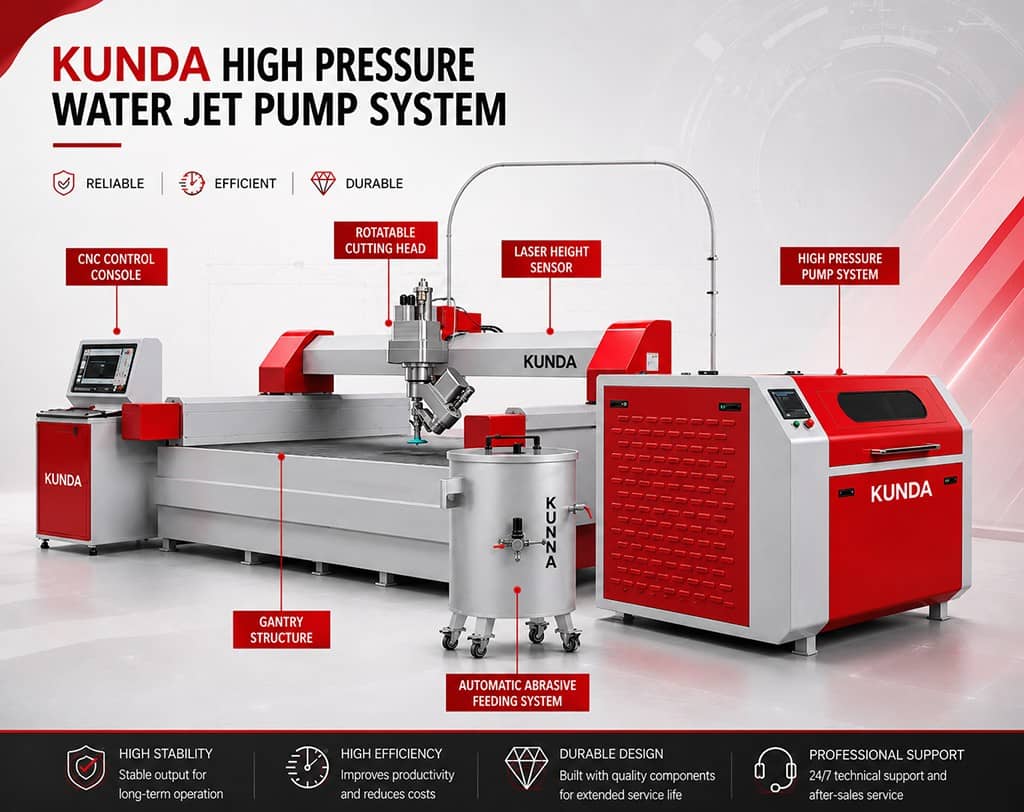

5 Axis Waterjet Cutting Machine Abrasive <a href=https://www.kundacnc.com/Abrasive-Waterjet-Equipment-Gantry-Granite-Foam-Water-Jet-Cutting-Machine-Price-p.html target='_blank'>Garnet Waterjet Cutting Machine</a> Supplier

Powerful Abrasive Garnet Waterjet Cutting Performance

The machine uses garnet abrasive combined with ultra-high pressure water flow to achieve strong and stable cutting capability for various hard materials. The abrasive Waterjet Cutting Process efficiently cuts stainless steel, carbon steel, aluminum, copper, titanium, marble, granite, glass, ceramic tiles, rubber, plastics, and composite materials without generating heat during operation.

Cutting Speed Reference

Material	Thickness	320MPa	380MPa	420MPa
Aluminum	6mm	400-520mm/min	460-590mm/min	500-680mm/min
Stainless Steel	13mm	80-120mm/min	100-150mm/min	125-180mm/min
Glass	10mm	600-700mm/min	700-800mm/min	820-900mm/min
Marble	20mm	400-500mm/min	600-700mm/min	750-850mm/min
Ceramic Tile	15mm	1200-1400mm/min	1400-1500mm/min	1600-1800mm/min

High Precision and Smooth Cutting Quality

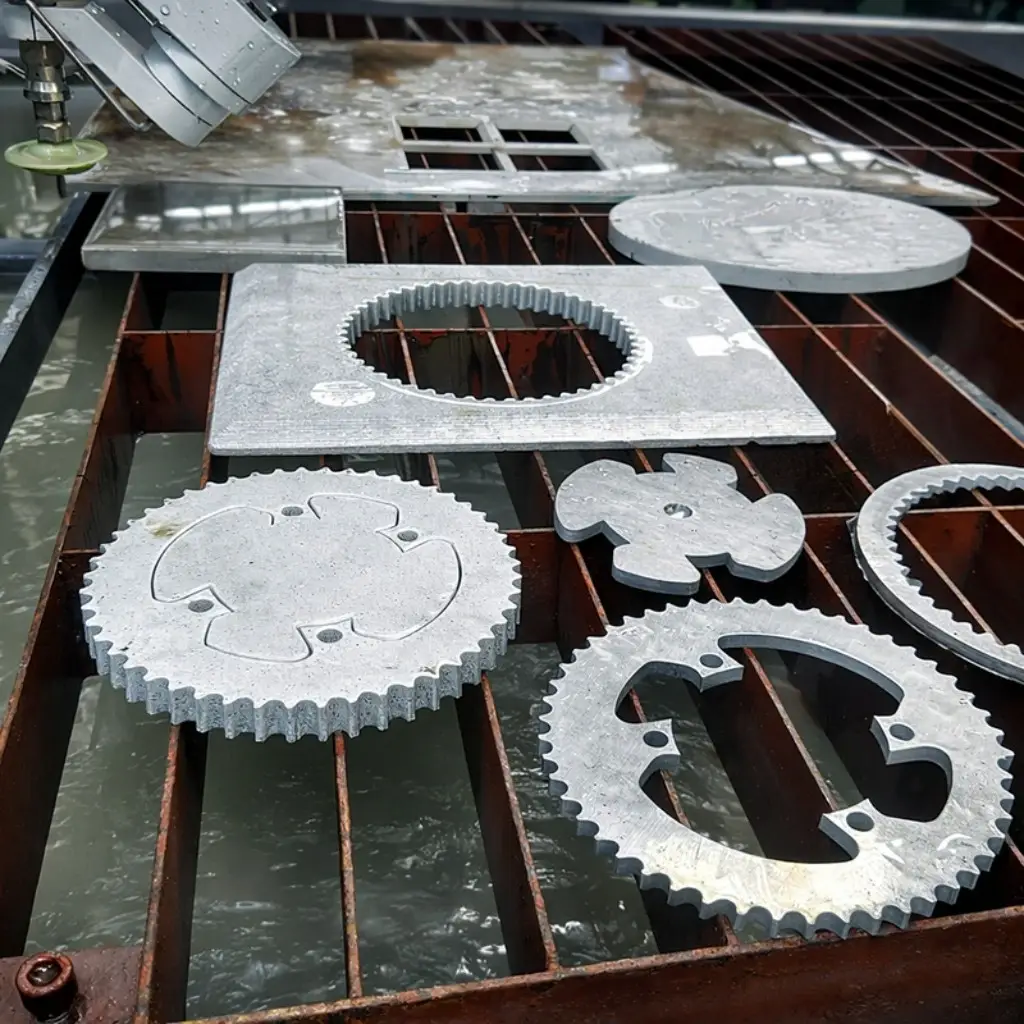

The stable CNC control system and high-pressure abrasive cutting technology help the machine achieve excellent cutting precision and smooth cutting surfaces. Complex patterns, bevel edges, irregular contours, and precision industrial components can be processed efficiently while maintaining high dimensional accuracy.

5 Axis Waterjet Cutting Machine Abrasive Garnet Waterjet Cutting Machine Supplier

Durable Industrial Structure and Stable Operation

The 5 axis abrasive waterjet cutting machine is manufactured with a heavy-duty machine frame, stable motion control system, and durable high-pressure components to ensure long-term industrial operation. High-quality guide rails, servo systems, and hydraulic components help improve machine reliability and reduce maintenance frequency.

Optional Automation and Intelligent Upgrades

KUNDA can provide optional laser height measurement systems, automatic loading and unloading systems, soft water treatment systems, customized CNC control systems, dust collection systems, and robotic automation solutions according to different production requirements. These optional upgrades help improve cutting precision, reduce labor costs, and increase overall production efficiency.

Wide Industrial Applications

This abrasive garnet waterjet cutting machine is widely used in aerospace manufacturing, automotive processing, metal fabrication, shipbuilding, architectural decoration, stone countertop processing, glass cutting, ceramic manufacturing, machinery fabrication, and industrial custom production industries.

5 Axis Waterjet Cutting Machine Abrasive Garnet Waterjet Cutting Machine Supplier

Why Choose KUNDA Waterjet Cutting Solutions

KUNDA provides professional waterjet cutting solutions for global industrial customers. We can supply 5-axis waterjet cutting machines, abrasive waterjet systems, pure Waterjet Machines, high-pressure Intensifier Pumps, Robotic Waterjet solutions, CNC cutting tables, cutting heads, accumulators, high-pressure tubing, spare parts, and customized automation systems.

Contact Us

If you are looking for reliable 5 axis waterjet cutting machines, abrasive garnet waterjet systems, or customized CNC waterjet solutions, please feel free to contact KUNDA for more information and professional support.
