Product Introduction

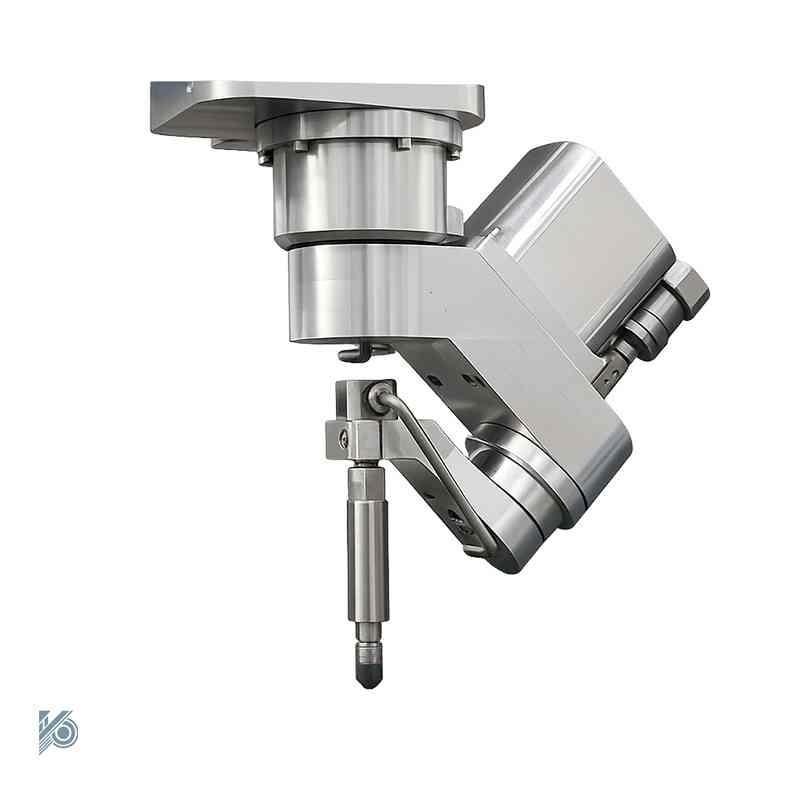

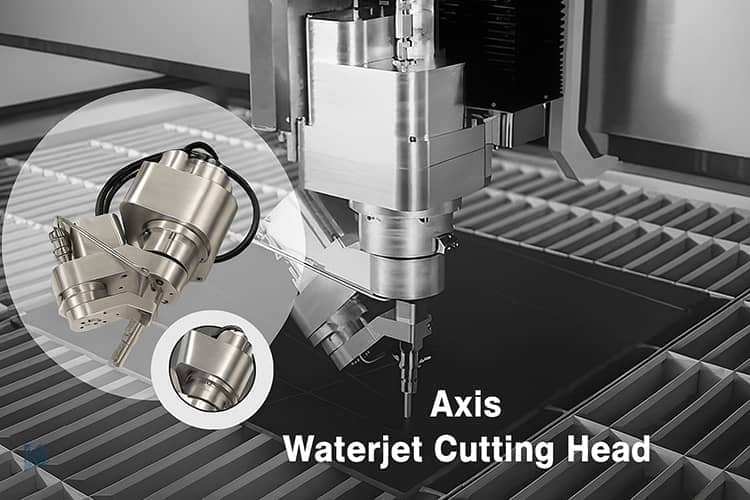

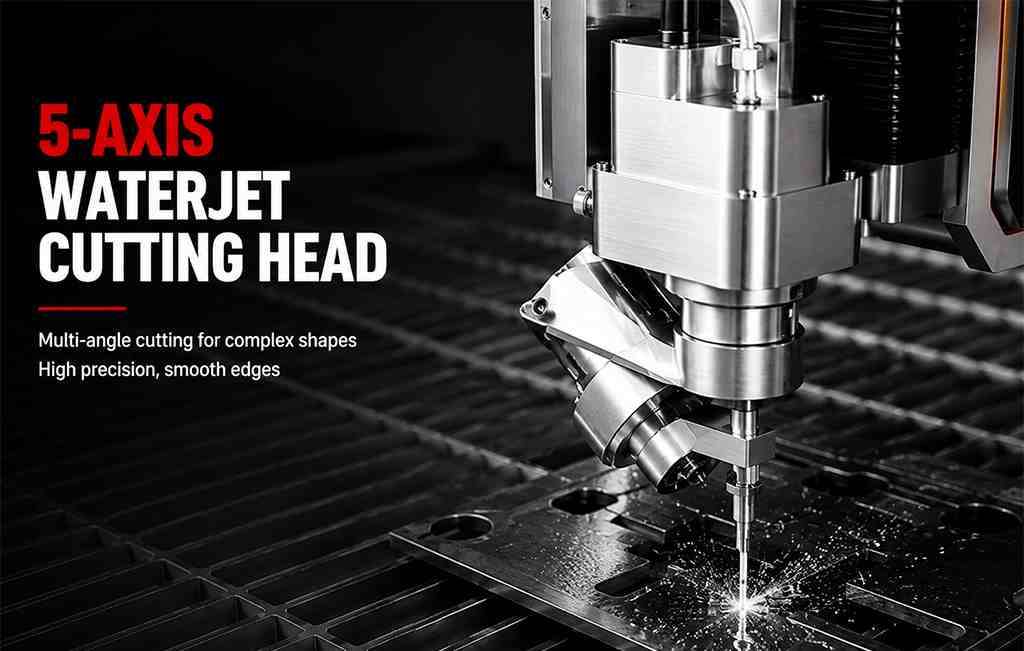

The 5 Axis Waterjet Cutting Head is a high-performance cutting solution designed for precision CNC waterjet systems requiring fast cutting speed, complex angle processing, and superior edge quality. Equipped with advanced multi-axis motion technology, this five axis water jet cutting head can perform bevel cutting, chamfer cutting, dynamic angle adjustment, and three-dimensional contour processing on a wide range of materials including metal, stone, glass, ceramics, composites, and engineering plastics.
The optimized design, stable operation, and ultra-high pressure compatibility make this cutting head an ideal solution for manufacturers seeking higher cutting efficiency, improved accuracy, and greater production flexibility.
Technical Specifications
| A-axis Rotating Range | ±70° |
| C-axis Rotating Range | Infinite |
| Positioning Precision | 1.5' |
| Max Rotational Speed | 50 RPM |
| Cutting Precision at Fixed Point | ±0.05mm |
| Rotating Radius | 261mm |
| Automatic Height Measurement | Optional |

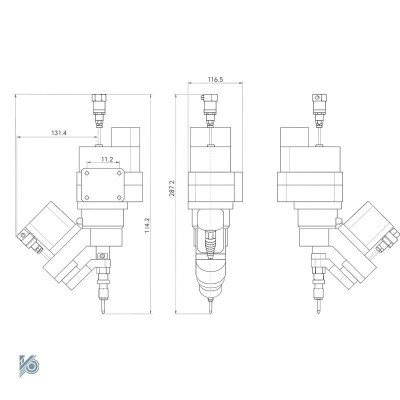

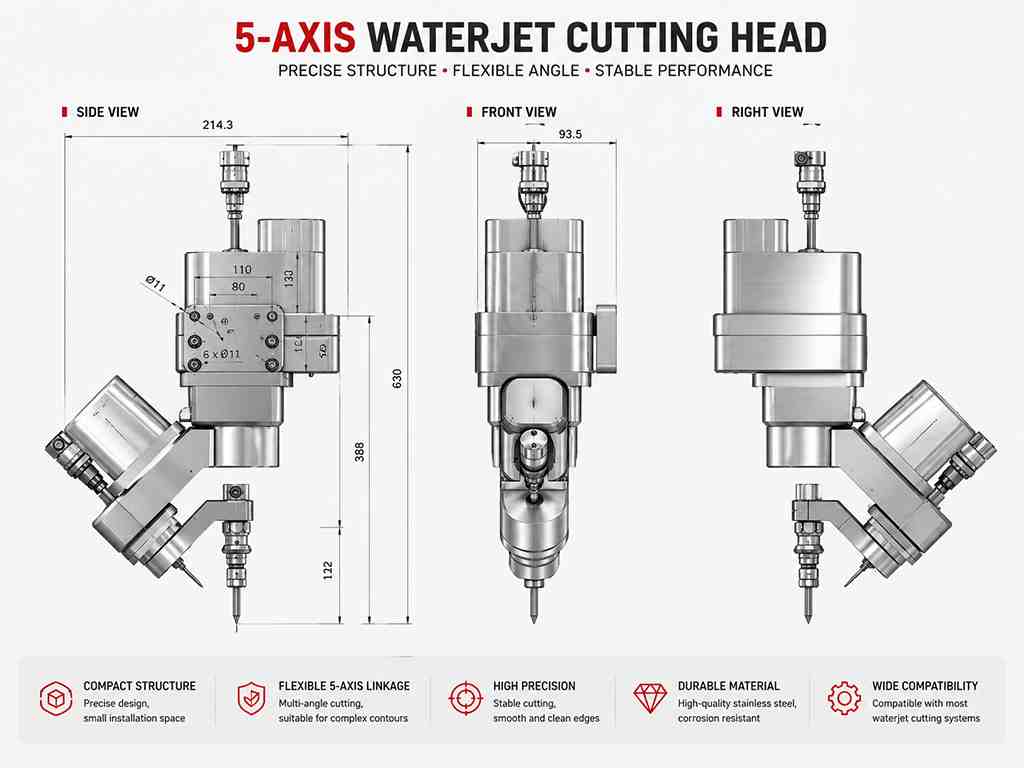

| Max Height | 607mm |
| Max Length | 376mm |
| Max Width | 161mm |
| High Pressure Tube Inlet Thread | 1/4 Inch |
Advanced 5 Axis Cutting Technology

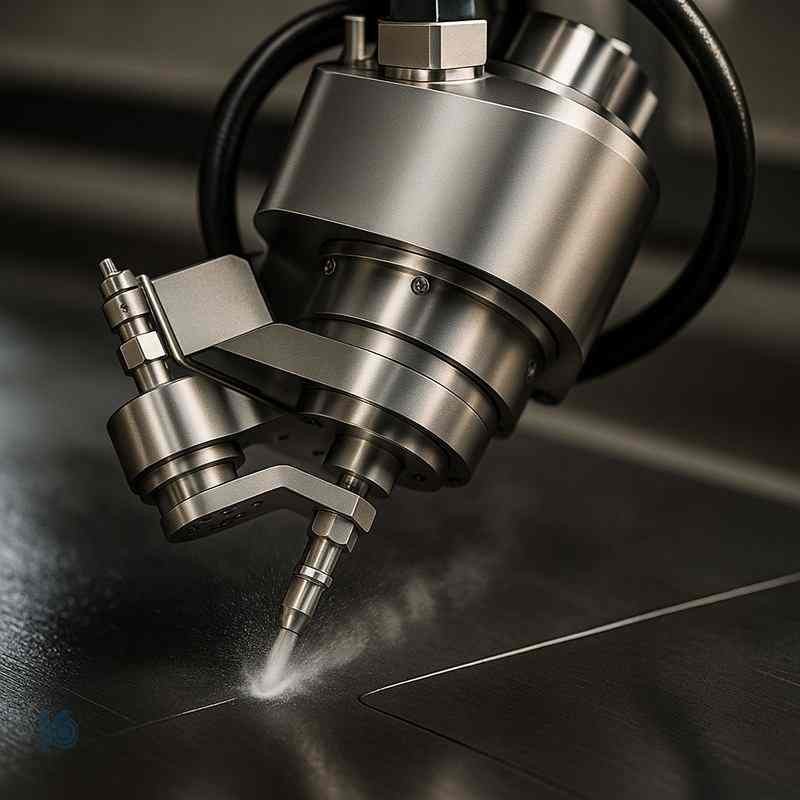

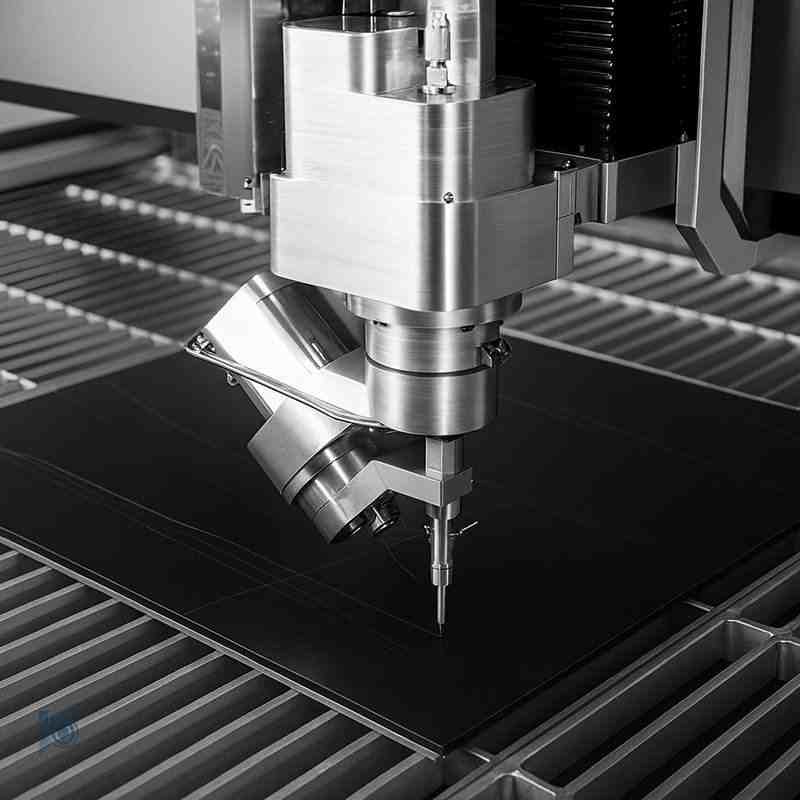

This 5 axis waterjet cutting head utilizes advanced multi-axis control technology to automatically adjust cutting angles during operation. Compared with traditional vertical cutting heads, the five-axis design allows manufacturers to process complex bevels, angled edges, weld preparations, and three-dimensional parts with greater precision.
The flexible movement capability significantly improves the ability to manufacture high-value components while reducing secondary machining operations and production time.
Fast Cutting Speed and Higher Productivity
The Fast Speed Waterjet Cutting Head is engineered to maximize cutting efficiency while maintaining exceptional cutting quality. The optimized internal abrasive flow design helps deliver a stable and concentrated cutting stream, allowing faster processing speeds without compromising accuracy.
Higher cutting efficiency helps manufacturers increase production output, shorten lead times, and improve overall equipment utilization.
Dynamic Taper Compensation Technology
One of the key advantages of this five axis water jet cutting head is its ability to reduce cutting taper and improve finished edge quality. The advanced motion system automatically compensates for cutting angles during processing, helping achieve straighter edges and more accurate dimensions.
This significantly reduces secondary finishing operations while improving overall product quality.
Compatible with Ultra High Pressure Waterjet Systems
This 5 axis waterjet cutting head is designed to operate with ultra-High Pressure Waterjet Pumps and abrasive cutting systems. It can efficiently process stainless steel, carbon steel, aluminum, titanium, marble, granite, glass, ceramic tiles, composite materials, rubber, and various industrial materials.
The durable design ensures stable cutting performance even under continuous high-pressure operation.

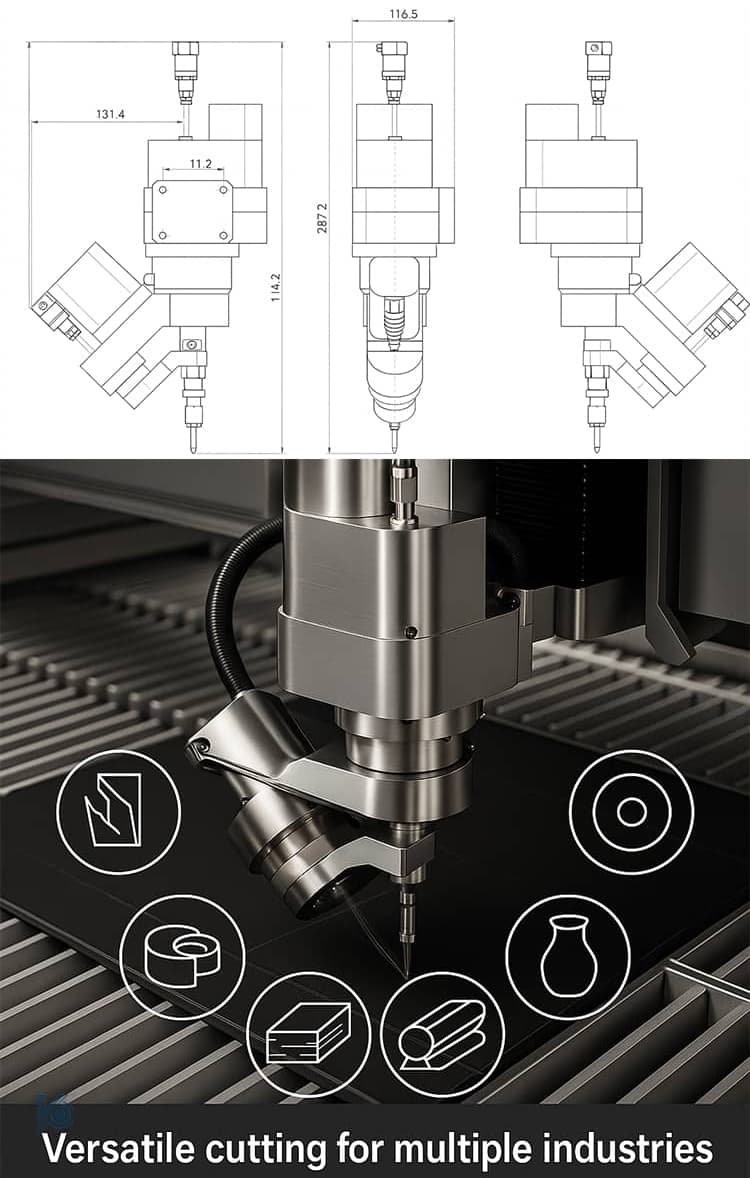

Applications of 5 Axis Waterjet Cutting Heads
- Bevel Cutting
- Chamfer Cutting
- Weld Preparation
- Metal Fabrication
- Stone and Marble Processing
- Glass Cutting
- Ceramic Tile Cutting
- Composite Material Processing
- Aerospace Components
- Automotive Parts Manufacturing
Durable Construction and Long Service Life
Manufactured using high-quality materials and precision-engineered components, this five axis water jet cutting head is designed for long-term reliability and durability.
The wear-resistant structure helps reduce maintenance frequency, lower operating costs, and extend the service life of critical cutting components.
Easy Integration and Custom Solutions
The 5 axis waterjet cutting head can be integrated into various CNC waterjet cutting machines and automation systems. Whether for new equipment installations, machine upgrades, or replacement projects, KUNDA can provide customized configurations and technical support according to different customer requirements.
Frequently Asked Questions
What is a 5 axis waterjet cutting head?
A 5 axis waterjet cutting head allows the nozzle to tilt and rotate during cutting, enabling bevel cutting, chamfer cutting, taper compensation, and complex contour processing.
What materials can be cut with a 5 Axis Waterjet Head?
It can cut stainless steel, carbon steel, aluminum, titanium, marble, granite, glass, ceramic, composites, rubber, plastics, and many other industrial materials.
Does this cutting head support dynamic taper compensation?
Yes. The advanced motion control system can automatically adjust cutting angles to reduce taper and improve edge quality.
Can this cutting head be installed on existing Waterjet Machines?
Yes. It can be integrated with many CNC Waterjet Cutting Systems and ultra-High Pressure Pump configurations.
