WaterWaterjet-Fiberglass-Good-Quality-5-Axis-Water-Jet-For-Sale-p.html target='_blank'>Jet Cutter Head Good Quality Abrasive Water Jet Cutting Machines

A-axis Rotating Range	±70。
C-axis Rotating Range	Infinite
Positioning Precision	1.5’
Max Rotational Speed	50RPM
Cutting precision at fixed point	±0.05mm
Rotating Radius	261mm
Automatic Heigh Measurement	No (The automatic height measurement function requires an additional charge)

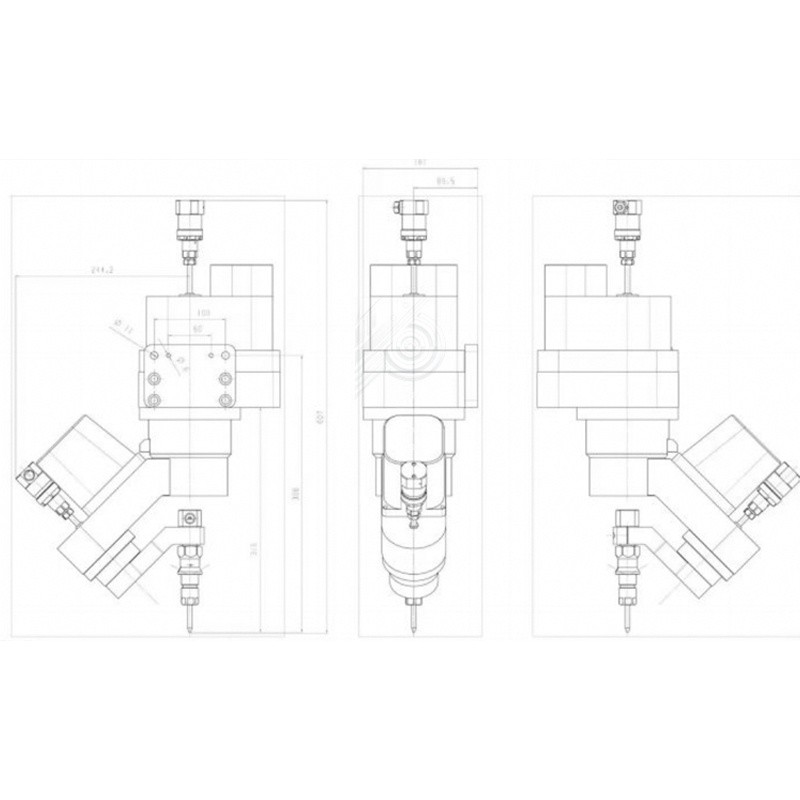

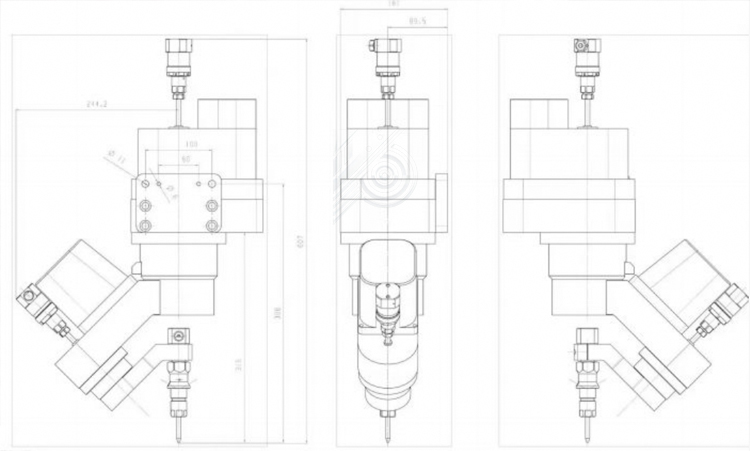

Main Measurement
Max. Height	607mm
Max. Length	376mm
Max. Width	161mm
High Pressure Tube Inlet Threading	1/4 Inch

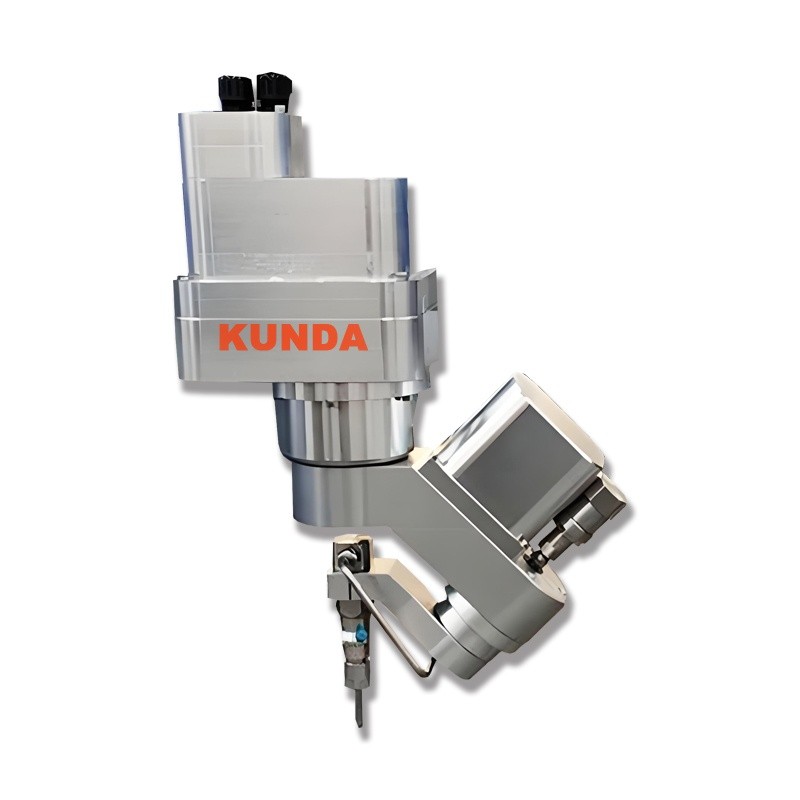

‌The Waterjet Cutter Head is a high-pressure waterjet cutting equipment component that can move and rotate flexibly in five directions‌.

The Waterjet Cutter Head adds two rotating axes to the Waterjet Head, enabling it to rotate on the cutting plane, thereby achieving 100% cutting angle. This design gives the five-axis Waterjet Cutting Head stronger processing flexibility and precision advantages, enabling it to easily cope with the cutting needs of complex shapes‌.

Specifically, the two rotating axes (usually the A axis and the C axis) of the five-axis Waterjet Cutting Head can rotate at the same time, while the other axis (the B axis) moves in a certain direction (such as the Y axis). This kind of movement enables the cutting head to cut at any angle, greatly improving the cutting accuracy and surface quality‌.

In addition, the Waterjet Cutter Head is also widely used in many fields, such as machining, stone processing, aerospace, military production, automobile manufacturing, and architectural decoration. Its powerful processing capabilities and high precision enable more complex and delicate cutting tasks to be completed in these fields‌.

In general, the Waterjet Cutter Head is an important component in high-pressure waterjet cutting technology. Its flexibility and precision advantages make it have broad application prospects in many fields.

If you need more details,please contact us!
