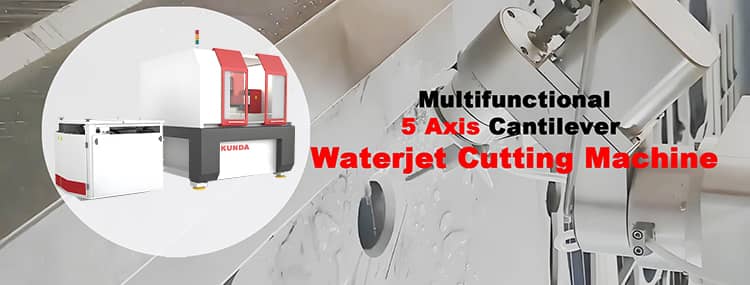

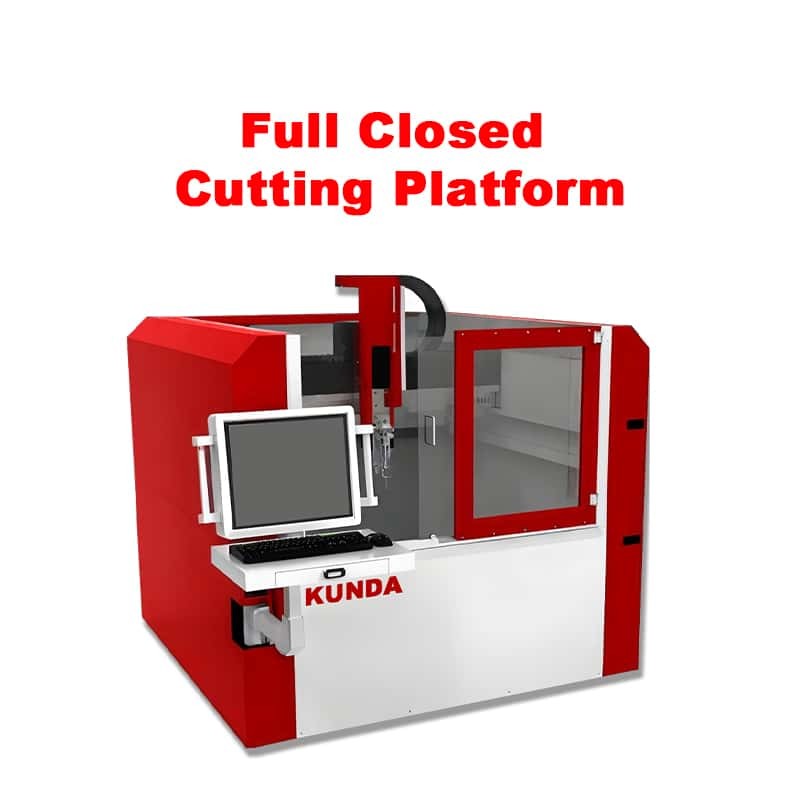

Water Jet Foam Cutting Machine Fully Enclosed Marble High Pressure Water Cutter For Sale

Short Description:

Water Jet Foam Cutting Machine,Small Waterjet Cutting Machine Price,Waterjet Cutting Machine

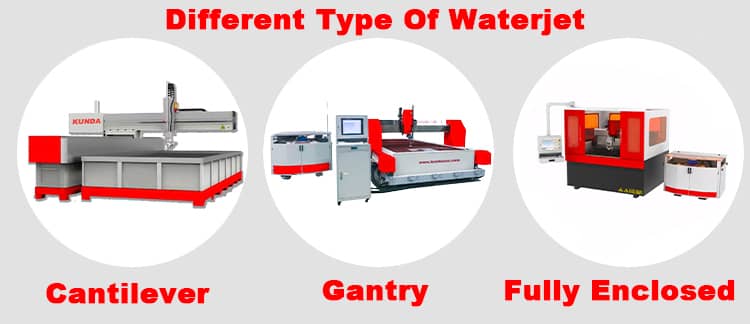

Fully Enclosed
Cutting Size:1000*1000mm/2000*1500mm/3000*2000mm/4000*2000MM
Pump:Jet 50

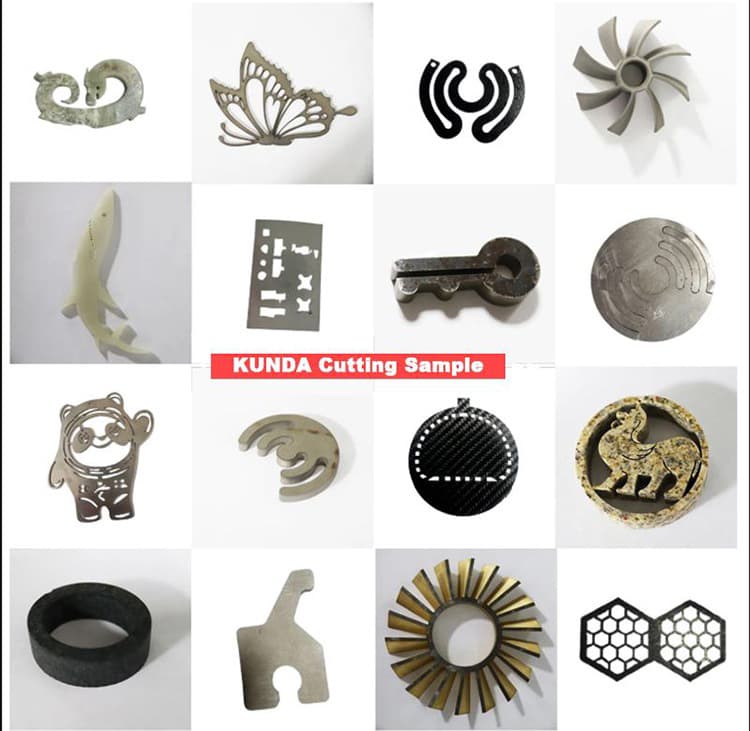

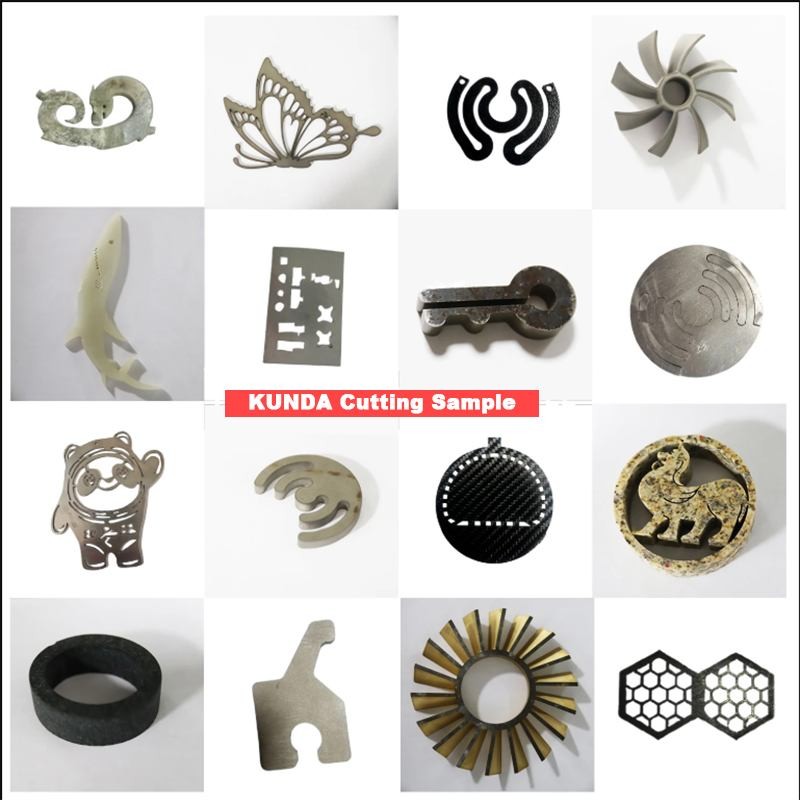

Cutting materials: Metals,Steel,Aluminum,Stainless steel,Copper,Titanium,Marble,Granite,Quartz,Automotive glass,Architectural glass,Ceramics,Tile,Carbon fiber,Fiberglass,Rubber,Plastics

INQUIRY

Details

Waterjet-Cutter-Machine-Price-p.html target='_blank'>Water Jet Foam Cutting Machine Fully Enclosed Marble High Pressure Water Cutter For Sale

KUNDA’s Water Jet Foam Cutting Machine provide an advanced solution for cutting a wide variety of stones, including granite, marble, quartz, and sandstone, with unmatched precision and efficiency. Using high-pressure water, often combined with abrasive garnet, our stone cutting machines can easily slice through even the toughest materials, delivering smooth, clean cuts with minimal material waste. The cold-cutting process eliminates heat-affected zones, ensuring that the stone retains its natural integrity without any thermal damage, warping, or discoloration.

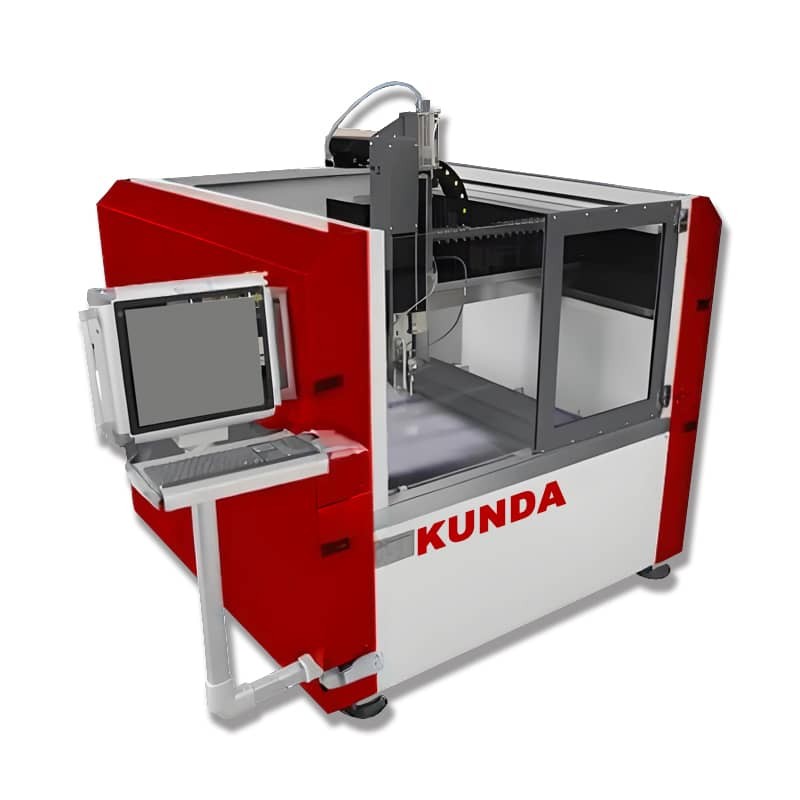

Specification of Cutting Table
Structure	5axis cantiliver Type
Series	AB-2015 5 axis Water Jet
Table Size	2000mmx1500mm
Cutting accuracy	±0.1mm
Re-position accuracy	±0.05mm/m
Cutting speed	11000mm/min
MAX.Cutting Range	2000mmx1500mm
Motor	30kw / 40HP
Certificate	CE ISO
Max swing angle	±10°
Swing angle accuracy	±0.01°

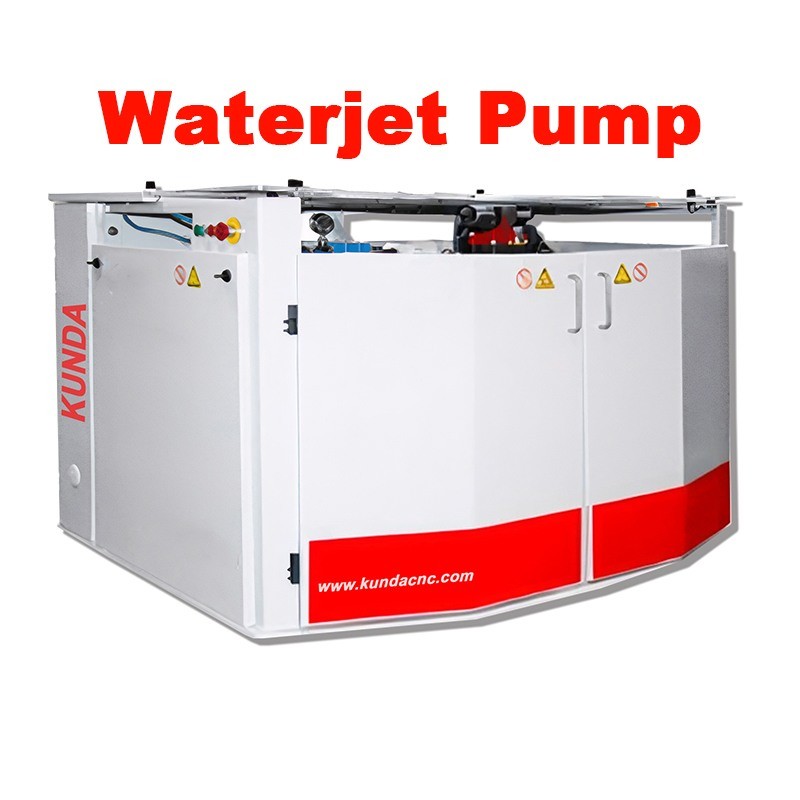

Specification of Cutting Table
Rated Power	30KW/40HP
Max. operating pressure	420MPa/4137bar/60000psi
Continuous working pressure	320MPa-380MPa
Max. discharging rate	3.8L/min
Orifice diameter	0.33mm or others
Nozzle diameter	1.02mm or others
Tank volume	150L
Size	20020mm1260mm1310mm
Weight	1300kg

Equipped with advanced CNC control systems, KUNDA’s Water Jet Foam Cutting Machine offer millimeter-level accuracy, ensuring detailed and precise cuts for intricate designs and custom patterns. Whether you're working with large stone slabs for architectural projects or cutting complex shapes for decorative purposes, our machines provide the versatility and reliability needed for both large-scale production and small, high-precision jobs.

KUNDA’s Water Jet Foam Cutting Machine technology also offers significant advantages in terms of speed and cost-effectiveness. Our Water Jet Foam Cutting Machine can cut through stone quickly and efficiently, reducing production times while maintaining the highest standards of quality. With pressure capabilities up to 94,000 PSI, KUNDA’s systems are powerful enough to handle the toughest stone cutting tasks while offering energy-efficient operation, helping businesses reduce operating costs.
