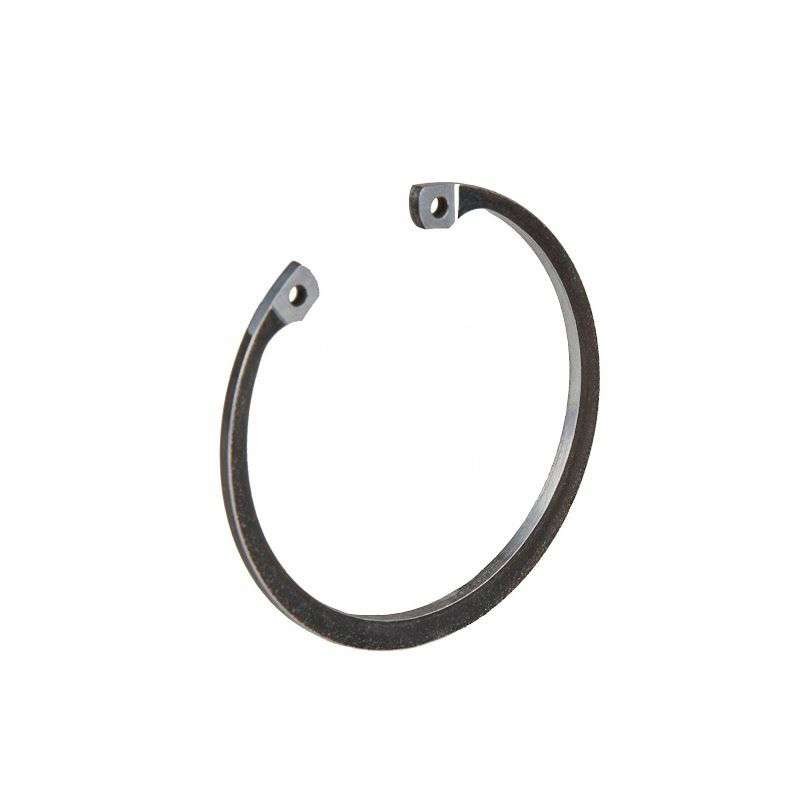

Retaining Ring HT022044/103 Waterjet Parts For BFT

Short Description:

HT022044/103
Retaining ring,Waterjet Parts For BFT
Recommended for: BFT, Maximator, STM
Alternative code (cross code): 1200568, 4100731, 106780
Weight: 0.02 kg.
Working pressure: 4137 bar
Material: Stainless steel
Technical documentation: Intensifier
Element of the high-pressure pump intensifier.
Serves to fix the plunger in the hydraulic piston.

INQUIRY

Details

Retaining Ring HT022044/103 Waterjet Parts For BFT

The BFT Retaining Ring HT022044/103 (also referenced as 4100731, 1200568, 106780, HD400108) is a small, hardened stainless-sTeel ring weighing approximately 24 g, designed to secure the Piston gland in the Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier pump of BFT waterjet systems. By seating in the piston-gland groove, it prevents the gland assembly from loosening or falling off under cyclic pressures up to ~4 137 bar, thereby maintaining Seal integrity and reliable pump performance.

Technical Specifications
Material:Hardened stainless steel
Net Weight:24 g
Position:Piston-gland groove in Hydraulic Intensifier Pump
