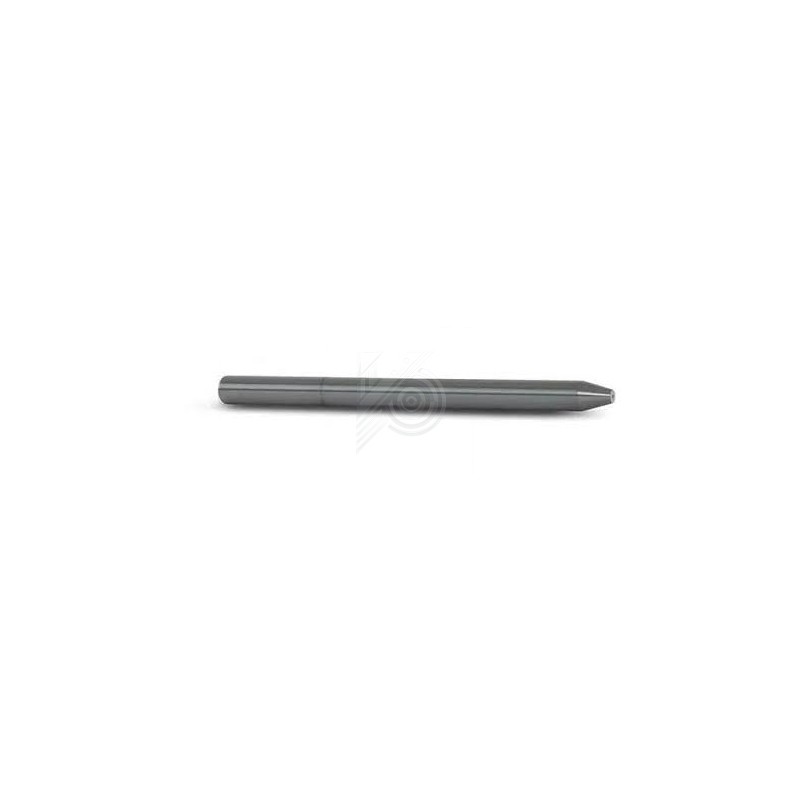

Mixing Tube R100 1-12779-040-40 Abrasive Waterjet Nozzle Parts

Short Description:

Parts:1-12779-040-40
Mixing Tube R100,Abrasive Waterjet Nozzle
7.14x1.02x101.6 mm
Weight: 0.1 kg
Working pressure: up to 6000 bar
Material: Tungsten carbide
Specifications:
Part Number: 1-12779-040-40
Material: ROCTEC 100 composite
Outer Diameter: 0.281 inches (7.14 mm)
Inner Diameter: 0.040 inches (1.02 mm)
Length: 4.00 inches (101.6 mm)
Compatible With: Flow Paser 3 and Paser 4 cutting heads
Replaces Flow Part Numbers: 014214-40-40, 1000001-40-40

INQUIRY

Details

Mixing Tube R100 1-12779-040-40 Abrasive Waterjet Nozzle Parts

The part number 1-12779-040-40 refers to a ROCTEC 100 mixing tube designed for abrasive waterjet cutting systems. This nozzle features a 0.281-inch outer diameter, 0.040-inch inner diameter, and a 4.00-inch length, making it suitable for precision cutting applications. It is compatible with Flow Paser 3 and Paser 4 cutting heads and serves as a direct replacement for Flow part numbers 014214-40-40 and 1000001-40-40.

Specifications:
Part Number: 1-12779-040-40
Material: ROCTEC 100 composite
Outer Diameter: 0.281 inches (7.14 mm)
Inner Diameter: 0.040 inches (1.02 mm)
Length: 4.00 inches (101.6 mm)
Compatible With: Flow Paser 3 and Paser 4 cutting heads
Replaces Flow Part Numbers: 014214-40-40, 1000001-40-40
