Hp Cylinder Seal 05027172 Waterjet Parts

Short Description:

Parts:05027172
Hp Cylinder Seal ,Waterjet Parts

Other references: 103466, 30099, 5027172
Article number: 11015
Net Weight: 31 g

INQUIRY

Details

Hp Cylinder Seal 05027172 Waterjet Parts

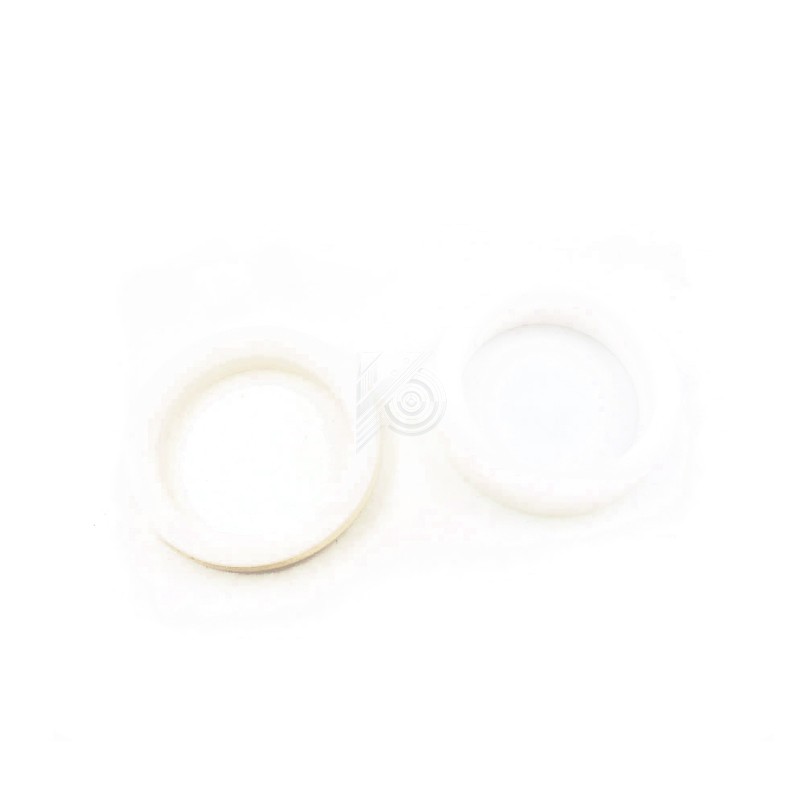

The 05027172 Seal Assembly is the OEM high‑pressure dynamic seal kit for 0.875″ plungers in KMT Streamline‑IV (SL‑IV) Intensifier-Pump-Titanium-Abrasive-Water-Jet-Cutting-Machines-p.html target='_blank'>Intensifier Pumps, rated up to 3,800 bar (55 000 psi). It comprises two precision polymer backup rings designed to maintain leak‑free operation under rapid cycling and extreme pressure. Proper installation (cleaning, warming seals, greasing, torquing) ensures maximum seal life and pump performance.

1. Purpose & Application
Function: Seals the high‑pressure cylinder plunger against 0.875″ plungers to prevent water leaks under UHP conditions.
Pump Series: Streamline‑IV (SL‑IV) 15–60 hp intensifier pumps.
Pressure Rating: Up to 3,800 bar (55 000 psi).

2. Specifications
KMT Part:05027172
Plunger Diameter:0.875 in (22.2 mm)
Seal Type:Dynamic backup rings (2 pcs per assembly)
Material:High‑grade polymer/elastomer
Pressure:3,800 bar (55 000 psi)
Weight:~0.018 lbs (≈8 g)
