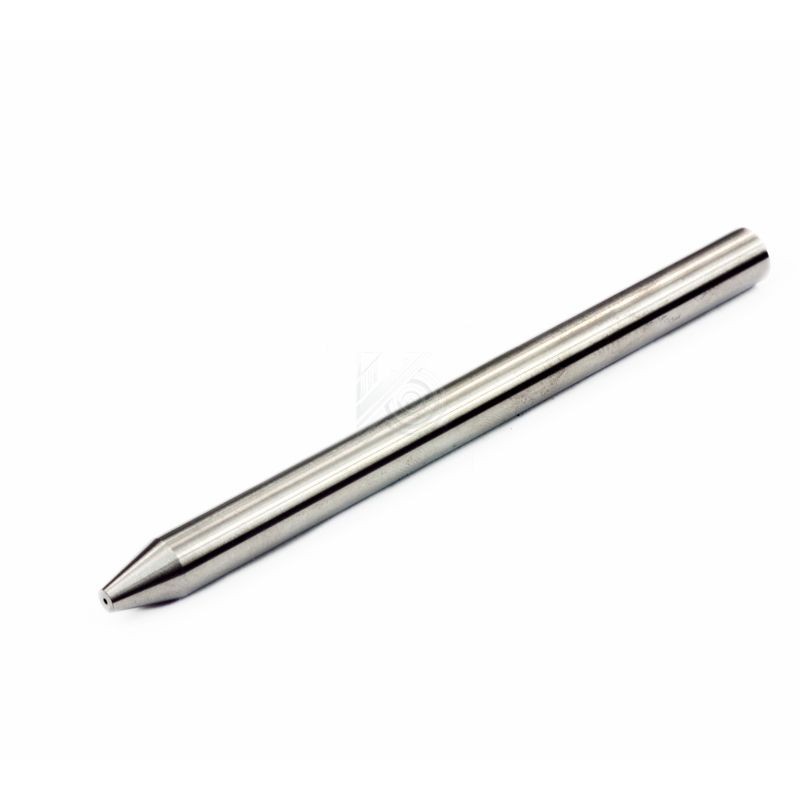

Focusing Mixing Tube 12784-030-40 Techni Waterjet Parts In Stock

Short Description:

12784-030-40,Focusing Mixing Tube,Techni Waterjet Parts
Technical Specifications
Inner Diameter (ID):0.76 mm (.030 in)
Outer Diameter (OD):9.47 mm (.373 in)
Overall Length (OAL):101.6 mm (4.00 in)
Material:Binder‑less tungsten carbide, for superior wear resistance
Operating Pressure:Pressures up to ~6 000 bar

INQUIRY

Details

Focusing Mixing Tube 12784-030-40 Techni Waterjet Parts In Stock

The Techni 12784‑030‑40 is a mixing tube R100 designed for  Waterjet cutting heads, featuring an inner diameter of 0.76 mm, an outer diameter of 9.47 mm, and an overall length of 101.6 mm to optimize abrasive entrainment and jet coherence. It is recommended as a direct replacement for Waterjet systems to ensure consistent, high‑quality cutting performance under abrasive conditions.

Technical Specifications
Inner Diameter (ID):0.76 mm (.030 in)
Outer Diameter (OD):9.47 mm (.373 in)
Overall Length (OAL):101.6 mm (4.00 in)
Material:Binder‑less tungsten carbide, for superior wear resistance
Operating Pressure:Pressures up to ~6 000 bar
