Focusing Mixing Tube 11040-040-30 Techni Waterjet Parts In Stock
Focusing Mixing Tube 11040-040-30 Techni Waterjet Parts In Stock

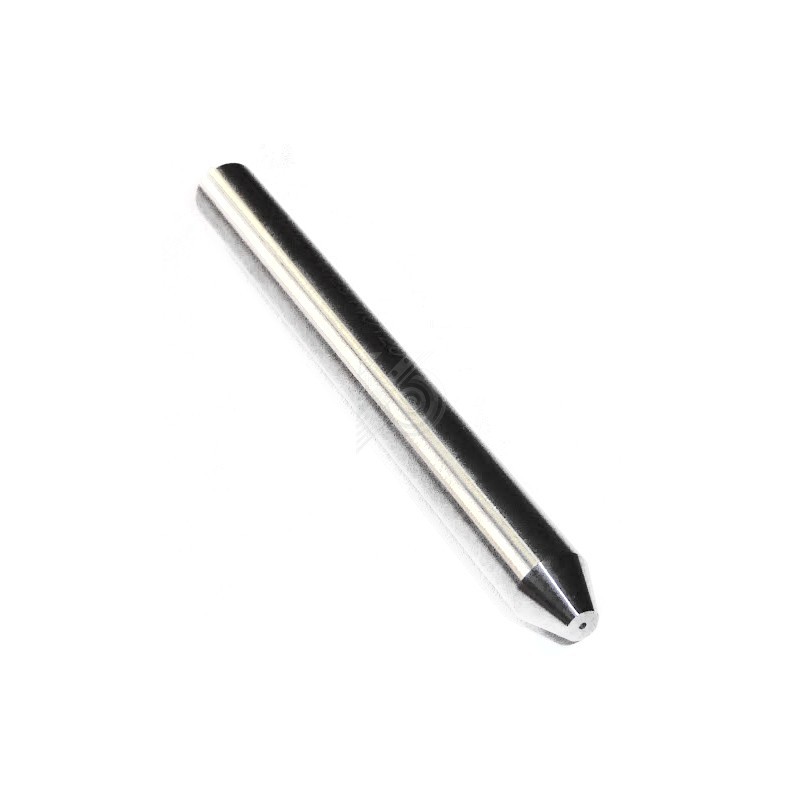

The 11040-040-30 focusing/mixing tube is a R100 venturi-style abrasive mixing nozzle. It features an inner diameter (ID) of 1.02 mm (.040 in), an outer diameter (OD) of 7.62 mm (.300 in), and an overall length (OAL) of 76.2 mm (3.00 in), optimized to create the Venturi effect that entrains abrasive into the high-pressure water stream. Its binder-less tungsten carbide construction offers exceptional wear resistance for pressures up to 6 000 bar (87 000 psi).
Technical Specifications
Part Number:11040-040-30 / 1-12781-040-30
Inner Diameter (ID):1.02 mm (.040 in)
Outer Diameter (OD):7.62 mm (.300 in)
Overall Length (OAL):76.2 mm (3.00 in)
Material:Binder-less tungsten carbide (ROCTEC™ 100)
Operating Pressure:Up to 6 000 bar (87 000 psi)
