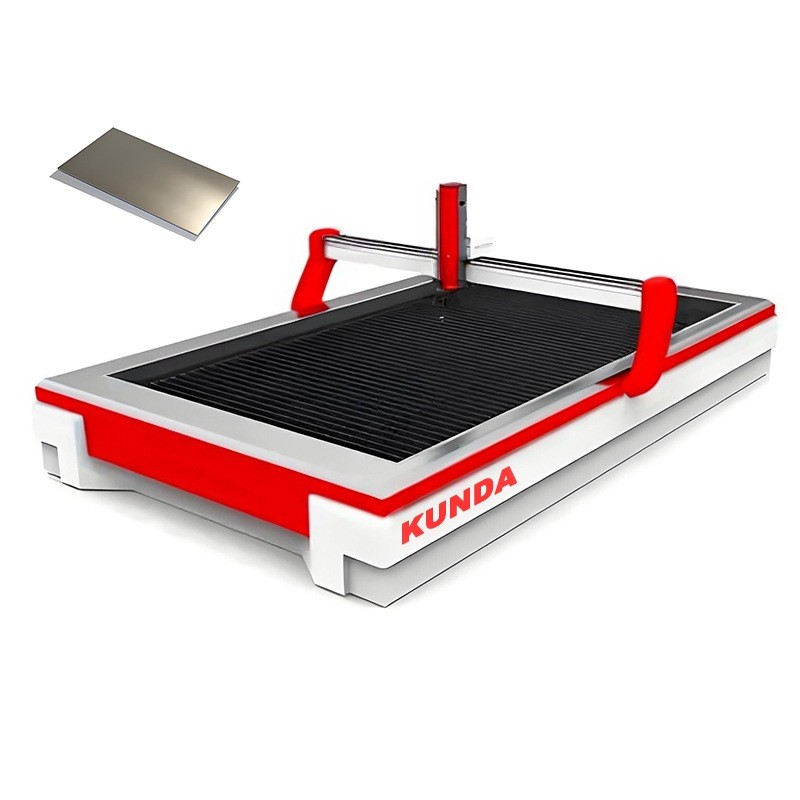

Custom Waterjet Cutting Machine Stainless Steel Ac5 Axis Water Jet Cutter
Waterjet-Cutting-Machine-Stainless-Steel-Ac5-Axis-Water-Jet-Cutter-p.html target='_blank'>Custom Waterjet Cutting Machine Stainless Steel Ac5 Axis Water Jet Cutter
The Hydro Cutting Machine is a powerful, high-precision cutting solution that uses high-pressure water to slice through a variety of materials with exceptional accuracy. Ideal for industries like automotive, aerospace, manufacturing, and custom fabrication, this machine leverages advanced hydro cutting technology to achieve clean cuts without generating heat or causing material distortion. Whether working with metals, stone, glass, composites, or even delicate materials like rubber and foam, the Hydro Cutting Machine delivers reliable, consistent results.
Model
KD1015
KD2015
KD3015
KD3020
KD4020
Structure
Garnet
Cutting Table Size
1200*1700mm
2200*1700mm
3200*1700mm
3200*2200mm
4200*2200mm
Stroke
X axis
1000mm
2000mm
3000mm
3000mm
4000mm
Y axis
1500mm
1500mm
1500mm
2000mm
2000mm
Z axis
130mm
130mm
130mm
130mm
130mm
Accuracy
Cutting
±0.1mm
Repeatability
±0.05mm
Traverse Speed
6000-15000mm/min
Power Supply
220v/380v/415v,50/60Hz
Ideal for industries such as construction, architecture, monument carving, and custom stone fabrication, the Custom WaterJet Cutting Machine is perfect for creating intricate designs, detailed patterns, and high-quality finishes on granite slabs. Whether you're cutting countertops, sculptures, tiles, or custom stonework, this machine ensures high precision and accuracy, even on thick or complex stone materials. The advanced CNC control system allows operators to easily program cuts and produce intricate shapes, ensuring repeatability and efficiency.
Built for durability and long-term use, the Custom Waterjet Cutting Machine features a robust, industrial-grade design capable of withstanding the demands of heavy-duty operations. Its user-friendly interface allows for quick setup and easy operation, reducing downtime and increasing productivity. The low maintenance and energy-efficient operation make this machine a cost-effective solution for stone cutting businesses.
For companies looking to enhance their stone cutting capabilities, the Custom Waterjet Cutting Machine offers an ideal combination of precision, versatility, and reliability. This machine is designed to improve workflow, reduce waste, and deliver high-quality results for all types of granite cutting applications, ensuring superior performance and maximum efficiency.
Material
Thickness
Orifice
320Mpa
380Mpa
420Mpa
Aluminum
6mm
0.33mm
400-520mm/min
460-590mm/min
500-580mm/min
13mm
300-380mm/min
350-420mm/min
400-510mm/min
19mm
220-280mm/min
260-380mm/min
300-420mm/min
Stainless Steel
6mm
200-260mm/min
240-310mm/min
260-350mm/min
13mm
80-120mm/min
100-150mm/min
125-180mm/min
20mm
50-65mm/min
70-90mm/min
100-120mm/min
30mm
15-25mm/min
30-40mm/min
40-50mm/min
Glass
6mm
1200-1400mm/min
1600-1900mm/min
2100-2300mm/min
10mm
600-700mm/min
700-800mm/min
820-900mm/min
20mm
330-400mm/min
400-500mm/min
600-800mm/min
Marble
10mm
1000-1200mm/min
1200-1400mm/min
1350-1550mm/min
20mm
400-500mm/min
600-700mm/min
750-850mm/min
30mm
220-300mm/min
310-380mm/min
400-480mm/min
50mm
70-90mm/min
100-120mm/min
130-150mm/min
Ceramic Tile
15mm
1200-1400mm/min
1400-1500mm/min
1600-1800mm/min
Bronze
5mm
500-600mm/min
700-800mm/min
900-1000mm/min
15mm
190-220mm/min
220-300mm/min
330-400mm/min
30mm
80-100mm/min
100-120mm/min
120-150mm/min
