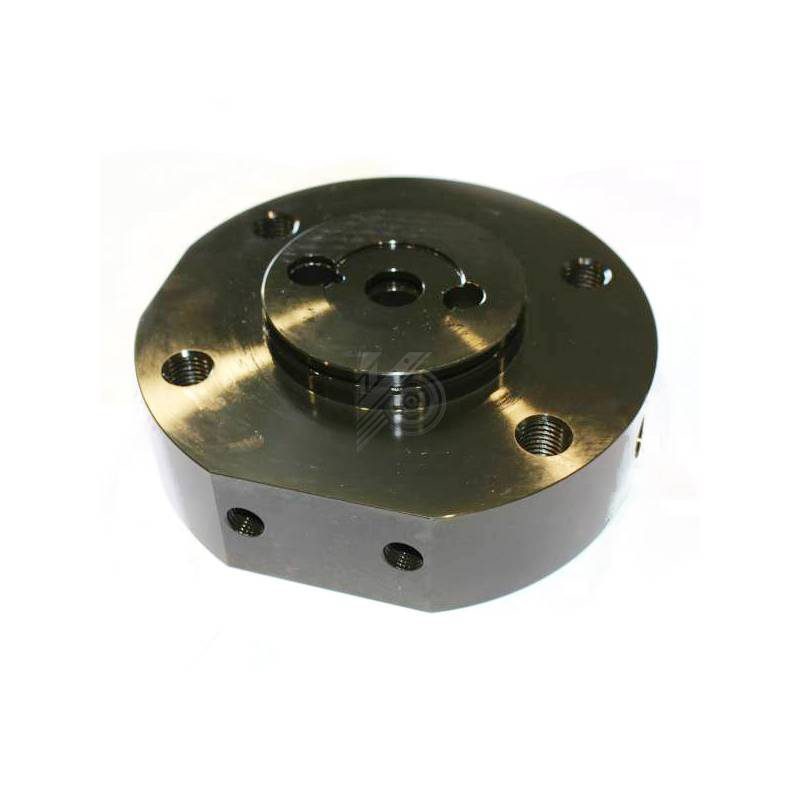

Connection Flange HT022008/172 BFT Abrasive Waterjet Parts In Stock

Short Description:

HT022008/172,Connection Flange,Abrasive Waterjet Parts
Recommended for: BFT, BHDT, Maximator, STM
Alternative code (cross code): 106568
Weight: 13.2 kg.
Working pressure: 4137 bar
Material: Stainless steel
Technical documentation: Intensifier
Where is it located (in which unit, in which part of the equipment):
Element of the high-pressure pump intensifier.
What is the function (what is it used for, what role):
Serves to fix the hydraulic cylinder.

INQUIRY

Details

172 BFT Abrasive Waterjet Parts In Stock

The BFT Connection Flange HT022008/172 is an OEM component in BFT hydraulic‐drive (Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier) assemblies that secures the cylinder end Cover to the intensifier block and provides the inlet/outlet interface for high-pressure fluid and Sensors. It features machine threads on one side and a smooth bore on the other, accommodating the O-Ring, Retaining Ring, anti-wear belt, oil Seal, cylinder gland, and sensor housed in the end cover.

Specifications
Part Number:HT022008/172
Article Number:10179
Alternate Part No.:5100012
Thread Configuration:Threads one side; smooth bore opposite side
Position:Interface between cylinder end cover & intensifier body
Material:Precision-machined alloy or stainless sTeel (unspecified)
Service Interval:Inspect/replace every full intensifier rebuild (≈6 000–8 000 hrs)
