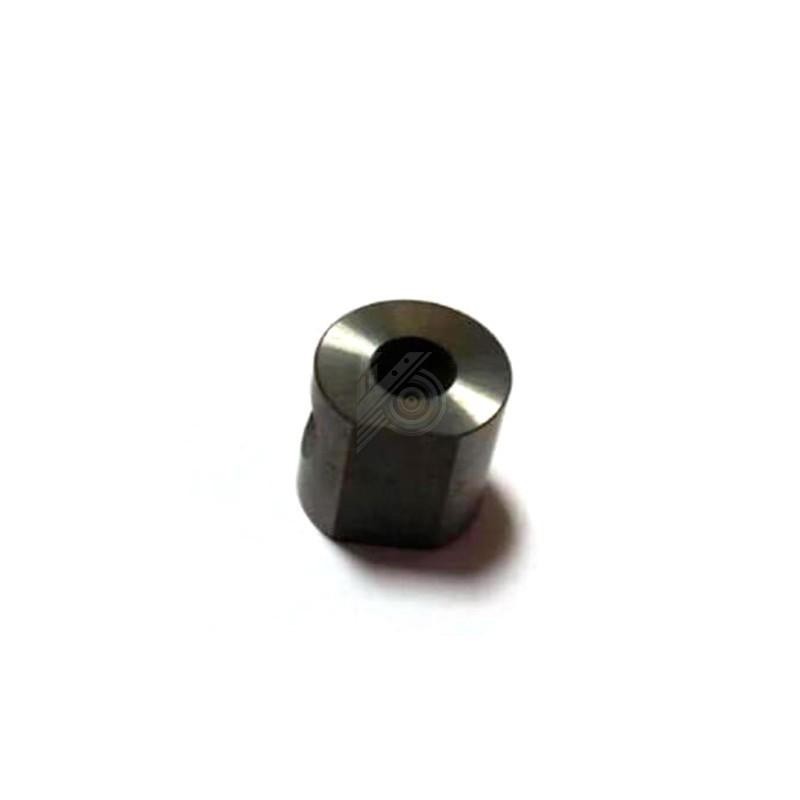

Bushing TJ006071/555 BFT Waterjet Parts For Sale

Short Description:

TJ006071/555
Bushing,BFT Waterjet Parts
Recommended for: BFT, Maximator, STM
Alternative code (cross code): WS1777, 106336
Weight: 0.018 kg.
Working pressure: 4137 bar
Material: Carbide alloy
Where is it located (in which unit, in which part of the equipment):

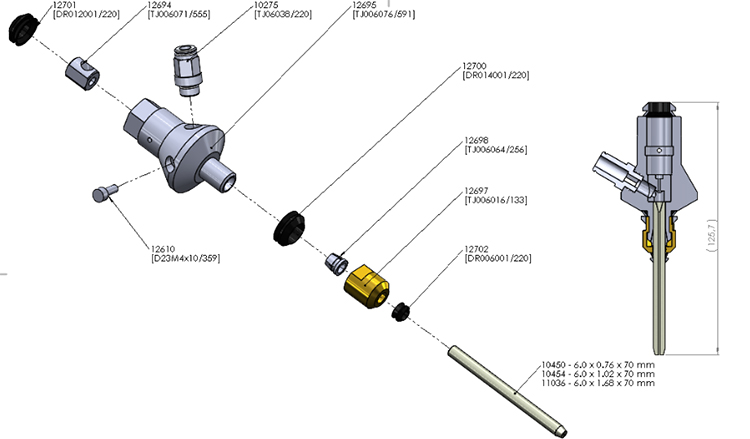

Element of the cutting head.
What is the function (what is it for, what role):
Serves to mix water and abrasive.

INQUIRY

Details

Bushing TJ006071/555 BFT Waterjet Parts For Sale

The BFT TJ006071/555 is a wear insert used in BFT's abrasive Waterjet Cutting Heads. This component is crucial for protecting the mixing chamber from the erosive effects of high-pressure water and abrasive materials, thereby extending the lifespan of the cutting head assembly.

Specifications
Part Number: TJ006071/555
Type: Wear Insert
Material: Typically made from durable materials such as carbide or hardened steel to withstand abrasive wear
Function: Protects the mixing chamber from erosion caused by high-pressure water and abrasive materials
Compatibility: Designed for use in BFT Twinjet abrasive cutting heads
