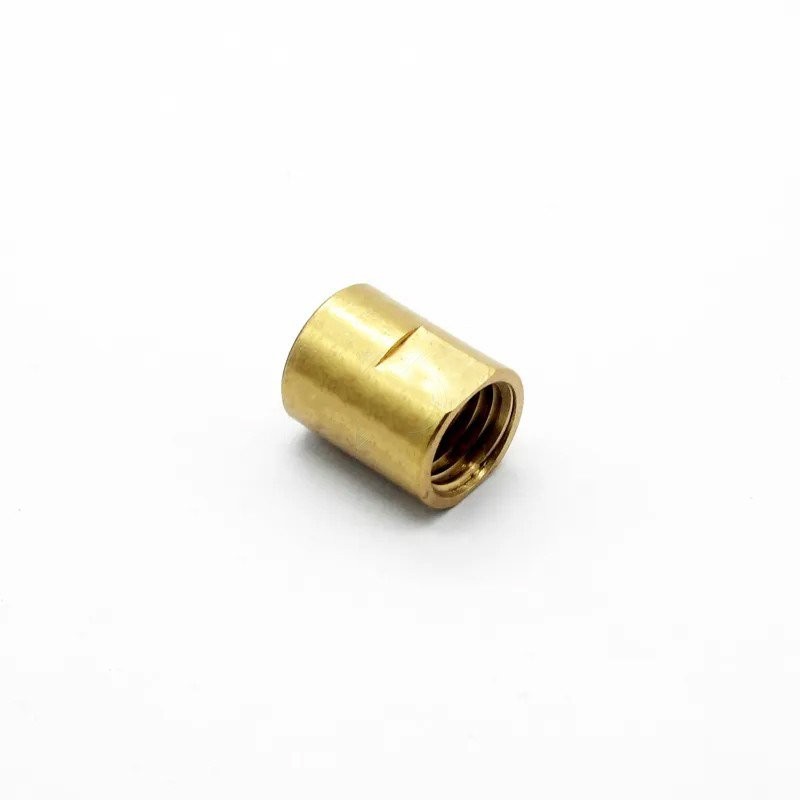

Adjusting Nut WJ070027/133 BFT Water Jet Parts

Short Description:

Recommended for: BFT, BHDT, Maximator, STM
Alternative code (cross code): 4100147
Weight: 0.001 kg.
Working pressure: 4137 bar
Material: Brass
Technical documentation: Relief valve

Where is it located (in which unit, in which part of the equipment):
Element of the high-pressure pump relief valve.
What is the function (what is it used for, what role):
Serves to fix the collet clamp.
WJ070027/133,Adjusting Nut,BFT Water Jet Parts

INQUIRY

Details

Adjusting Nut WJ070027/133 BFT Water Jet Parts

The BFT Adjusting Nut WJ070027/133 is a precision-machined component used in BFT Abrasive Waterjet cutting heads—particularly the 3D tilting head assemblies—to fine-tune the compression and alignment of the Mixing Chamber and Focusing Tube. Manufactured from hardened stainless sTeel (or anodized aluminum in some OEM variants), this nut interfaces with the cutting-head housing via fine threads, providing micrometer-scale adjustment of the jet focus position. Proper use of the WJ070027/133 ensures optimal cutting accuracy, uniform kerf width, and extended life of wear parts (Orifice, mixing chamber, focusing tube). Below is a detailed overview of its features, specifications, installation, and sourcing.

Technical Specifications
Part Number：WJ070027/133
Material：Hardened stainless steel (17–4 PH) or anodized aluminum alloy
Thread Size & Pitch：M22 × 1.5 mm fine-pitch (standard BFT cutting-head thread)
Finish：Passivated (steel) or Type II anodized (aluminum)
Weight：~0.015 kg
Operating Temperature：–20 °C to +200 °C
Corrosion Resistance：≥ 500 h salt-spray per ASTM B117 (steel grade)
Adjustment Range：±2 mm axial travel
