3/8 Coning and Threading Tool Set 1-15494 Good Quality High Pressure Waterjet Tube Parts
3/8 Coning and Threading Tool Set 1-15494 Good Quality High Pressure Waterjet Tube Parts
The AccuStream part 1-15494 is a 3/8″ Coning & Threading Tool Set for ultra-high-pressure waterjet tubing, designed to chamfer and thread 3/8″ OD tubing (up to 60 000 psi) in the field. It replaces Flow part 14536-60-6, includes a left-hand threading die, collet, coning cutter, guide bushing, and coning/threading oil.
Specifications
Tube OD：3/8″ (≈ 9.53 mm)
Thread Size：3/8-24 UNF, left-hand
Materials：Hardened tool-steel die & cutter; alloy collet
Operating Temp.：–20 °C to +80 °C
Kit Weight：≈ 2.5 lbs (1.13 kg)

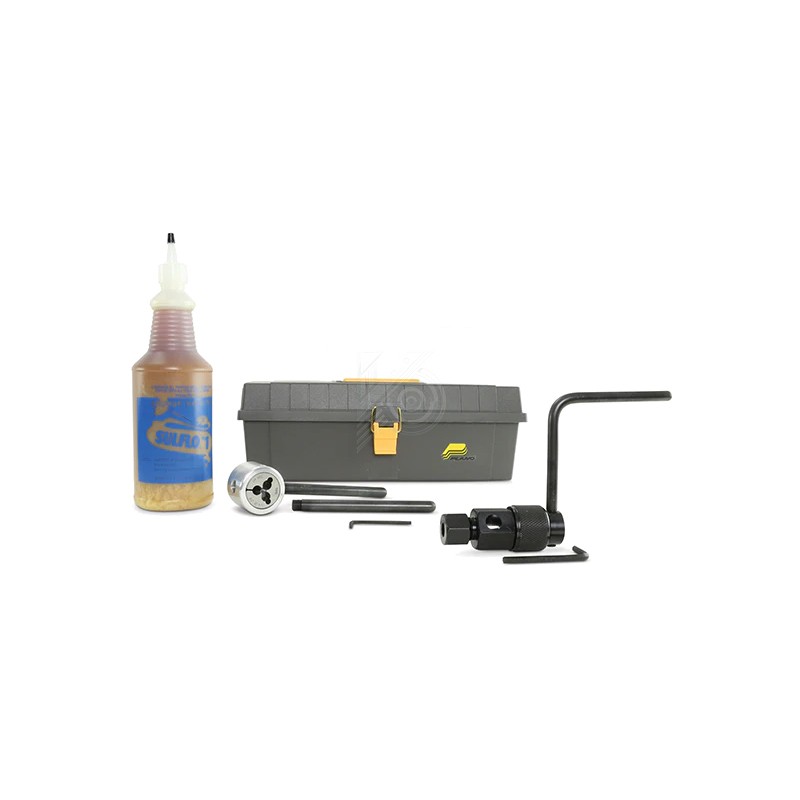

Kit Contents
Threading Die – 3/8-24 UNF, left-hand
Coning Collet – holds 3/8″ OD tubing for chamfering
Coning Cutter – forms precise 37° bevel on tube ends
Guide Bushing – ensures concentric alignment of cutter and die
Coning & Threading Oil – lubrication for smooth cuts
Instruction Sheet – setup and safety guidelines
If you need other High pressure pipe fittings,Please contact us!
